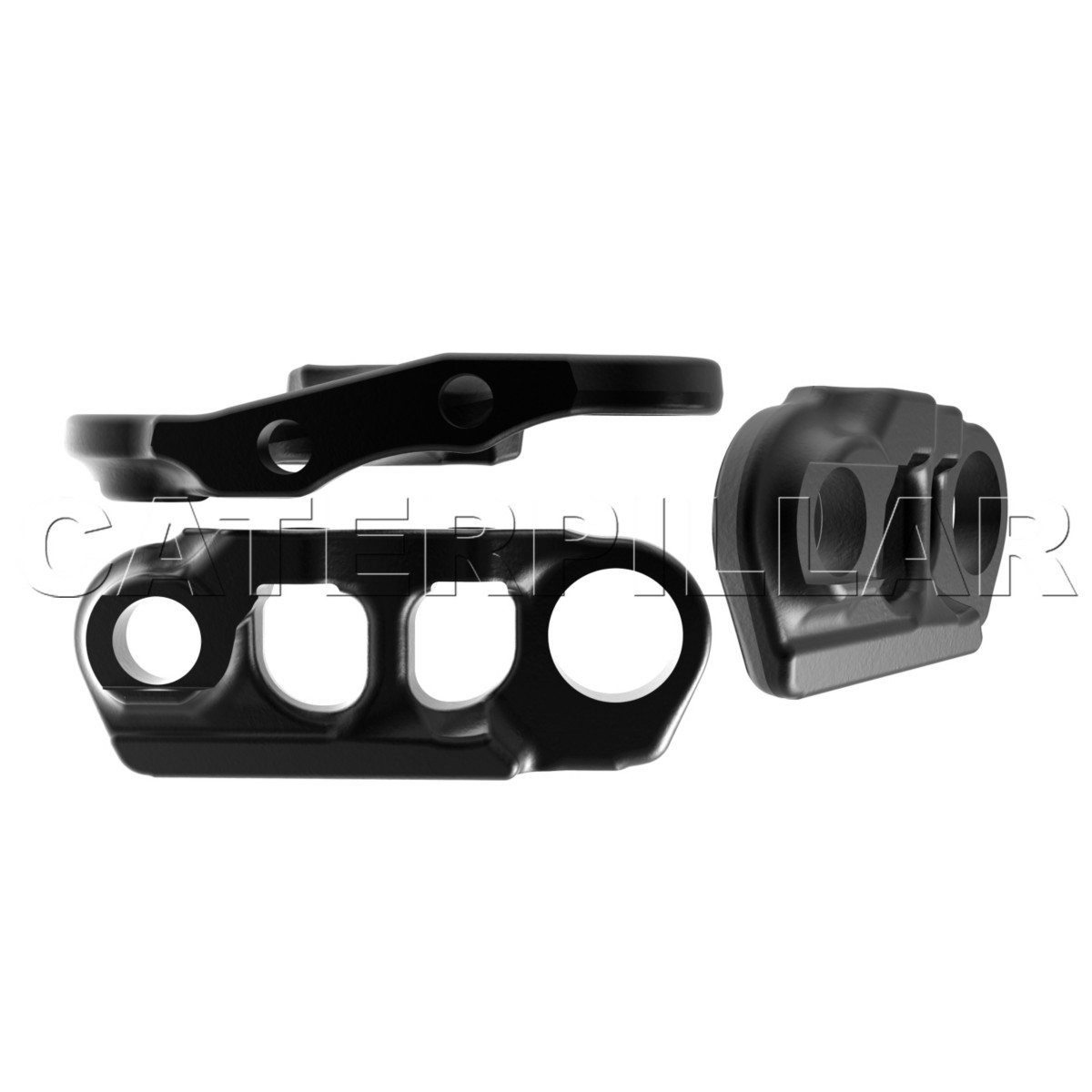

8E-8586 Track Link
Cat® Left Master Bushing Track Link is used to connect the track shoes and ensure proper operation and function in the undercarriage system.
Description
The track master link makes it easy to remove and install the track without a master pin and master bushing.
Specifications
| UC System – Designed For | Heavy Duty |
|---|---|
| Main Bolt Thread | M20 |
| Master Link Type | Slip Fit Master |
| Pin End Bar Thickness | 35 mm (1.378 in) |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Bushing End Bar Thickness | 23 mm (0.906 in) |
| Track Pin Bore Diameter | 36.28 mm (1.428 in) |
| Rail to Pin Boss Outside Diameter | 32.9 mm (1.295 in) |
| Track Link Crown Height | 0 mm (0 in) |
| Pin Retention System | Press Fit |
| Hole to Rail | 60 mm (2.362 in) |
| Steel Grade | 1E0669 |
| Bushing Bore Diameter | 58.45 mm (2.301 in) |
| Overall Height | 106 mm (4.173 in) |
| UC Compatible With | Heavy Duty |
| Bolt Size | 21 mm (21 in) |
| Track Pitch | 190 mm (7.48 in) |
| Track Shoe Width | 460 mm |
| Material | Boron Steel |
Compatible Equipment
- Motor Graders: 316F
- Excavators: 320 GC, 320D3, 323, 320D3 GC, 320, 320C, 324D L, 320D L, 318D2 L, 323D L, 320D2 L, 320D RR, 329D L, 315D L, 320D2 GC, 320E, 320B, 330D2, 323D, 324D, 315C, 320D FM, 325D, 329E, 326D L, 318D2, 320C L, 345D L, 345C L, 311B, 320D GC, 318D L, 323D2 L, 320D2, 320D, 326D2, 326D2 L
Additional information
| Machine Model | 311B, 315C, 315D L, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323, 323D, 323D L, 323D2 L, 324D, 324D L, 325D, 326D L, 326D2, 326D2 L, 329D L, 329E, 330D2, 345C L, 345D L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
