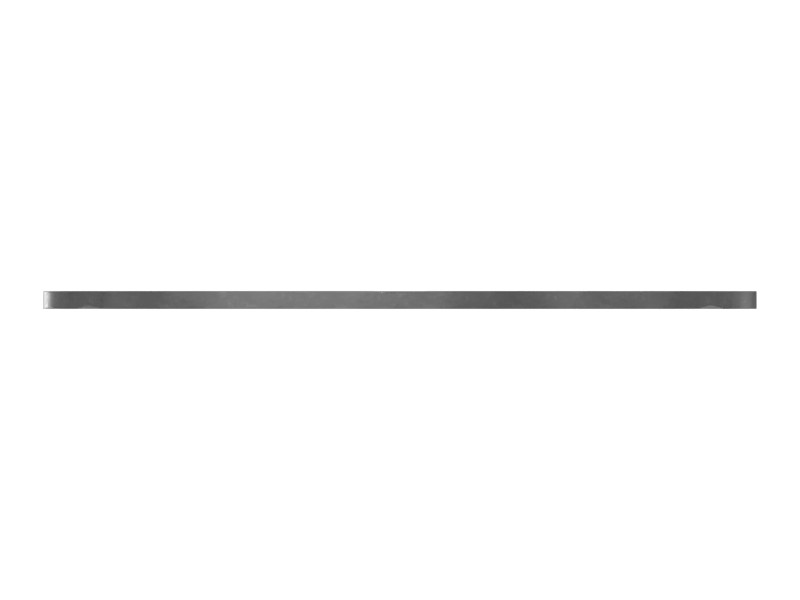

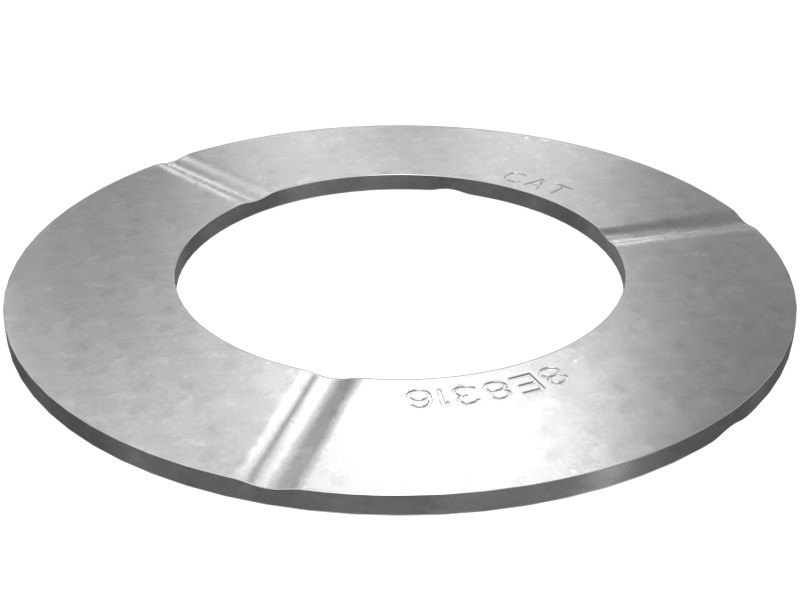

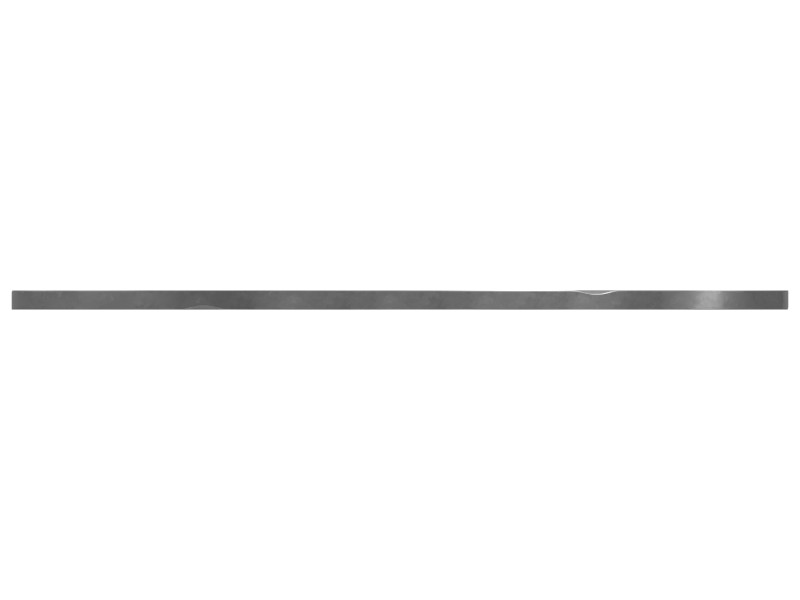

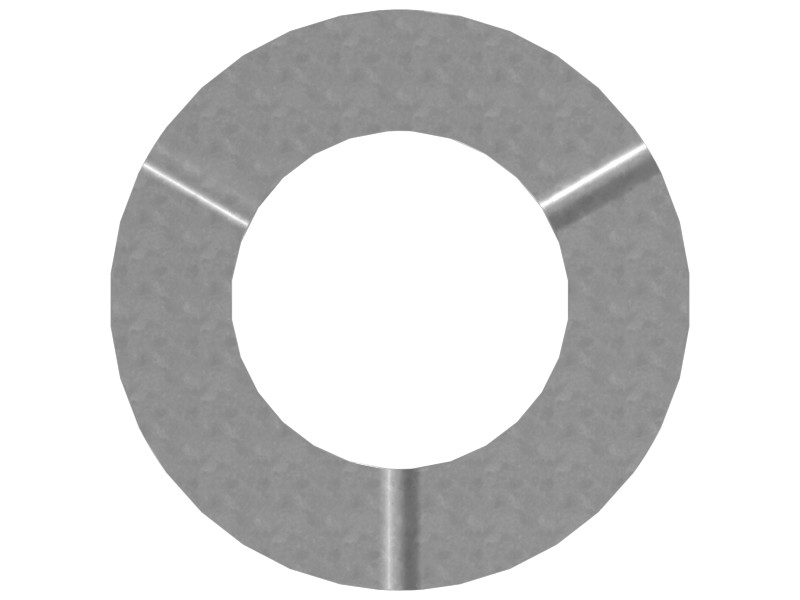

8E-8316 1.98 mm Thick Thrust Disc
Cat® plastic thrust disc withstands a minimum breaking load of 115.60 N on the planetary transmission weld line
Description
Service part for the transmission planetary assembly.
Features
- Plastic thrust washer
- 3 grooves, equally spaced, both sides
- Resistant to fuel and lubricants
- Withstands high pressure and high speed
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Plastic |
|---|---|
| Thickness | 1.98 mm |
| Outside Diameter | 81.8 mm |
| Inside Diameter | 47.7 mm |
Compatible Equipment
- Generator Sets: 3512B, C4.4
- Track Loaders: 982, 993, 826H, 826K, 990K, 824G, 824C, 826G, 834H, 994K, 995, 992
- Compactors: C9.3B, 834K, 824K, 825K
- Dozers: D10R, D11R, D10T2, D11, D11N, D11T, D10T, D10N, D9R, D9N, D8L, D10
- Excavators: 3512C, 3508B
- Wheel Loaders: 986K, 982M, 992K, 980M
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 3508B, 3512B, 3512C, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 834K, 980M, 982, 982M, 986K, 990K, 992, 992K, 993, 994K, 995, C4.4, C9.3B, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D8L, D9N, D9R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Compactors, Generator Sets |
| Part Source | Genuine OEM |
