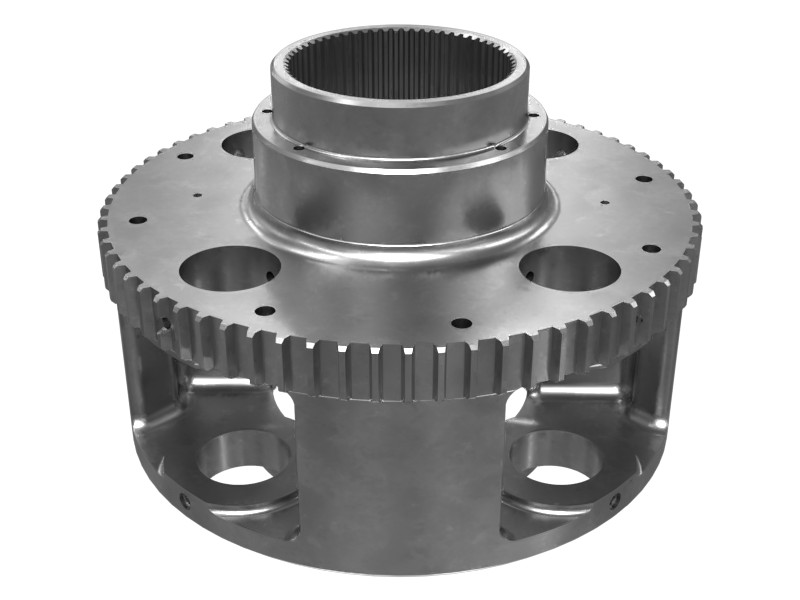

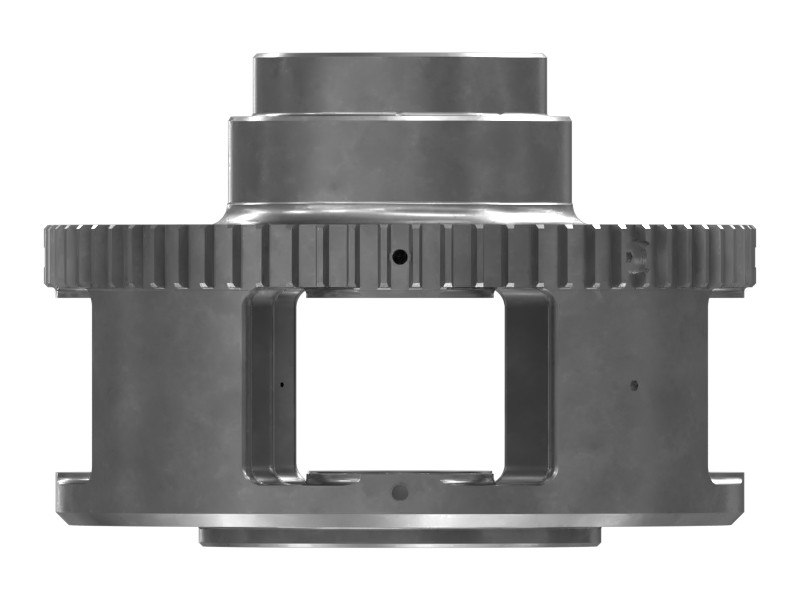

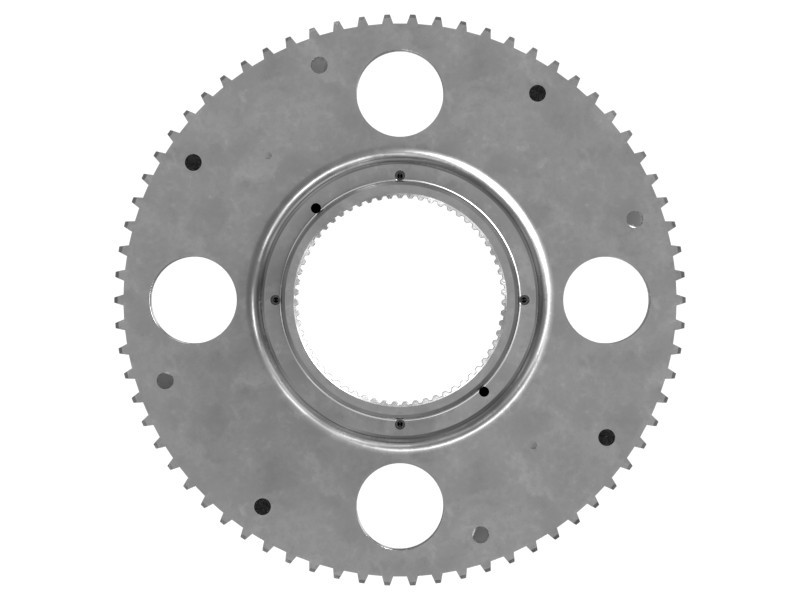

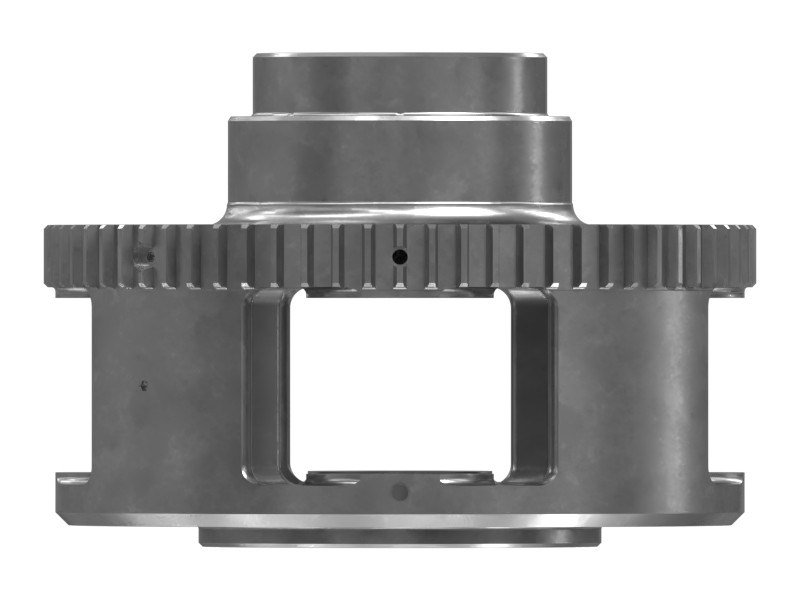

8E-8170 Planetary Gear Carrier Group
Cat® Planetary Carrier Group
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent directional shifts. Cat designs and builds transmission and final drive components with these demands in mind, ultimately improving the durability and performance of the powertrain over the life of the machine. The Cat planetary gear carrier is an important powertrain component that connects the planetary gears with the sun gear in a planetary gear system.
Features
- Planetary gear carrier with plugs
- Cast Iron Carrier
- Number of Internal Spline Teeth: 63
- Number of External Spline Teeth: 70
Applications
Service parts for transmissions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Cast Iron |
|---|---|
| Outside Diameter | 276.11 mm (10.87 in) |
| Inside Diameter | 98.89 mm (3.893 in) |
| Overall Length | 191 mm (7.519 in) |
Compatible Equipment
- Excavators: 3516E
- Off-Highway Trucks: 785, 789D, 793F, 793D, 789, 785D, 793
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
