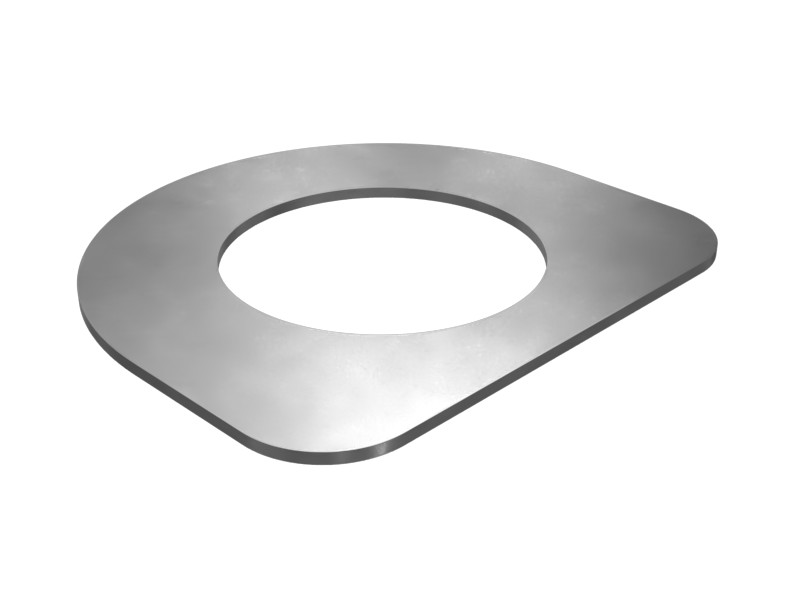

8E-5701 0.8 mm Thick Shim
Cat® 0.8 mm thick spring steel shim used in dozer blade tilt braces
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The shim is designed to provide a tight fit between the bearing cap and the arm, and to adjust the alignment of joints or connections in the dozer tilt brace. Shim thickness varies with the weight and size of the equipment to be supported. Shims are usually drilled or punched to accommodate the bolts, screws, or other fasteners used to secure the equipment. Some shims can also be welded to the equipment for added stability and support.
Features
- Eliminates gaps or looseness between parts and ensures a secure fit
- Manufactured to exact specifications for rugged durability, reliable performance and outstanding productivity
Applications
The shim is used in the dozer blade tilt brace to achieve precise alignment and improve stability.
Specifications
| Material Description | Spring Steel |
|---|---|
| Inside Diameter | 22 mm (0.87 in) |
| Length | 40 mm (1.5748 in) |
| Width | 36 mm (1.417 in) |
| Material | Spring Steel |
| Outside Diameter | 40 mm (1.57 in) |

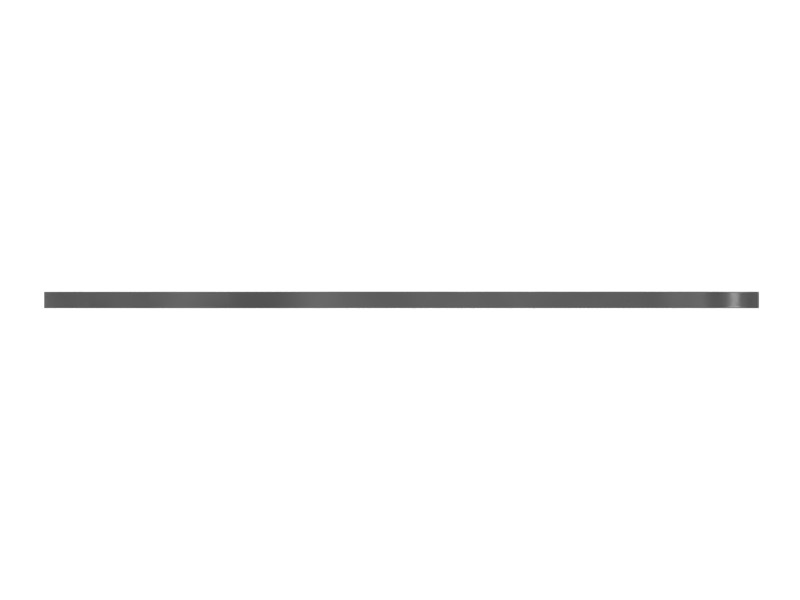

| Thickness | 0.8 mm (0.03 in) |
| Weight | 0.01 kg (0.01 lb) |
Compatible Equipment
- Compactors: 815
- Dozers: D6R, D6R II, D7E, D5H, D6R III, D7H, D7R II, D6T, D6N, D7R, D6M, D6T LGP, D6R XL, D6R LGP
