Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Wetted parts
- Meets or exceeds industry-standard part performance and provides a leak-free connection

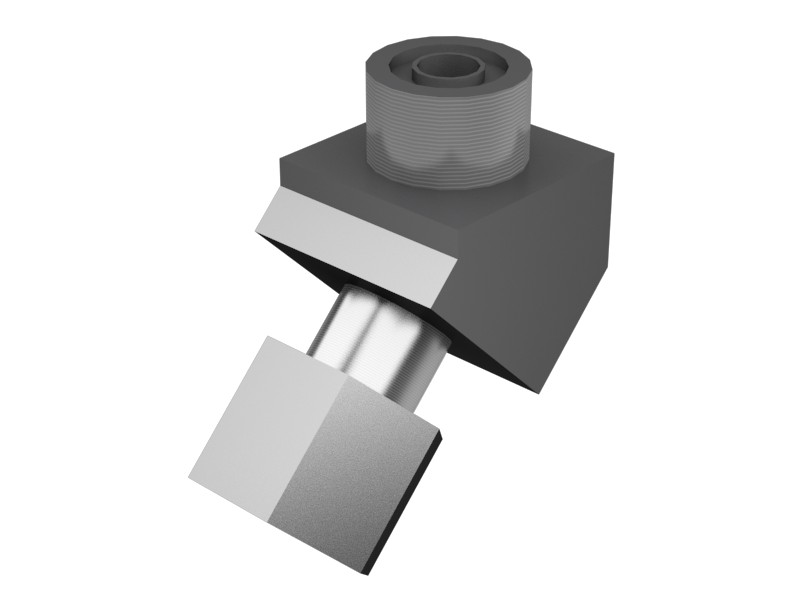

- The image provided is for reference only. The adapter construction may differ slightly from the illustration, but this part is interchangeable with the OEM part.
Applications
The adapter is designed to connect fluid-carrying hoses and rigid tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Material | Carbon Steel |
| Material Description | Plated Steel |
| Transmission and Hydraulic Oil Compatible Seals | 6V-8397 (11/16-16) |
| Oil and Fuel Compatible Seals | 228-7089 (11/16-16) |
| Coolant and DEF Compatible Seals | 6D-7128 (11/16-16) |
Compatible Equipment
- Generator Sets: C4.4, C9, 3516C
- Track Loaders: 826K, 982, 990K, 972, 816F
- Cold Planers: PM622, PM620, PL83, SE50 VT, PL87, TH255C, PL61, PM-200, SE60 VT XW
- Compactors: CS-563E, 824K, 825K, CC2.7 GC, 834K, 814, CB-64B, CB-66B, CB16, CB2.5 GC, CB2.7 GC, CB-44B, CB2.7, CB2.9, CB2.5, 816, 815, CB15, CB13, CB10
- Engines: C32, C175-16
- Excavators: 336D2, 390D L, 349D2 L, 305, 336D, 349D, 329D, 320D, 308D, 303C CR, 303.5E2 CR, 349D2, 320D2, 305E2 CR, 330D L, 336D2 L, 657G, 349D L, 385B, 340D2 L, 6015B, 365B, 621K, 345C, 385C L, 6020B, 345D L, M325D L MH, 340, 320D FM, 301.6, 301.8, 6040, 305 CR, 320D3 GC, 313D2, 120 GC, 311C, 330C L, 312D L, 336D L, 320C, 336F, 336E L, 313D2-GC, 330C, 320B, 320E, 325C, 325D L, 325C L, 637G, 6015, 6030, 315D L, 314C, 330D, 336F L XE, 320D L, 314D LCR, 312E L, 320D2 L, 323D2 L, 311D LRR, 365B L, 6060, 312C, 315C, 312D2, 336F L, 312C L, 314D CR, 312D, 313D2 GC, 313F LGC, 312E, 336E, 336E LH, 323D L, 336E H, 313F L, 336D2 GC, 329D L, 312D2 L, 313D, 312D2 GC, 336F LN, 325B L, 385C, 345C L, 365C, 345D, 365C L, 3508B, 325D, 315F LCR, 336D2 XE, 345 GC, 336E LN, 345B, 340D L, SE60 V XW, 320C L, 312F, 390D, 323D
- Asphalt Pavers: AP655F, AP-600D, AP655F L
- Skid Steer Loaders: 272D3, 246D3, 272D3 XE, 299D3 XE, 262D3, 289D3, 262D, 246D
- Motor Graders: 16M, 140 GC, 14M, 16, 316F, 120, 14, 16M3, 18
- Wheel Excavators: M315, M315D, M320D2, MD6310, MD6250, MD6200, M322D, M320, M317D2, M315D2, M315GC, IT14G
- Dozers: D6N, D6R XL, D6T LGP, D8R, D8T, D6R III, D9T, D7R II, D5N, D7R, D9R, D9N, D7E, D3G, D3K2 LGP, D1, D8, D9, D10R, D6R, D4G, D8N, D10T, D11R, D5G, D5K2 XL
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 302CR, 301.7CR, 301.5, 308, 303.5C, 303.5D, 307, 307D, 305.5E2, 305E2, 303.5E, 306, 307C, 306.5
- Wheel Loaders: 972L, 950H, 972G, 966F, 928G, 980G, 980H, 966L, 926M, 980, 966, 938M, M314, 962G, 950G, 950L, 938K, 924GZ, 980L, 910, 988H, 986H, 988G, 950, 834, 924K, 962L, R2900 XE, 950 GC, 836, R1700K, R1700G, 990H
- Off-Highway Trucks: 796 AC, 740, 793F, 740B, 797F, 785, 798 AC, 793, 777, 793D, 789D, 785D, 730, 745, 725C2, 745C, 725, 794 AC, 735, 740 GC, 789, 773E, 7495, 773
