Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

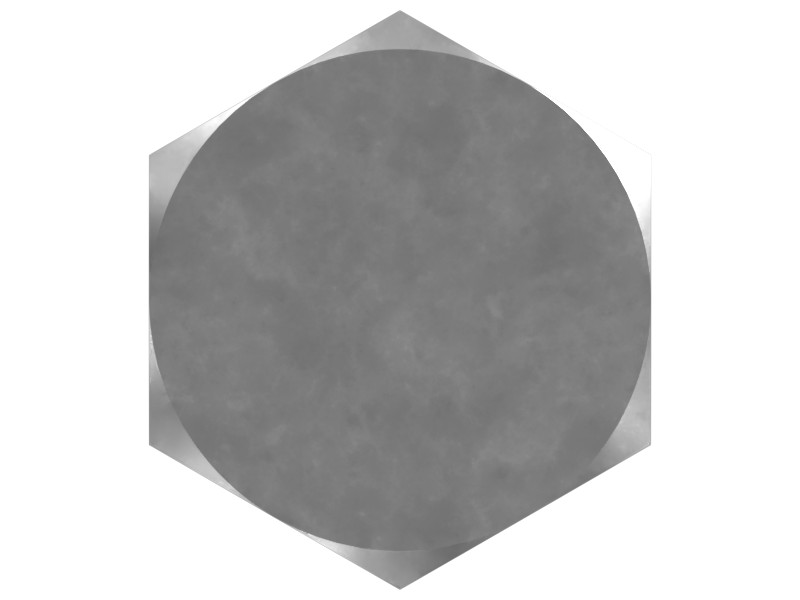

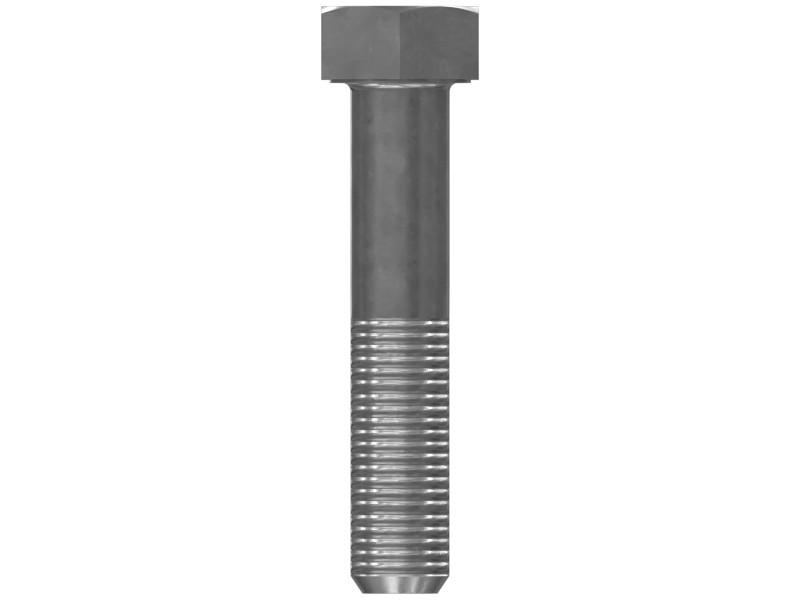

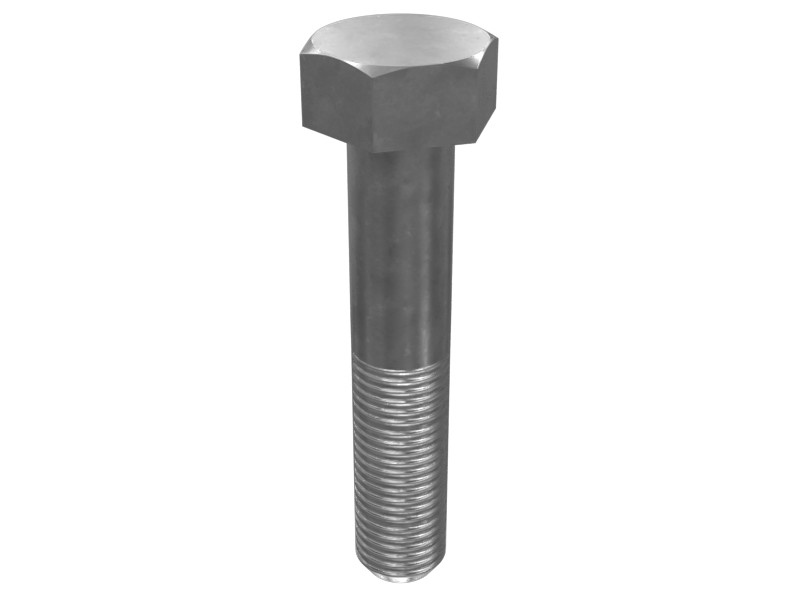

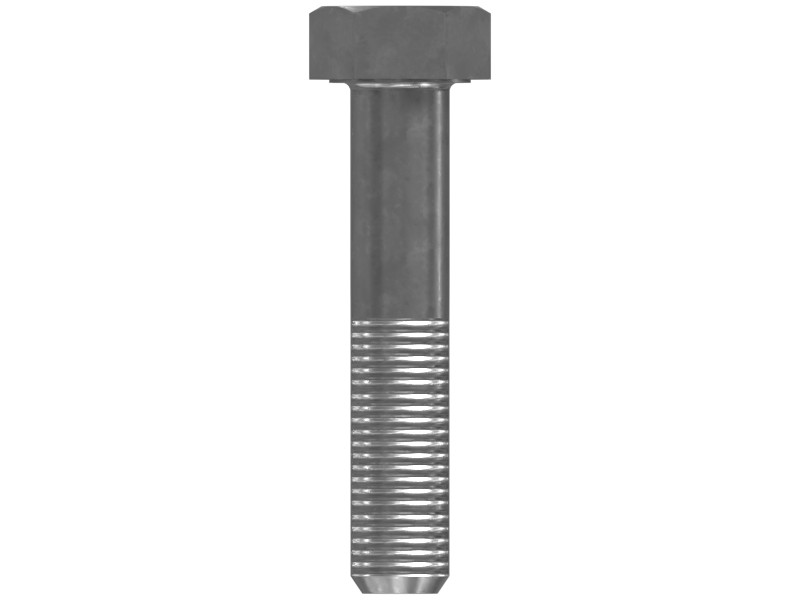

Hex head bolts/screws provide extremely strong driving capability.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
|---|---|
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size | 0.3125 mm (0.012 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Length | 41.27 mm (1 5/8 in) |
| Bolt Type | Hex Head Bolt |
| Head Height | 0.24 in |
| Coating | Zinc Plated |
| Drive Chain | 1/2 in |
| Material | Alloy Zinc |
| Handle Length | 19.05 mm (0.75 in) |
| Thread | Coarse |
| Material Description | SAE J429 Grade 8. Head Marking – 6 Radial Lines (150 ksi Ultimate Tensile Strength) |
| Thread Size (in – TPI) | 5/16-18 in |
Compatible Equipment
- Generator Sets: 3406C, 3406B
- Motor Graders: 140 GC, 120H, 140H, 12H
- Track Loaders: 993, 992, 824C
- Engines: C15, C32, C27, C18
- Dozers: D6R, D10N, D10R, D5H, D7H, D6G2 XL, D7R, D7G2, D6G, D8R, D6G2 LGP
- Excavators: 350 L, 330 L, 330B
- Wheel Loaders: 992K
- Off-Highway Trucks: 798 AC, 794 AC, 796 AC, 777D
- Asphalt Pavers: AD63, AD45
Additional information
| Machine Model | 120H, 12H, 140 GC, 140H, 330 L, 330B, 3406B, 3406C, 350 L, 777D, 794 AC, 796 AC, 798 AC, 824C, 992, 992K, 993, AD45, AD63, C15, C18, C27, C32, D10N, D10R, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D7G2, D7H, D7R, D8R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
