Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

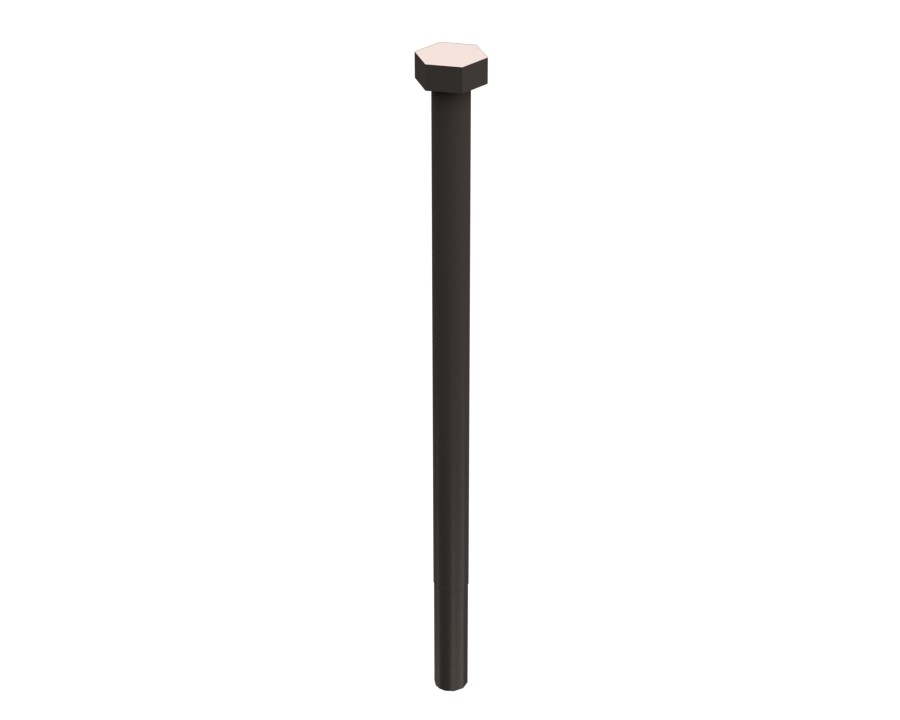

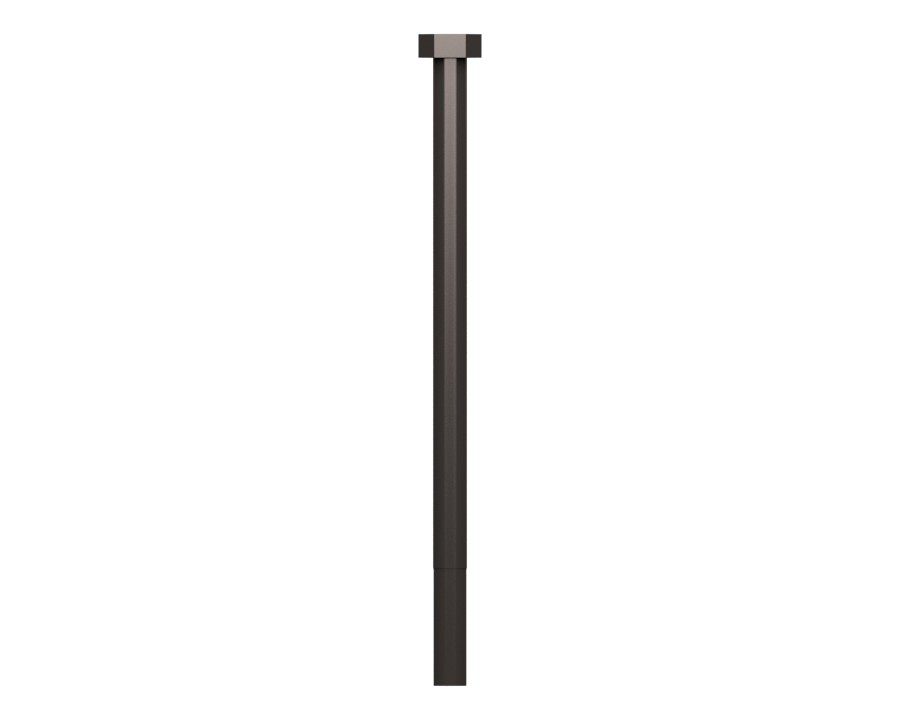

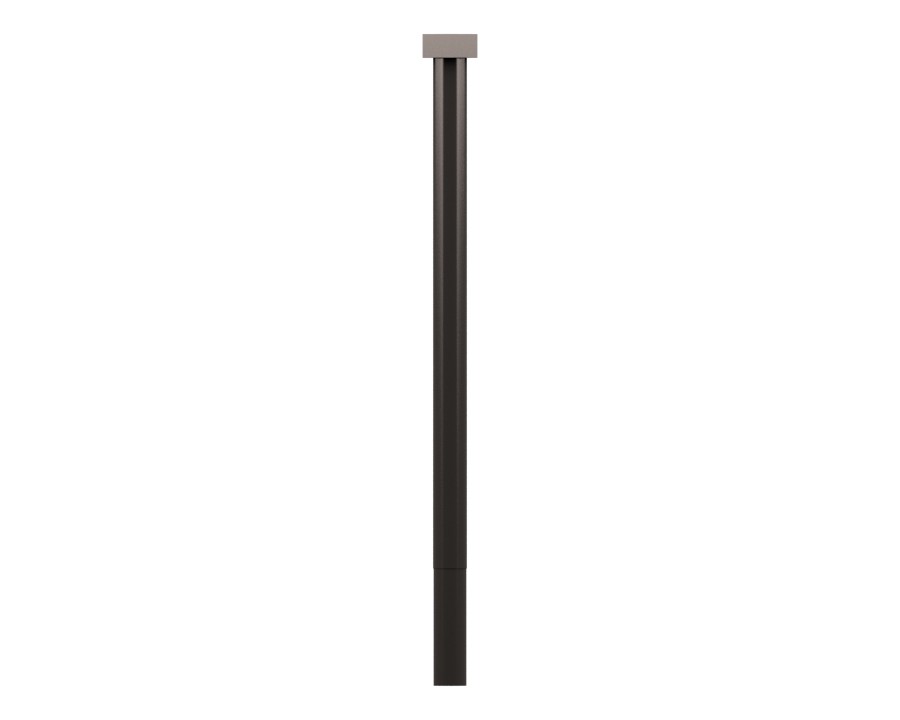

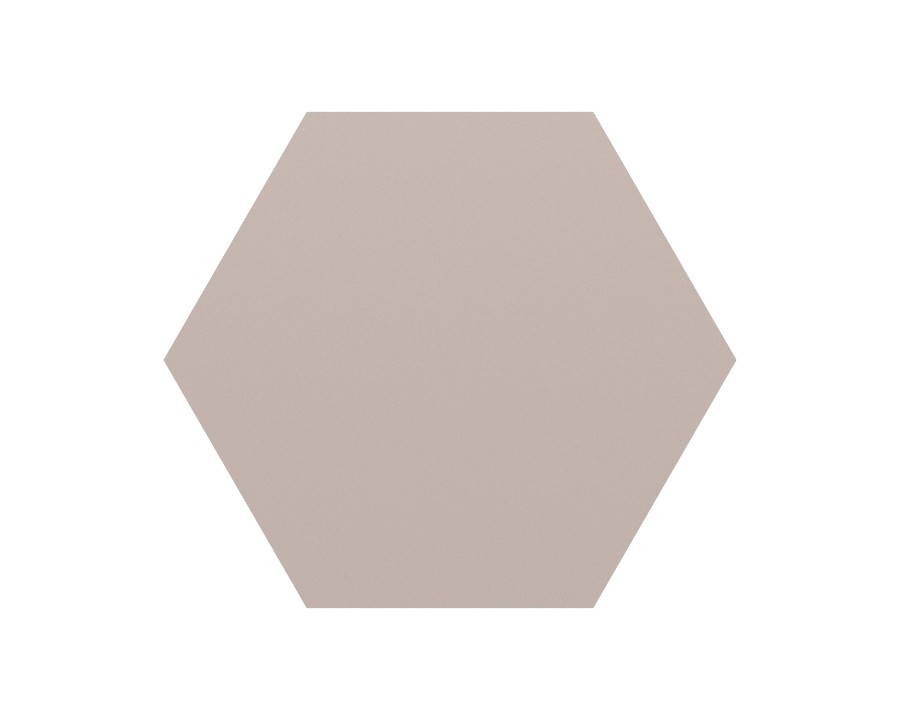

Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size | M8 mm (0 in) |
| Thread Size (Diameter × Pitch) | M8X1.25 mm |
| Bolt Length | 150 mm (5.906 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 122 mm (4.803 in) |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 963
- Engines: C7
- Excavators: 336D2, 336D, 330D L, 336D2 L, 330C, 336D L, 336D2 XE, 330D, 330C L, 336D2 GC, 637G, 637K, 637E, 621H, 621K, 340D2 L, 340D L
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 3126B
- Motor Graders: 12H, 160K, 120H, 140H, 140K, 12K, 14
- Compactors: C-9
- Dozers: D6R II, D6R III, D6T, D6R, D7R, D6R LGP, D6R XL
- Wheel Loaders: 928G, 962G
- Off-Highway Trucks: 785, 793, 793F, 789
Additional information
| Machine Model | 120H, 12H, 12K, 14, 140H, 140K, 160K, 3126B, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 621H, 621K, 637E, 637G, 637K, 785, 789, 793, 793F, 928G, 962G, 963, AP-600D, C-9, C7, C9, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
