Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M14 mm (0 in) |
|---|---|
| Locking Feature | None |
| Bolt Size | M14 mm (0.5511 in) |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M14X2 mm |
| Bolt Length | 35 mm (1.378 in) |

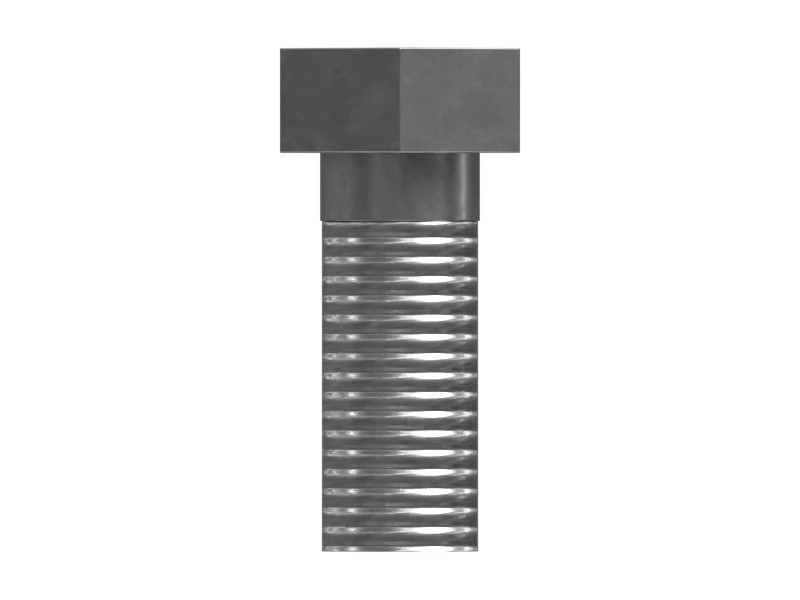

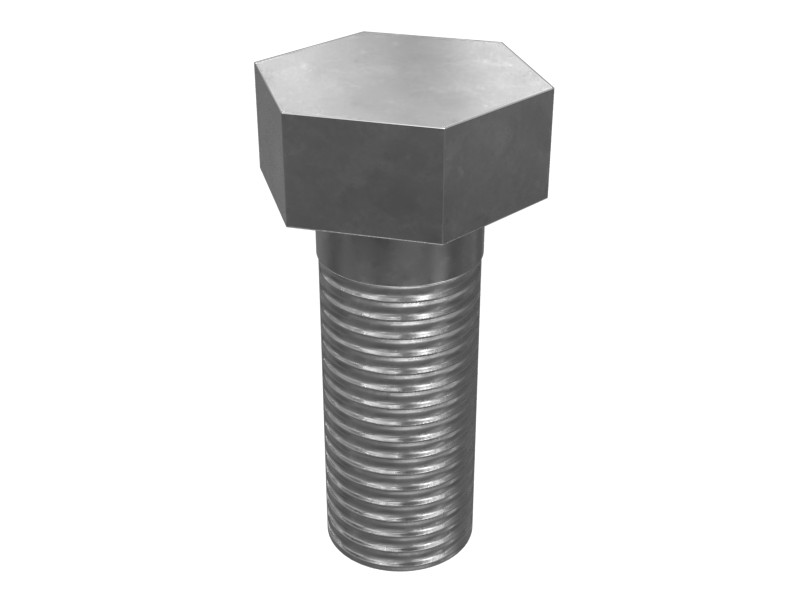

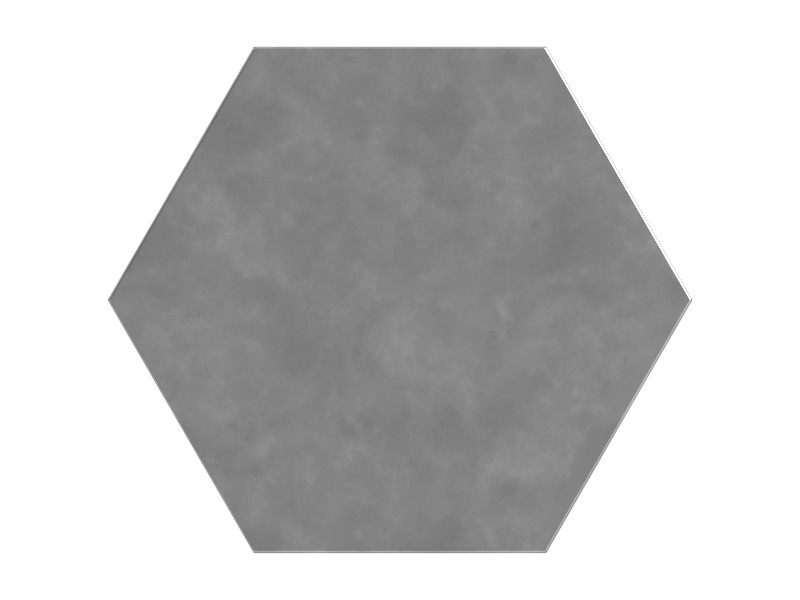

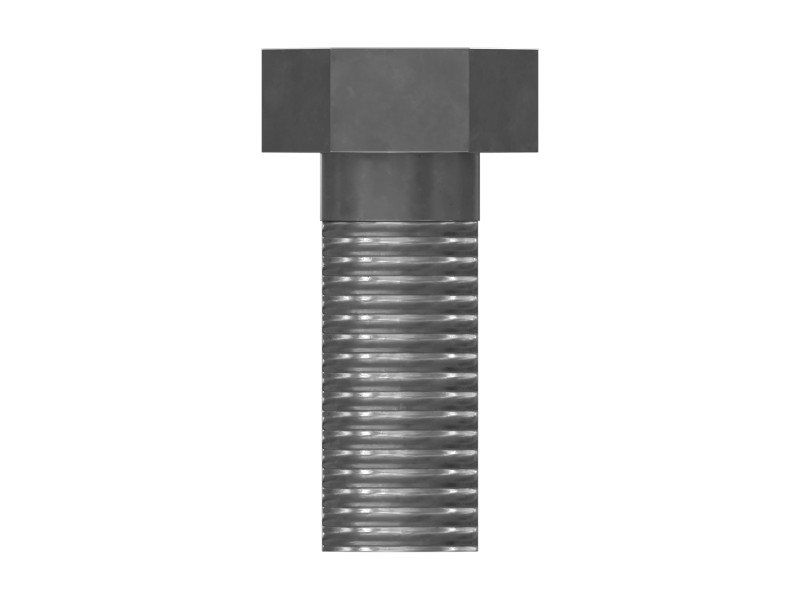

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 6 mm (0.236 in) |
Compatible Equipment
- Motor Graders: 120H, 12K, 140G, 140K, 12H, 140H, 16H, 160K
- Generator Sets: 3516C, 3512B
- Wheel Excavators: M320
- Compactors: CS-583D
- Engines: C32, C27, C7, C175-16
- Dozers: D8
- Mini Excavators: 307B, 307C, 307
- Excavators: 325B L, 325B, 3516B, 6040, 3512C, 3516E, 3126
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 120H, 12H, 12K, 140G, 140H, 140K, 160K, 16H, 307, 307B, 307C, 3126, 3126B, 325B, 325B L, 3512B, 3512C, 3516B, 3516C, 3516E, 6040, C175-16, C27, C32, C7, CS-583D, D8, M320 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
