Description

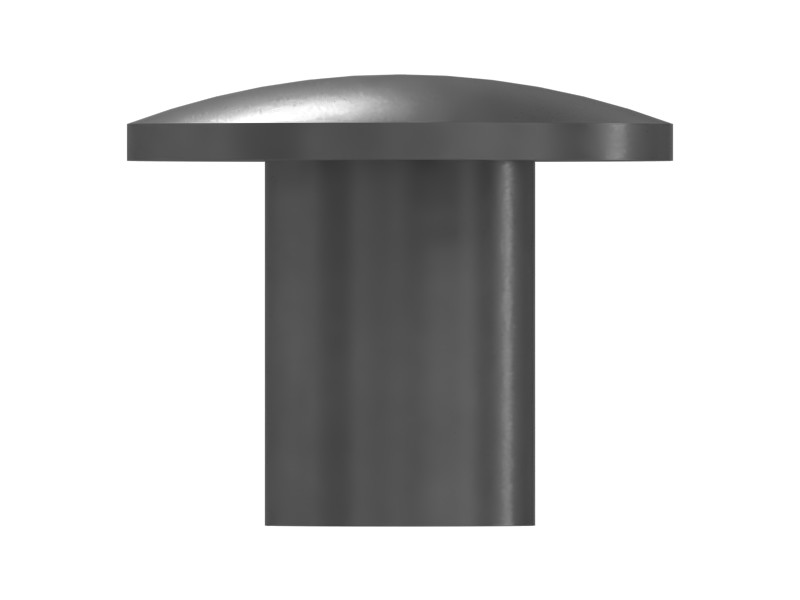

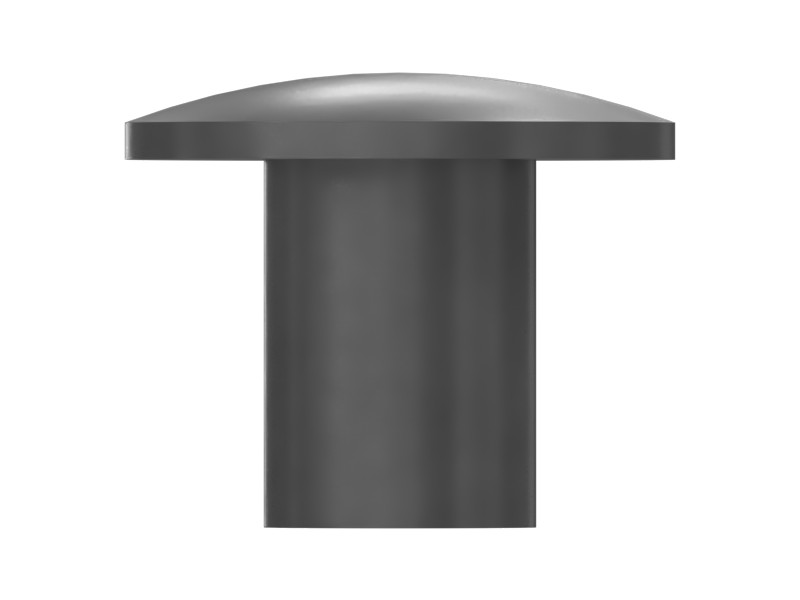

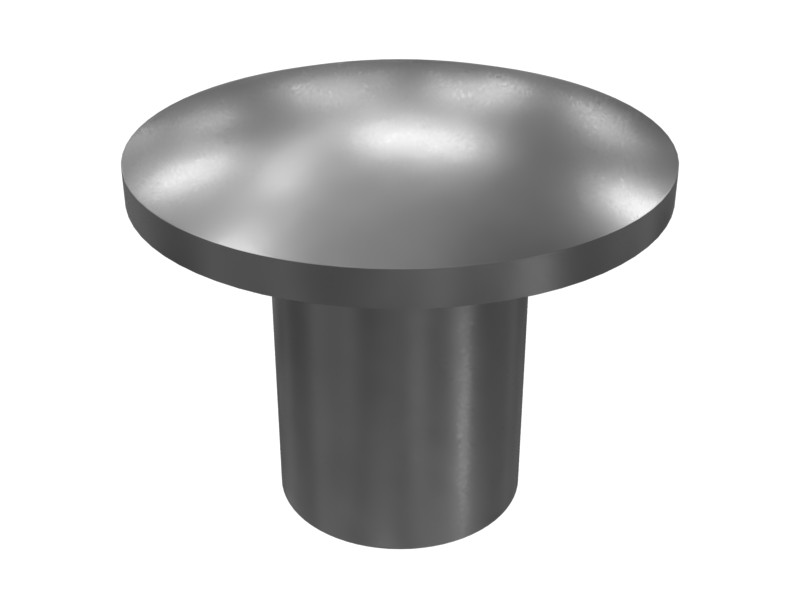

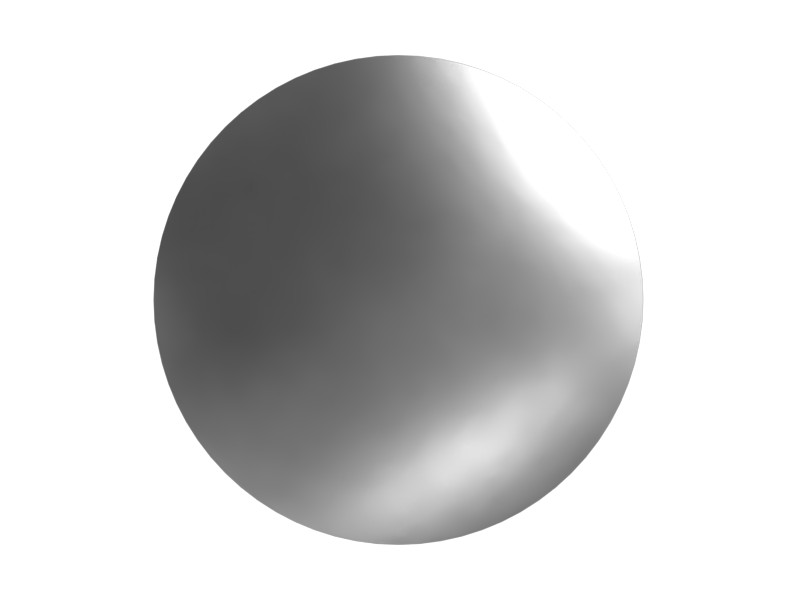

Half-tubular rivets (for example, part number 8C-3334) are also called tubular rivets. These rivets have a hole at the tip, opposite the top, which allows the tubular portion of the rivet to deform (roll outward) under force.
Features
- Semi-tubular rivet
- Zinc-plated steel
- Head Diameter: 9.5 mm (0.37 in)
- Rod Diameter: 4.7 mm (0.19 in)
- Rod Length: 6.35 mm (0.25 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Coating | Zinc Plated |
|---|---|
| Head Diameter | 10 mm (0.37 in) |
| Head Height | 2 mm (0.06 in) |
| Length | 6 mm (0.25 in) |
| Rivet Type | Semi-Tubular |
| Rod Diameter | 5 mm (0.19 in) |
Compatible Equipment
- Generator Sets: 3516C, G3516, 3512E, 3406C, C9, G3516C, C7.1, 3406B
- Track Loaders: 990K, 953, 824G, 826G, 963, 826K, 953K, 992, 993, 963K, 972, 994K, 834H, 995, 816F, 824C
- Cold Planers: PL87, PL83, PL72
- Compactors: 824K, 825K, 816, C9.3B, C13B, 815, 834K, 814, C-15, C-9
- Engines: C27, C32, C7, C13, C15, C11, C12, C18
- Excavators: 3456, 336D2, 320D, 336D, 320D2, 330D L, 3512C, 345C, 345C L, 3516E, 340D2 L, 352F, 385B, 3508B, 336D L, 336D2 L, 328D LCR, 320B, 320D L, 330D, 3516B, 325B L, 323D L, 324D L, 324D, 325D L
- Asphalt Pavers: AD30, AD45, AD63
- Skid Steer Loaders: 262C, 246C, 3126B, 279C
- Motor Graders: 160K, 120H, 140H, 12K, 140K, 12H
- Dozers: D11T, D6R II, D7R II, D6R III, D5N, D6R XL, D8T, D5M, D6T, D6R, D7R, D6T LGP, D6R LGP, D8R, D6M, D6N, D10R, D9T, D11R, D11, D8
- Wheel Loaders: R2900G, R1700G, R1300G, R1700 II, R3000H, 980G, 972H, 962G, 966L, 924GZ, 834, 988G, 992D, 988H, 988F, 966, R1600H, 928HZ, 988K, 836, 924HZ, 928G, 990H, R2900 XE, 972L, 966H, 972G, 950H, 950G
- Off-Highway Trucks: 789D, 797F, 785D, 793F, 773D, 777D, 771D, 789, 785, 793D, 794 AC, 793, 796 AC, 798 AC, 777, 773E
