Description

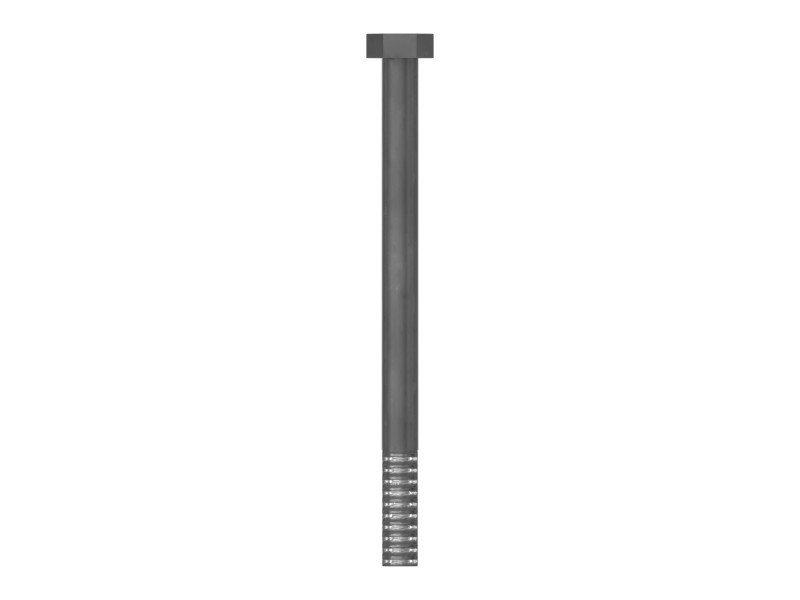

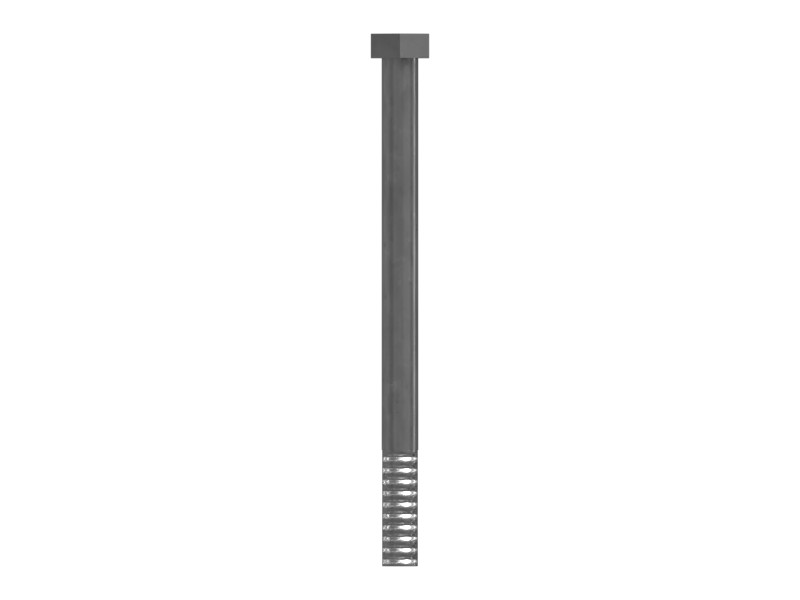

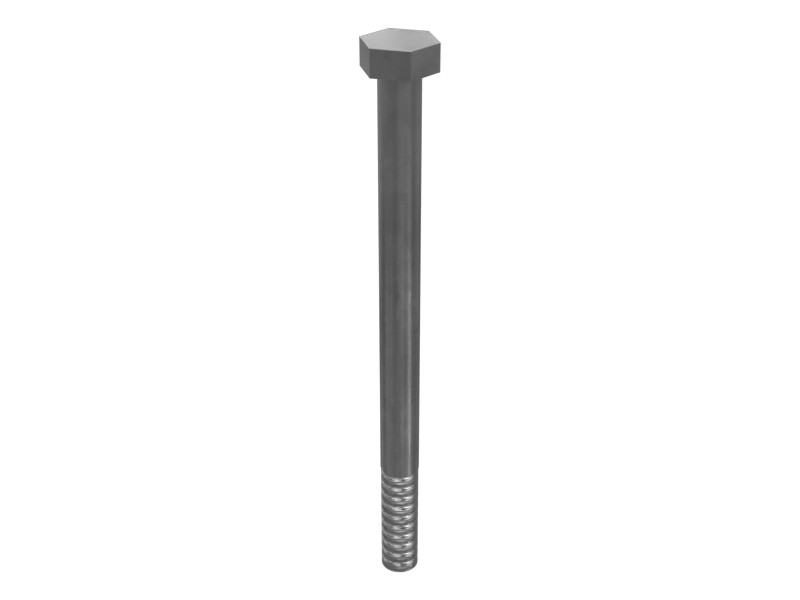

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Thread Size | M10 mm (0 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 140 mm (5.512 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 108 mm (4.252 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: C9, C7.1
- Track Loaders: 973K
- Cold Planers: PL72
- Compactors: C9.3B, C-9
- Engines: C13, C11, C7, C175-16
- Skid Steer Loaders: 3126B
- Motor Graders: 16M, 120, 12H, 140H, 12K, 16M3, 14, 16, 140K, 120H, 14M, 160K, 18
- Dozers: D6T, D7E, D6T LGP, D6R, D6R XL, D7
- Excavators: 637K
- Wheel Loaders: 950, 924HZ, 950L, 924GZ, 972L, 962L, 966L, 966K, R2900 XE
- Off-Highway Trucks: 797F, 793F, 745C, 725C2, 798 AC, 785D, 789D, 793D, 745, 740 GC, 730, 796 AC, 725, 740, 785, 794 AC, 793
Additional information
| Machine Model | 120, 120H, 12H, 12K, 14, 140H, 140K, 14M, 16, 160K, 16M, 16M3, 18, 3126B, 637K, 725, 725C2, 730, 740, 740 GC, 745, 745C, 785, 785D, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 924GZ, 924HZ, 950, 950L, 962L, 966K, 966L, 972L, 973K, C-9, C11, C13, C175-16, C7, C7.1, C9, C9.3B, D6R, D6R XL, D6T, D6T LGP, D7, D7E, PL72, R2900 XE |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
