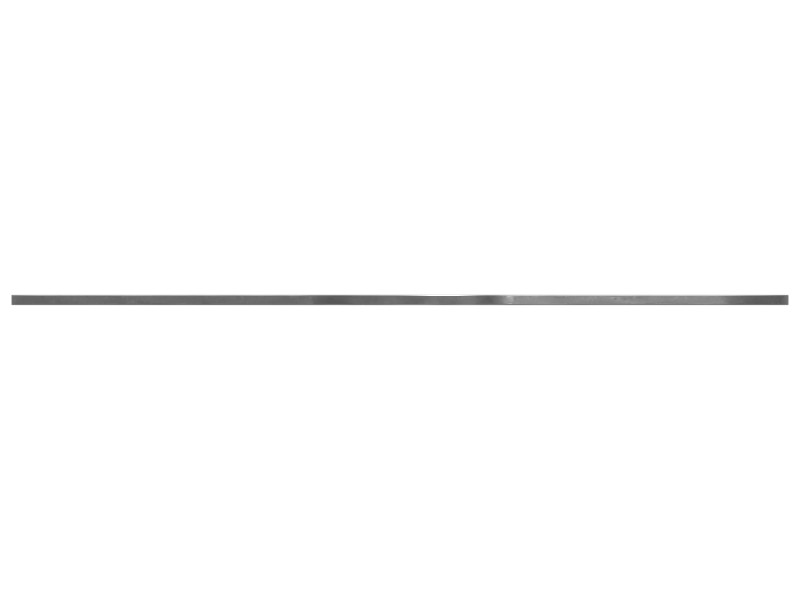

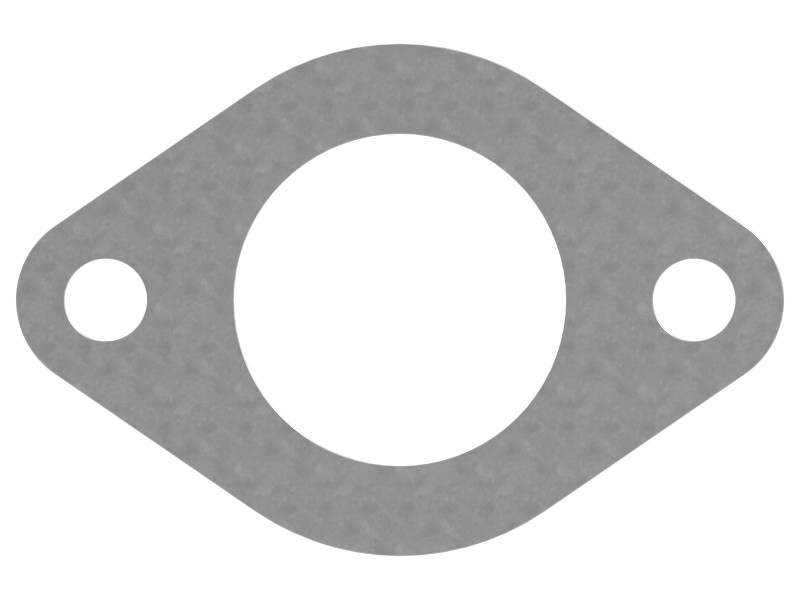

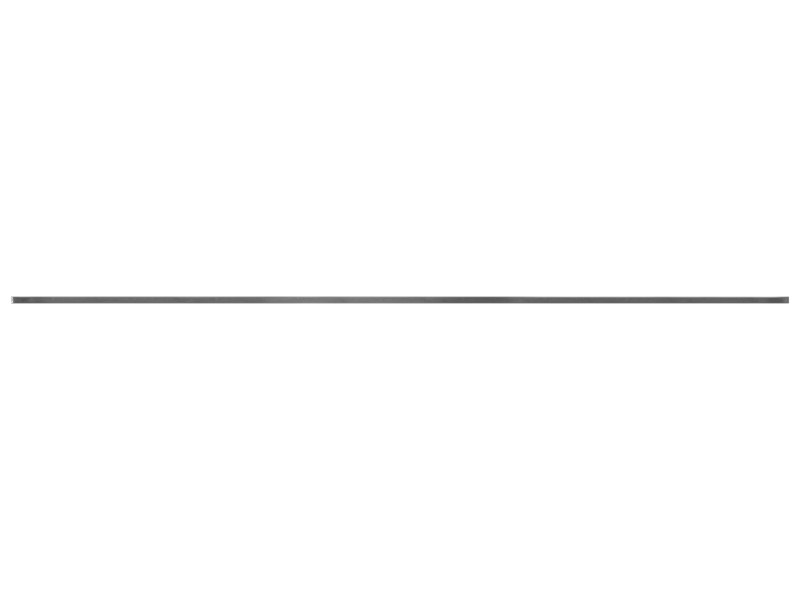

8B-1615 0.8 mm Thick Flange Gasket
Cat® 0.8 mm Thick Flange Gasket
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with the right combination of material and form to deliver the desired performance for your application.
Specifications
| Type | 2-Hole Flange |
|---|---|
| Style | Flat Plate |
| Material | Rubber & Cork, Rubber & Fiber Gasket |
| Inside Diameter | 41.3 mm (1.63 in) |
| Outside Diameter | 63.6 mm (2.50 in) |
| Thickness | 0.8 mm (0.03 in) |
| Hole Size | 10.3 (2X) mm (0.41 (2X) in) |
| Flange Hole Spacing | 73.0 mm (2.87 in) |
Compatible Equipment
- Motor Graders: 140 GC, 18, 16, 120, 12H, 12K, 120H, 140H, 140K, 160K, 16M3, 16M, 14
- Generator Sets: G3516
- Excavators: 120 GC
- Off-Highway Trucks: 785, 789
