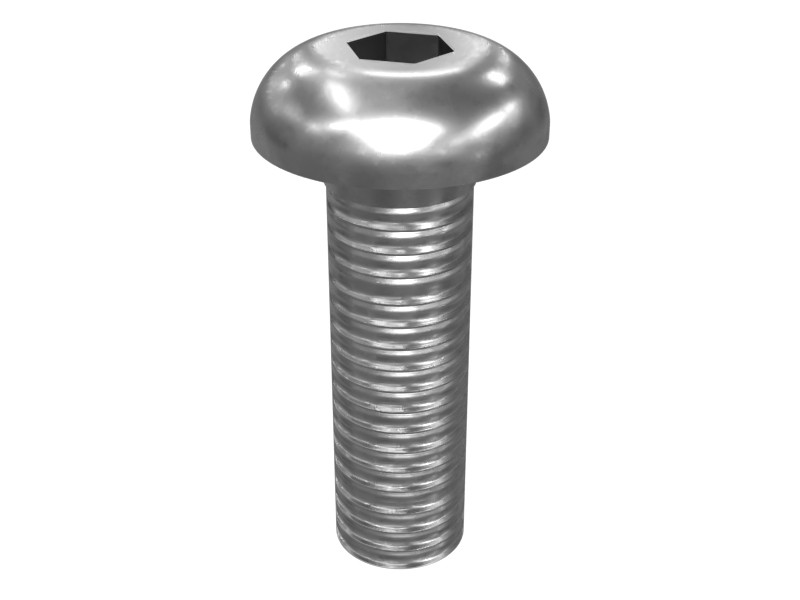

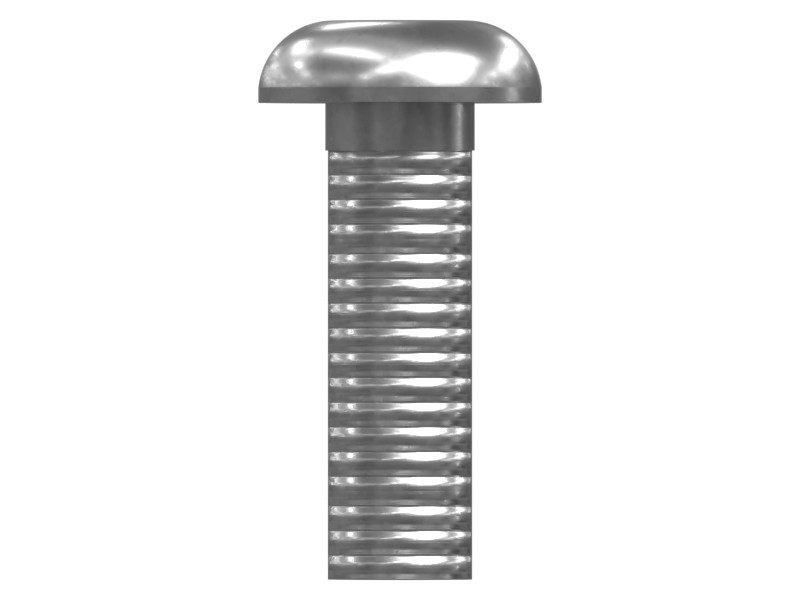

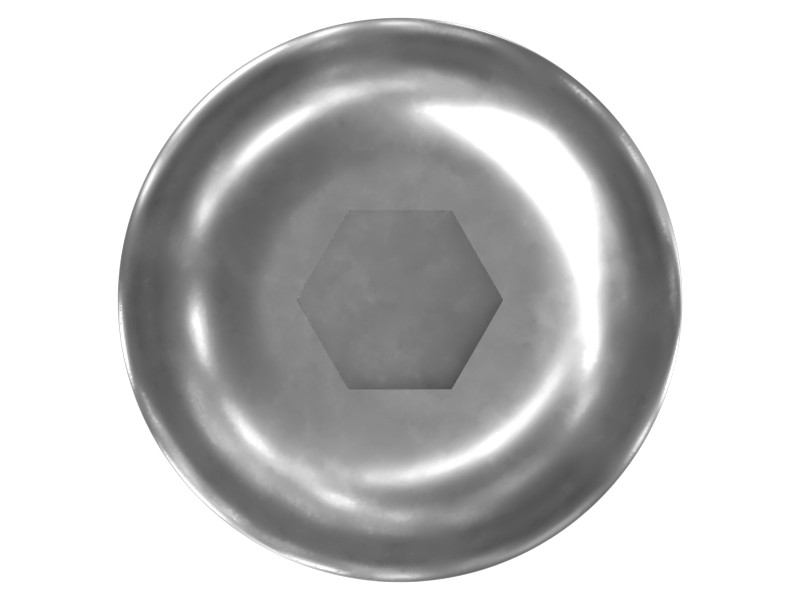

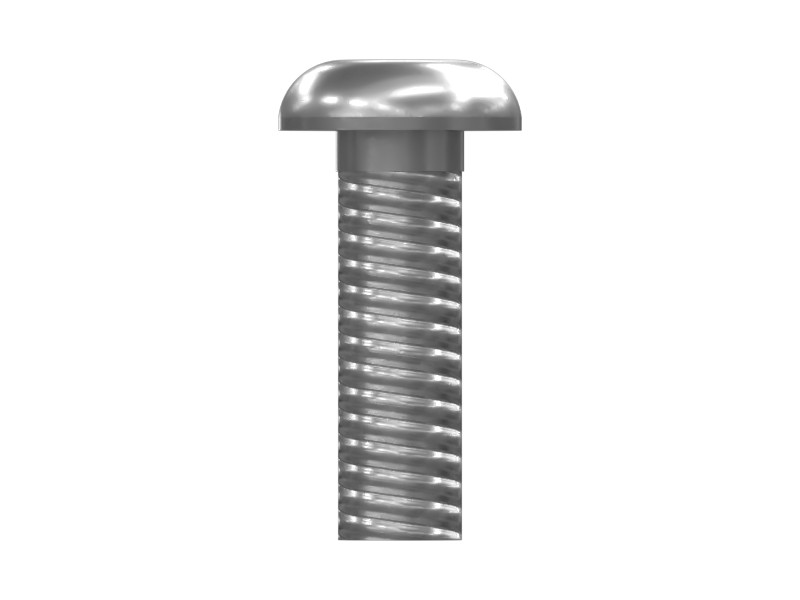

7Y-7389 M5x0.8 Thread Pan Head Screw
Cat® pan head screw for securing wiring harnesses keeps electrical connections neat, organized, and secure
Description
Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Specifications
| Thread Size | M5 mm (0 in) |
|---|---|
| Bolt Type | Rounded Head (Pan) |
| Bolt Length | 16 mm (0.63 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Direction | RH |
| Head Type | Button |
| Material | Corrosion Preventative Fluid |
| Coating | Zinc Flake |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
| Length | 16 mm |
| Handle Length | 2 mm (0.063 in) |
Compatible Equipment
- Generator Sets: G3516, 3516C, 3512B, C7.1, C3.3DE33E0, C7.1DE200E, C3.3DE50E0, C4.4DE88E0, C4.4
- Track Loaders: 990K, 993, 994K
- Cold Planers: PL83, TH360B, PL87, PL72
- Compactors: CS-563E, CS-54, CS-56, 834K, 815, 814
- Engines: C32, C18, C175-16
- Excavators: 320D2, 320D, 329D2, 326D2, 303, 336D2, 326D2 L, 329D2 L, 336D, 329D, 305, 307.5, 308D, 316 GC, 313 GC, 313, 330D L, 349F L, 323 GX, 320D3 GC, 320 GX, 320D FM, 312 GC, 324D L, M325D L MH, 621G, 320D3, 345 GC, 336F L, 323D2 L, 330C, 330C L, 330D, 320D2 L, 323D L, 336D L, 330D2, 320D2 GC, 336D2 XE, 329D L, 336D2 L, 320D L, 323D, 336D2 GC, 330D2 L, 325B L, 330 L, 320C, 6060, 320, 6040, 320D GC, 323D2, 324D, 326D L, 3512C, 3508B, 3516B, 350 L, 340D2 L, 345B, 352F, 340D L, 313 GX, 316 GX, 312 GX, 313D2, 315C, 312C, 312C L, 320C L
- Asphalt Pavers: AD63, AP-600D, AD30, AD45
- Motor Graders: 14, 18, 16, 120, 16M3
- Wheel Excavators: M315GC, M315, IT14G, M320
- Dozers: D6T LGP, D9T, D9, D8, D10, D6T, D7E, D8T, D6R LGP, D8R, D6R, D6R XL, D11, D6R II, D11T, D7
- Mini Excavators: 308, 307, 308.5, 305.5 GC, 305.5E2, 310
- Wheel Loaders: 938K, 988K, M314, 966H, R1700G, R1600H, R1700K, R2900G, 834, 966K, 938M, 950 GC, 926M, 924K, RM500B, R1700 XE
- Off-Highway Trucks: 7495, 773, 797F, 772G, 740, 775G, 793, 794 AC, 798 AC, 770G, 777, 785, 730, 735, 793D, 796 AC, 725, 793F, 789D, 789
