Description

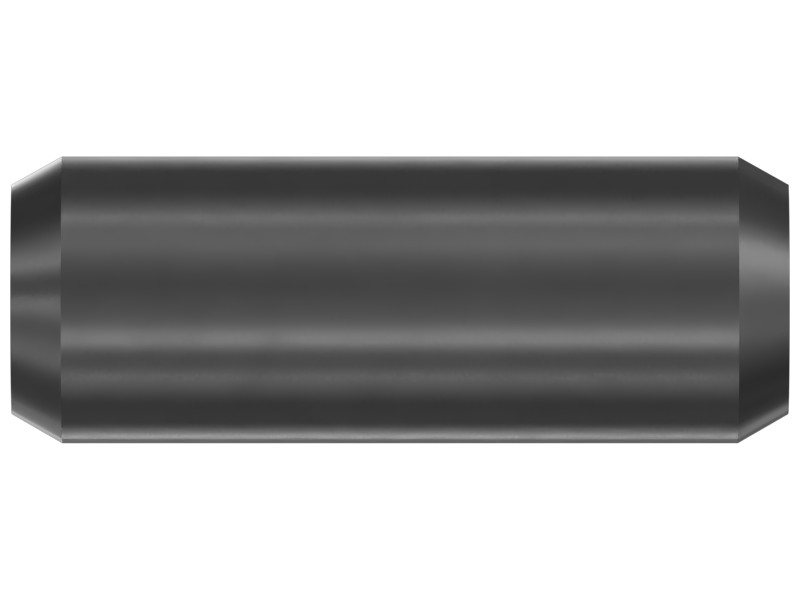

The spring pin (for example part number 7Y-5272) is a headless straight pin that is press-fitted into a hole. The slotted spring pin is compressed during installation, and the pin continuously exerts pressure on one side of the hole wall. The coiled spring pin, also known as a roll pin, remains flexible under applied loads.
Features
- Slotted spring pin
- Material: Steel
- Pin Diameter: 3 mm (0.118 in)
- Overall Length: 8 mm (0.315 in)
- End Type: Lead Chamfer, Lead Chamfer
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Pin Length | 8 mm (0.315 in) |
|---|---|
| Pin Outside Diameter | 3 mm (0.118 in) |
| Remarks | End Type: Chamfer, Chamfer |
| Overall Length | 8 mm (0.32 in) |
| Pin Diameter | 3 mm (0.12 in) |
| Pin Type | Slotted Spring |
Compatible Equipment
- Generator Sets: 3512B, C9
- Track Loaders: 972, 973K, 826H, 826G, 824G
- Cold Planers: PL72
- Compactors: C9.3B, C-9
- Excavators: 320D2, 336D2, 320D, 329D2 L, 329D2, 326D2, 326D2 L, 303, 336D, 374D L, 390D L, 329D, 330D L, 340, 336D2 L, 345C, 350, 315C, 345D L, 330D2, 325C, 330C L, 325C L, 336D L, 320C, 320D2 GC, 336F, 325D, 324D L, 325B L, 336D2 XE, 320D GC, 326D L, 336D2 GC, 336, 311B, 330 L, 320D2 L, 324D, 330D2 L, 325D L, 323D2 L, 329D L, 330C, 336E LH, 320D L, 3516B, 350MHPU, 320C L, 336E L, 320B, 323D L, 336E, 320D RR, 312C L, 336E H, 323D, 320D FM, 311C, 336F L XE, 336F LN, 336F L, 330D, 330B, 320D3, 365C, 340D L, 365B, 365C L, 385C L, 340D2 L, 385C, 365B L, 345B, 385B, 345 GC, 349D L, 345D, 385C FS, 345C L, 325B, M325D L MH, 312C, 323D2, 336E LN, 637K, 390D
- Motor Graders: 349 GC, 14
- Dozers: D7, D6T, D7E, D6T LGP
- Mini Excavators: 307C, 307B, 307D
- Wheel Loaders: 966, RM400, 972G, 966K, 966L, 972L
- Off-Highway Trucks: 725, 725C2
Additional information
| Machine Model | 14, 303, 307B, 307C, 307D, 311B, 311C, 312C, 312C L, 315C, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 330 L, 330B, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 336, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345B, 345C, 345C L, 345D, 345D L, 349 GC, 349D L, 350, 350MHPU, 3512B, 3516B, 365B, 365B L, 365C, 365C L, 374D L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 637K, 725, 725C2, 824G, 826G, 826H, 966, 966K, 966L, 972, 972G, 972L, 973K, C-9, C9, C9.3B, D6T, D6T LGP, D7, D7E, M325D L MH, PL72, RM400 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
