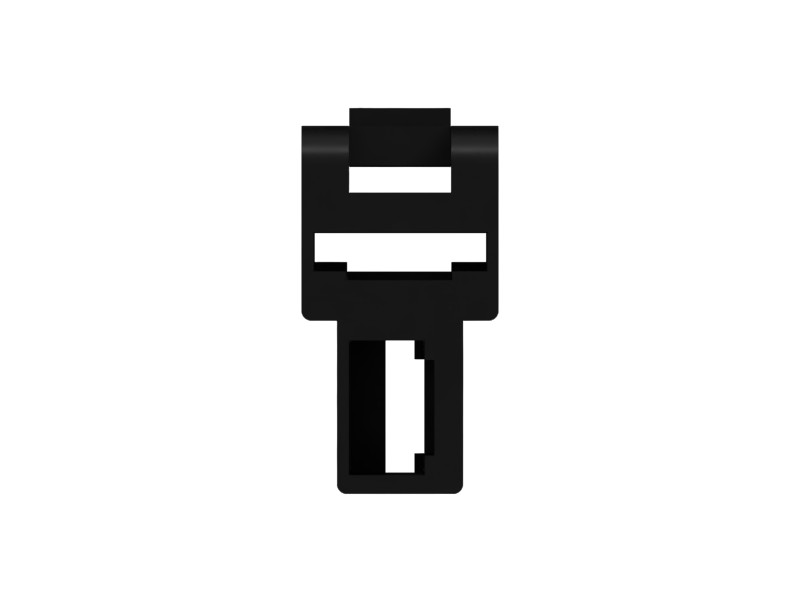

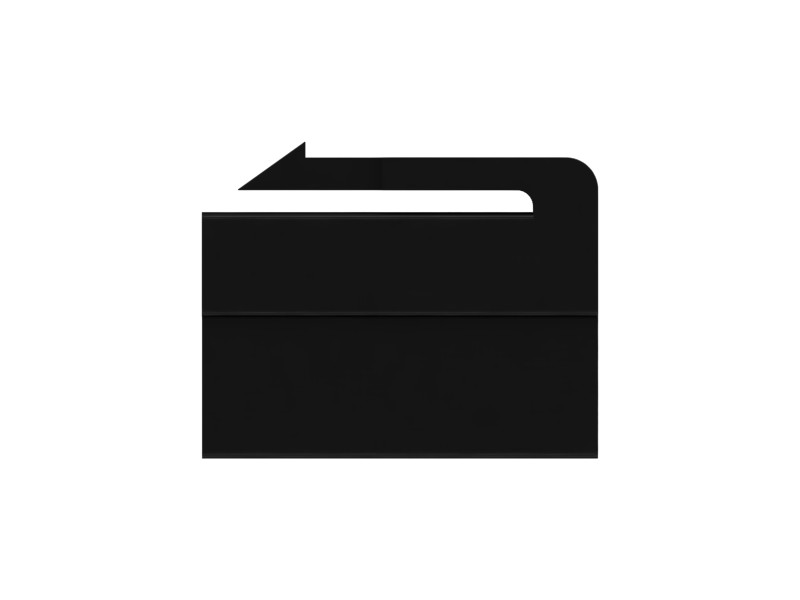

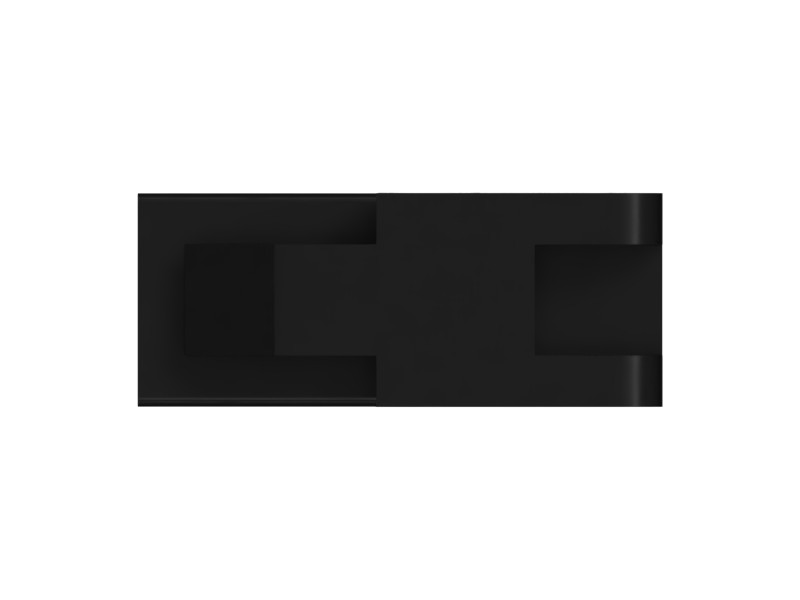

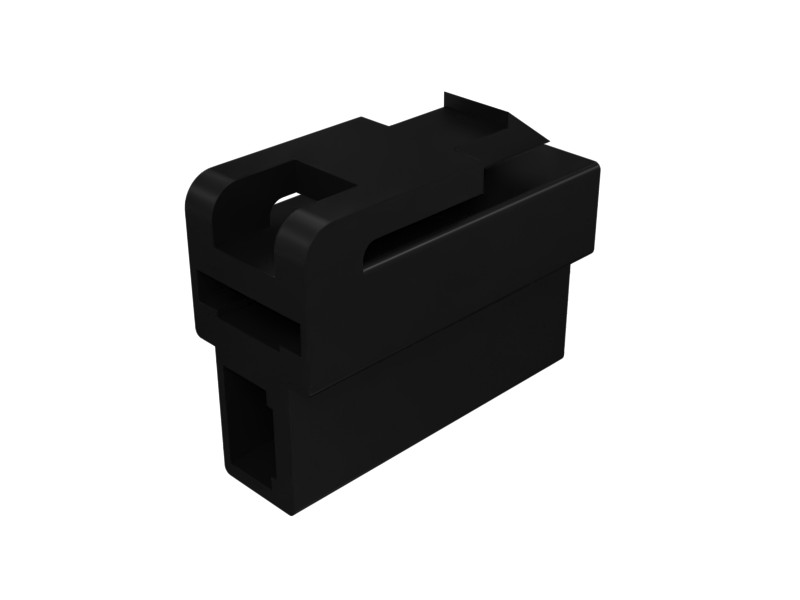

7Y-3952 2-Pin Connector Plug
Cat® 10 mm Wide 2-Pin Connector Plug for Governor Control Wiring Harness
Description
Cat connector plug groups use a pin and receptacle connection system to provide reliable electrical connections in a range of electrical applications on Cat heavy-duty equipment.
Features
- Material: Plastic
- Contact Type: Receptacle
- Number of Contacts: 2
- Easy to connect and disconnect
Applications
Cat Plug Connector Groups provide reliable mating between wires or between a wire and a device. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Material Description | Plastic |
| Length | 24.6 mm (0.97 in) |
| Width | 10 mm (0.39 in) |
| Height | 19.7 mm (0.78 in) |
Compatible Equipment
- Motor Graders: 12K, 160K, 140K, 16H, 120H, 140H, 12H, 120, 316F
- Generator Sets: 3512B, C7.1
- Compactors: CB1.8, CB1.7, CB-14
- Wheel Excavators: M320, M315, M315D, M315D2, M317D2, M313D, M322D, M315GC, M320D2
- Mini Excavators: 308, 307D, 307C, 305.5E2, 307, 306, 302CR, 301.5, 301.7CR, 308E2, 307B, 303.5E, 303.5C, 305.5E, 305E2, 306.5, 305.5, 307E2, 303.5D, 308.5, 310, 305.5 GC
- Excavators: 313 GC, 313, 330D L, 316 GC, 374, 305E2 CR, 349F L, 340, 352, 320 GC, 315 GC, 330GC, 355, 323GC, 320D L, 323 GX, 336D L, 323D2 L, 330D2 L, 312D L, 336F, 320D2 GC, 323D L, 312C, 336E L, 325D L, 318D L, 311C, 320, 312D2 L, 325D, 320D RR, 320C, 336E, 336F L, 324D L, 336, 325C, 324D, 320D2 L, 315, 301.8, 301.6, 313 GX, 302.7CR, 303.5CR, 303CR, 313D2, 312 GC, 320 GX, 326, 336 GC, 345 GC, 350, 349, 395, 305 CR, 326 GC, 333 GC, 320D3, 325, 330 GC, 333, 323, 329D L, 330C, 311D LRR, 328D LCR, 336D2 L, 318D2 L, 329E L, 312D, 336D2 XE, 313D2-GC, 312C L, 314D LCR, 325B L, 320D GC, 320E, 312E L, 313F L, 336F L XE, 330D, 312D2, 315D L, 314C, 330D2, 311B, 323D, 320D FM, 336E LH, 329E, 335, 345C, 349E L, 345D L, 350 L, 340D2 L, 352F, 365C, 374F L, 390D, 385C FS, 385C, 345B, 349D L, 390F, 349E L VG, 349E, 385C L, 365C L, 345C L, 345D, 313F LGC, 316 GX, 3101, 312 GX, 326GC, 336E H, 312E, 313D, 312D2 GC, 336F LN, 330C L, 323 GC, 336E LN, 325B, 350MHPU, 313D2 GC, 314D CR, 315C, 336D2 GC, 315F LCR, 330B, 320B, 335F LCR, 312F, 326D L, 340D L, M325D L MH, 323D2, 318D2, 305, 320D, 329D2 L, 305C CR, 303.5E2 CR, 326D2, 320D2, 307.5, 336D, 330, 336D2, 329D, 308D, 326D2 L, 303C CR, 306E, 390D L, 349D2 L, 390F L, 349D2, 374D L, 303, 307E, 306E2, 308E, 349D, 374F, 329D2
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
