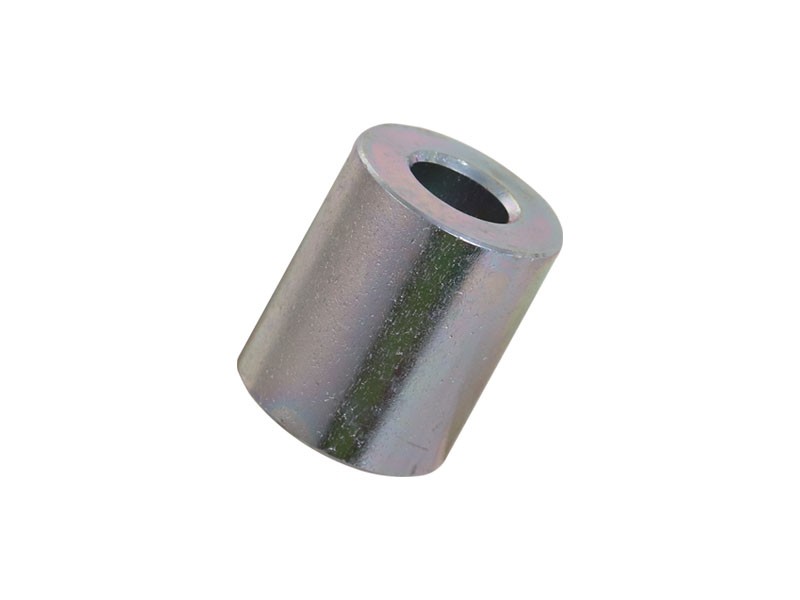

Description
A shim is a fastener used to create space between two components. They are also used to provide positioning assistance between components. The size and shape of steel shims may vary depending on their intended use, but they are usually manufactured to very tight tolerances to ensure precise spacing between components.
Attributes
- Withstands heavy loads and provides support for components.
- Withstands high pressure without deforming or breaking.
Applications
Shims are used to increase the distance between the retained parts, and are widely used in Cat 120 Motor Graders, 312, 312C, 313, 315, 315B, 315C, 316, 317, 317B, 318, 318B, 318C, 319C, 320, 320B, 320C, 320D, 321B, 321C, 321D, 323D, 324, 326, 330, 333, 335, 349, 349E, 349F, 352, 352F, 355, 385B, 5090B, M322, MH3024, MH3026 and MH3032 Excavators, 312, 315, 320, 320C, 320D, 323D, 365 and 375 OEM applications, 312, C13, C18 and C4.4 Engines (Piston), 320D, MH3040 and MH3260 Material Handlers, 450E Backhoe Loaders, 910K, 910M, 914K, 914M, 918M and 920K Wheel Loaders, C13 Engine Common Platform, C13 Engine Common Platform (C13), C18 Engine Common Platform (C18), C18 Generator Sets, PM6, PM620, PM622, PM8, PM820, PM822 and PM825 Paving Equipment, TR43 Powertrain
Specifications
| Inside Diameter | 9 mm (0.354 in) |
|---|---|
| Outside Diameter | 9 mm (0.35 in) |
| Coating | Mechanical Zinc |
| Gasket Type | Flat |
| Thickness | 23 mm (0.91 in) |
| Weight | 0.04 kg (0.09 lb) |
Compatible Equipment
- Cold Planers: PM622, PM620
- Engines: C18
- Excavators: 313 GC, 313, 349F L, 316 GC, 352, 320D GC, 320C, 320D L, 315C, 323D L, 320D FM, 385B, 352F, 349E L, 349E L VG, 349, 349E, 313 GX, 312 GC, 355, 120 GC, 312 GX, 315 GC, 315, 316 GX, 320D RR, 312C, 320B, 312C L, 323D, 320C L, 320D
Additional information
| Machine Model | 120 GC, 312 GC, 312 GX, 312C, 312C L, 313, 313 GC, 313 GX, 315, 315 GC, 315C, 316 GC, 316 GX, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 323D, 323D L, 349, 349E, 349E L, 349E L VG, 349F L, 352, 352F, 355, 385B, C18, PM620, PM622 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
