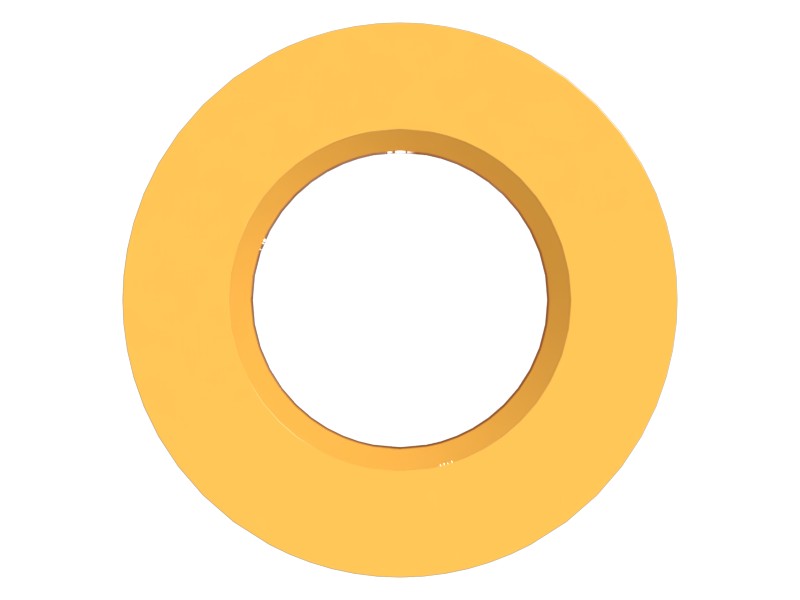

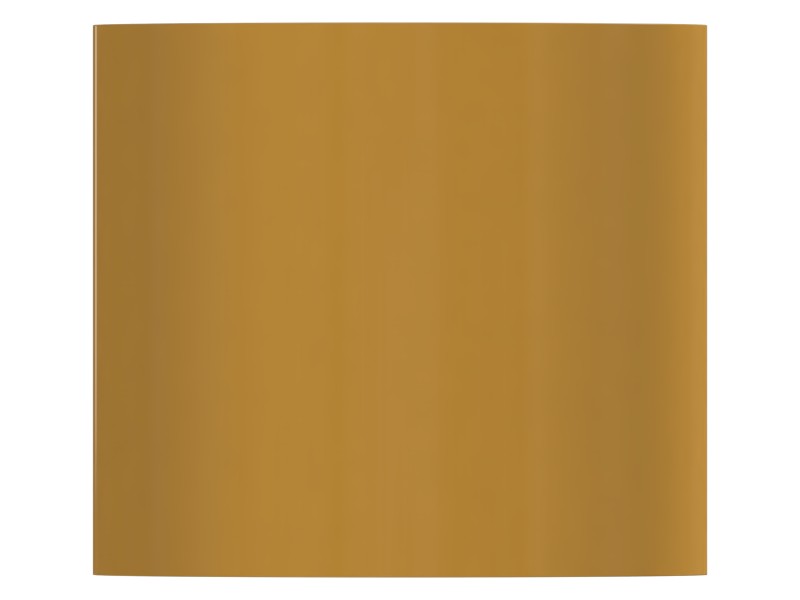

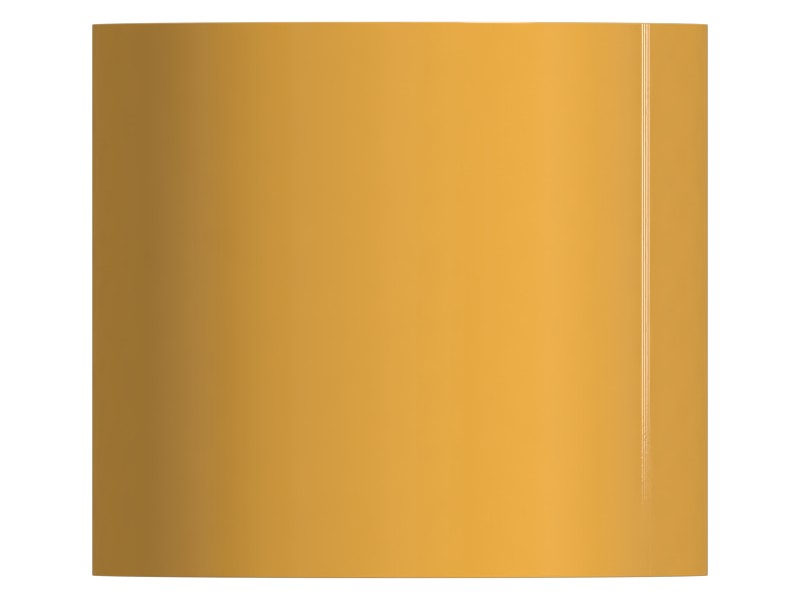

Description
A spacer (also called a gap spacer or standoff) is a small cylindrical part used to create a gap or distance between two components. They are also used to provide positioning assistance between components. Spacers are usually made of a durable material, such as metal or plastic. They come in various sizes and thicknesses.
Attributes
- Withstands heavy loads and provides support for components in a variety of applications.
- Withstands frequent use and mechanical stress without breaking or deforming.
- Helps reduce vibration, improving machine efficiency and reducing wear.
Applications
Shims are used to increase the distance between the retained parts, and are mainly used in Cat 12M and 140 Motor Graders, 315, 315D, 319D, 320, 320C, 320D, 320E, 323D, 325, 328D, 336D, 345, 345C, 350, 365, 365C, 375, 385, 385C, 525C, 545C, C6.6, C7.1, M316D and M322D OEM applications, 315C, 315D, 316E, 316F, 318C, 318D, 318E, 318F, 319C, 319D, 320, 320B, 320C, 320D, 320E, 320F, 320S, 321B, 321C, 321D, 321F, 322C, 323D, 323E, 323F, 324D, 324E, 325D, 325F, 328D, 329D, 330, 330C, 330D, 330D, 330D 35F, 336D, 336E, 340, 340F, 345C, 345D, 349D, 349E, 350, 352, 352F, 365B, 365C, 365D, 374D, 375, 385B, 385C, 385D, 390D, 5080, 5090B, 538, M315, M315C, M315D, M315F, M316, M316C, M316D, M316F, M317, M317D, M317F, M318, M318C, M318D, M318F, M319, M320, M320D, M320F, M322, M322C, M322D, M322F, M323F, M324D, MH3022, MH3024, MH3026, MH3032 and MH3050 Excavators, 320D, 325D, 330D, 345C, 365C, 385C, M318D, M320F, M322D, M325D, M330D, M333F, MH3022, MH3024, MH3026, MH3040, MH3250, MH3260, TH220B and W345C Material Handlers, 336E Base Machine-COSG-336E HVG, 336E Base Machine-COSG-336E L Uhd, 525C, 535C and 545C Skidders, 834B and 834H Wheel Dozers, 953D Track Loaders, 988F, 988G, 988H and 988K Wheel Loaders, TH255C Telehandlers, TR43 Powertrain.
Specifications
| Inside Diameter | 20.5 mm (0.807 in) |
|---|---|
| Material | Carbon Steel |
| Coating | Zinc |
| Gasket Type | Flat |
| Outside Diameter | 38 mm (1.5 in) |
| Length | 34 mm (1.34 in) |
| Thickness | 34 mm (1.34 in) |
| Weight | 0.21 kg (0.47 lb) |
Compatible Equipment
- Generator Sets: C7.1
- Track Loaders: 953D, 834H
- Wheel Excavators: M320, M322D, M315D, M320D2, M317D2
- Excavators: 330D L, 352, 340, 320C, 323D L, 320B, 328D LCR, 335F LCR, 315D L, 336D L, 323D, 315C, 320C L, 330D, 320D L, 325D L, 324D L, 365B, 365B L, 385B, 345C, 345C L, 350 L, M325D L MH, 330, 336D
- Wheel Loaders: 988G, 988H
Additional information
| Machine Model | 315C, 315D L, 320B, 320C, 320C L, 320D L, 323D, 323D L, 324D L, 325D L, 328D LCR, 330, 330D, 330D L, 335F LCR, 336D, 336D L, 340, 345C, 345C L, 350 L, 352, 365B, 365B L, 385B, 834H, 953D, 988G, 988H, C7.1, M315D, M317D2, M320, M320D2, M322D, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Generator Sets |
| Part Source | Genuine OEM |
