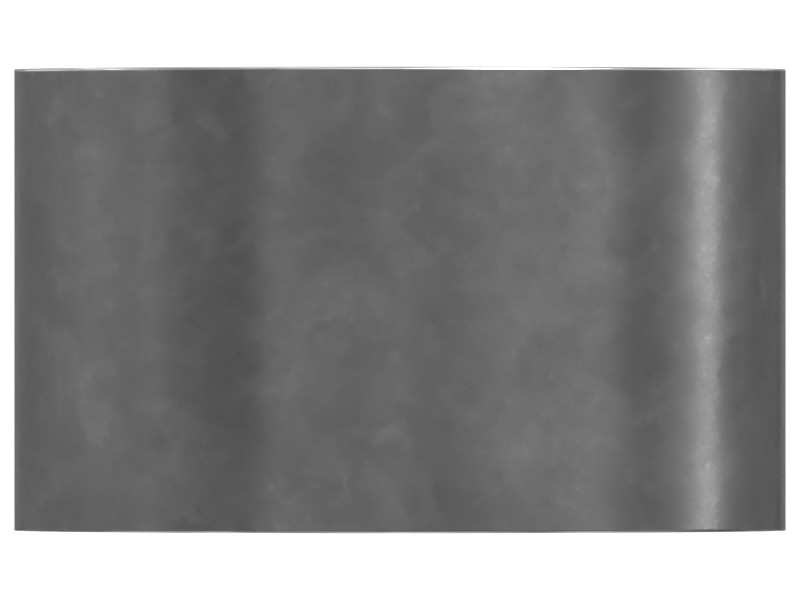

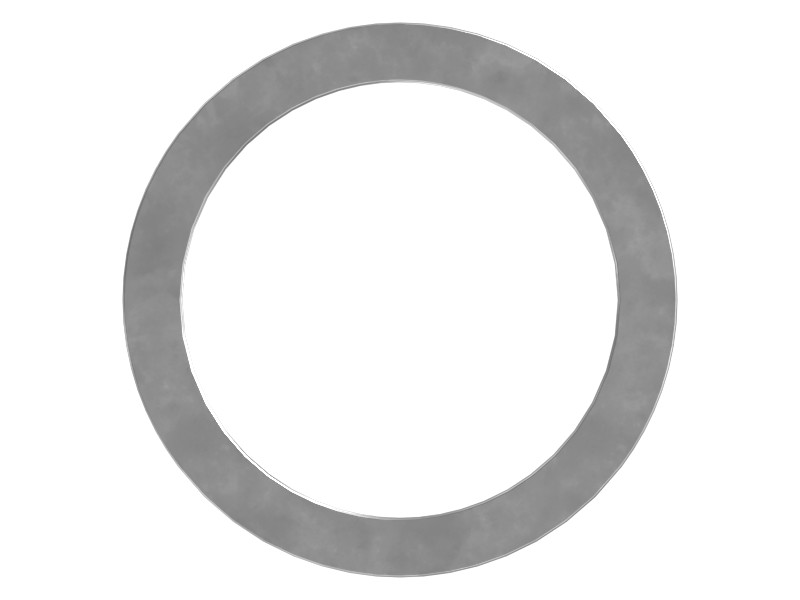

7Y-0597 110.50 mm ID Swing Drive Gasket
Cat® 110.50 mm ID Swing Drive Steel Shim
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The swing drive shim is a component used to fill the gap between the swing drive and adjacent components. The shim helps distribute the load evenly across the swing drive and adjacent components, thereby preventing damage. It is usually made of steel and comes in various sizes and thicknesses.
Attributes
- Provides a smooth, unthreaded surface so it can be easily positioned and adjusted without damaging surrounding components.
- Made of high-strength steel for durability and wear resistance.
Applications
The swing drive shim is used to increase the distance between the swing drive and adjacent components. It is mainly used on Cat 322, 322B, 325, 325B, 330, 330D, 345B, 345C, 345D, 349, 349D, 349E, 349F, 350, 352, 352F, 355, 568, M325B and W345B excavators, 322, 325, 336, 336D, 345, 345C, 345D and 350 OEM applications, 345C, MH3260, TH220B and W345C material handlers, TK1051, TK1161 and TK1162 tree harvesters.
Specifications
| Gasket Type | Flat |
|---|---|
| Outside Diameter | 140 mm (5.51 in) |
| Inside Diameter | 110.5 mm (4.35 in) |
| Ferrule Inside Diameter | 110.5 mm (4.35 in) |
| Unique Features | No |
| Ferrule Outside Diameter | 140 mm (5.512 in) |
| Overall Length | 83.6 mm (3.291 in) |
| Cross Hole | No |
| Thickness | 83.6 mm (3.29 in) |
| Weight | 3.08 kg (6.78 lb) |
Compatible Equipment
- Excavators: 349F L, 349, 352, 325B L, 325B, 345C, 349E, 349E L, 345C L, 349D L, 352F, 350 L, 345B, 345D L, 345D, 349E L VG, 349D2, 349D2 L, 349D
