7X-7875 3/8-24″ Female Thread Special Rod End

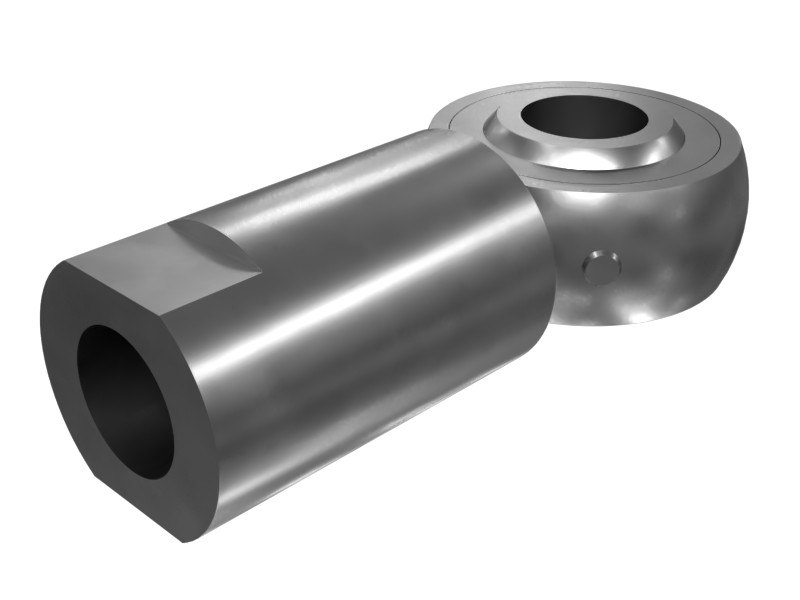

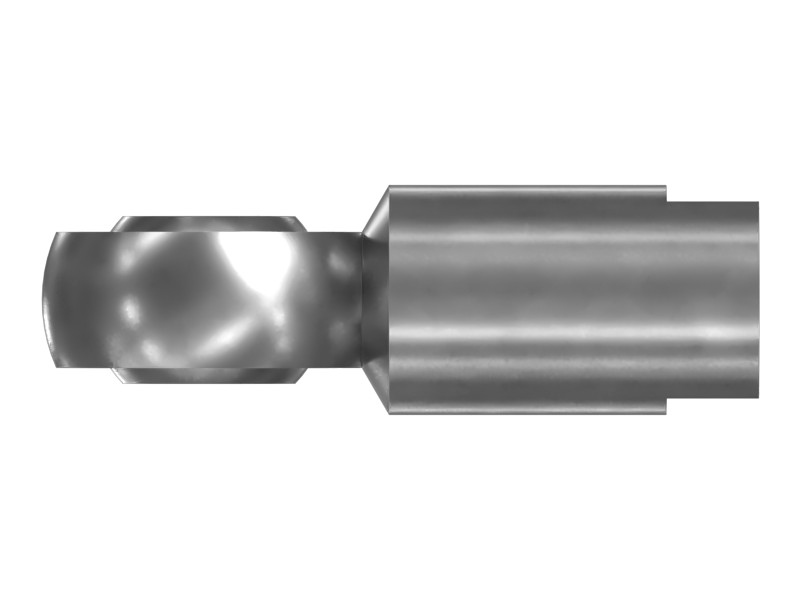

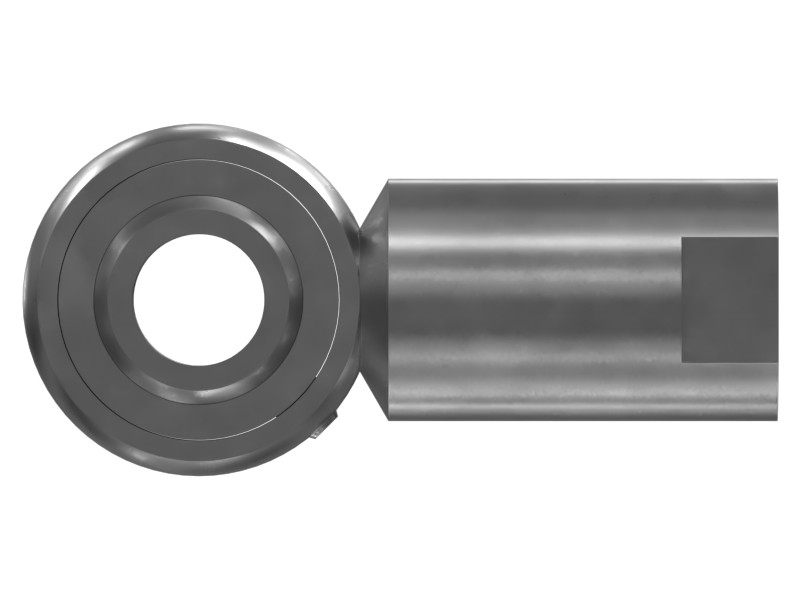

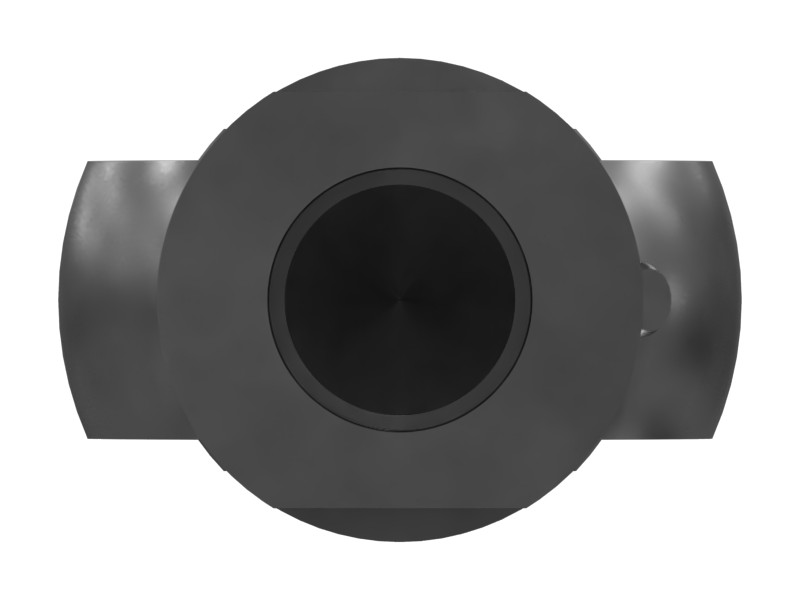

Cat® Hardened Steel Self-Aligning Special Rod End
Description
Cat® spherical rod ends offer long service life, low maintenance and high operating reliability. Spherical rod ends provide a mechanical articulating joint that allows oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the connecting shaft. A spherical rod end consists of an eye-shaped head and an integral shank, with the head forming the spherical bearing housing. The bearing reduces friction and provides protection between mating parts. These components are intended for low- to medium-speed, high-load applications with low to moderate side thrust.
Features
- Size 6
- Thread Size: 5/16-24
- Length: 41.7 mm (1.641 in)
- Material: Steel
- Pivot Angle: 16°
- High load capacity
- Easy to install and remove
- Suitable for heavy static or alternating loads and shock loads
Applications
Cat spherical rod ends are commonly used in rod and linkage groups and in control assemblies where strength and flexibility are critical.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Rod Diameter | 3/8 in |
| Rod End Type | Spherical |
| Height – C | 0.50 in |
| Material Description | Steel |
| Length to Pin Hole – A | 41.7 mm (1.641 in) |
| Rod End Diameter – B | 25.4 mm (1 in) |
Compatible Equipment
- Generator Sets: G3516, 3516C, 3512B, 3512E
- Motor Graders: 3606
- Excavators: 3516B, 3516E, 3512C, 3508B
