Description

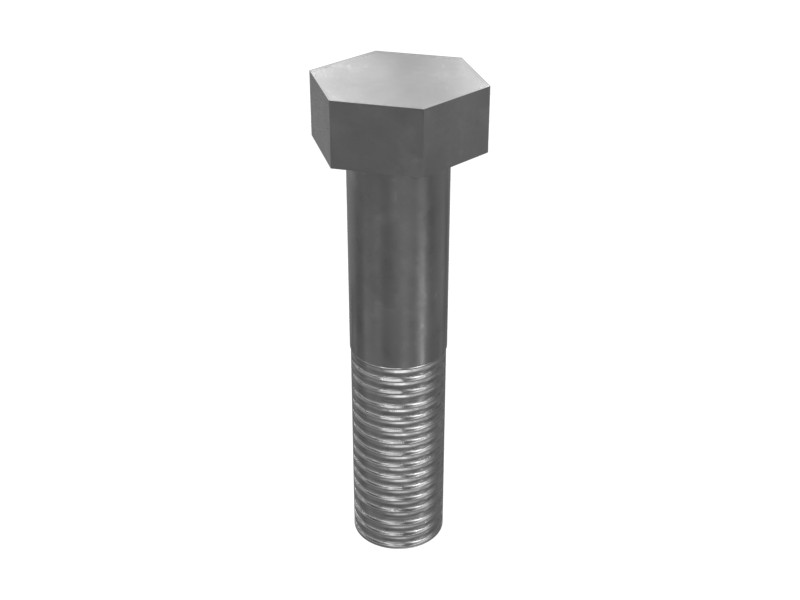

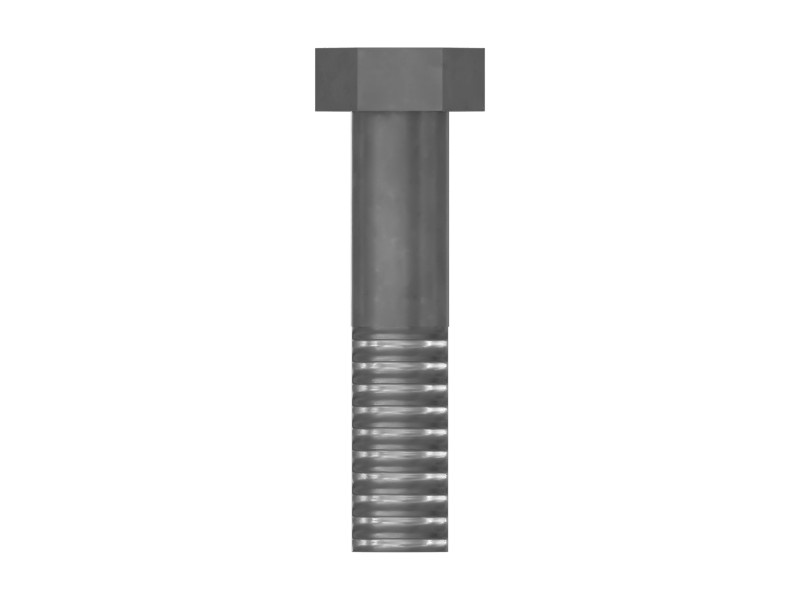

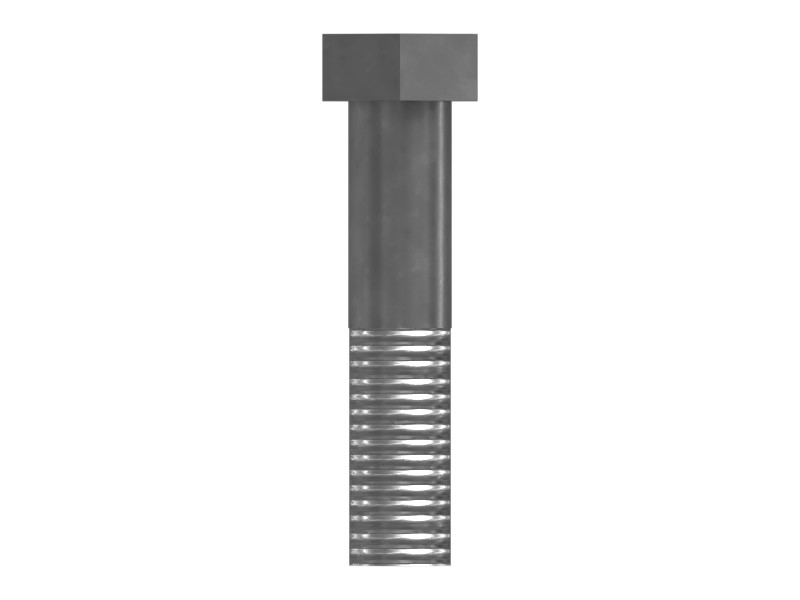

Track bolts are used to secure track shoes to the link assembly.
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | M20 mm (0 in) |
| Bolt Size | M20 mm (0.7874 in) |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M20X2.5 mm |
| Bolt Length | 90 mm (3.543 in) |

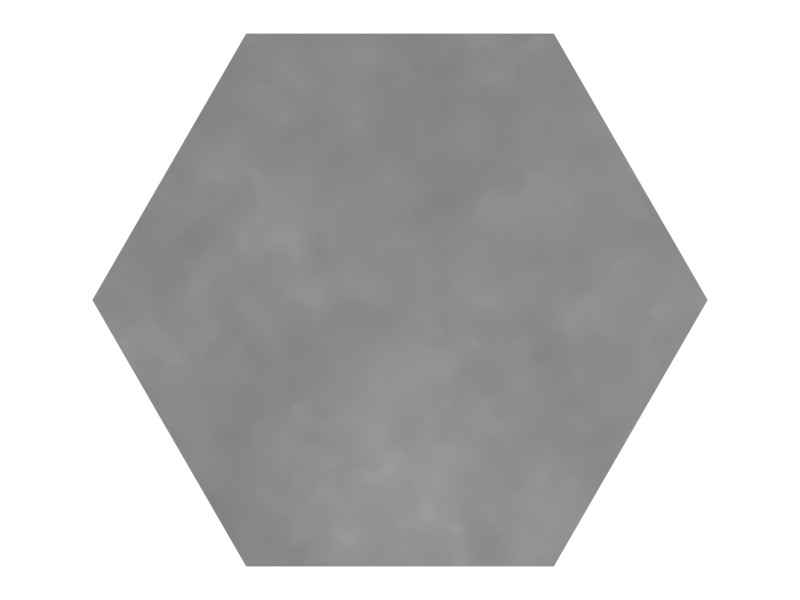

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 44 mm (1.732 in) |
| Material | STEEL |
Compatible Equipment
- Generator Sets: 3512E, 3512B, C4.4
- Track Loaders: 973K, 982, 993, 953D, 972, 992, 824C, 990K, 994K, 834H, 963, 826H, 995
- Cold Planers: PM620, PM622
- Compactors: CS12, CS7, CS11, 815, CB-64B, 834K, 816, CS56B, CS68B, CS12 GC, CS78B, CS74B, CS-563E, CW-34, CB-534D, CS-54, CS79B, CS54B, CS-533C, CB-564D, 814, CB10, CS-54B, CS-533E, CS64B
- Engines: C175-16
- Excavators: 349D2 L, 349D2, 303.5E2 CR, 303C CR, 308D, 330D L, 349F L, 120 GC, 352, 6020B, 355, 302.7CR, 416E, 350, 6040, 336F L, 336D L, 336D2 XE, 336F, 336F LN, 320C, 336E LH, 336F L XE, 330D, 336E H, 330C, 345C, 3508B, 3516B, 365C, 349, 345C L, M325D L MH, 352F, 365C L, 6060, 345D, 349D L, 6030, 336E
- Asphalt Pavers: AP655F, AP655F L
- Motor Graders: 18, 140 GC, 16, 16M3, 120, 14M, 349 GC, 14
- Dozers: D6T, D9R, D6R XL, D6R, D6R LGP, D6R III, D7E, D7, D9T, D8R, D8T, D7R, D6T LGP, D8, D10, D6R II
- Mini Excavators: 303.5E, 303.5C, 307D, 303.5D
- Wheel Loaders: 950, RM500B, 966L, 980, 966, 972H, 972L, 966K, 980H, 950H, 950L, 966H, 988K, 950G, 962G, 962L, 938K, 990H, 988G, 988H, 980L, 834, 836
- Off-Highway Trucks: 797F, 793D, 785, 773E, 789, 793, 789D, 794 AC
