Description
The bolt material hardness and thread design provide high strength and resistance to bolt thread stripping.
Specifications
| Thread Size | M8 mm (0 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M8X1.25 mm |
| Bolt Length | 100 mm (3.937 in) |

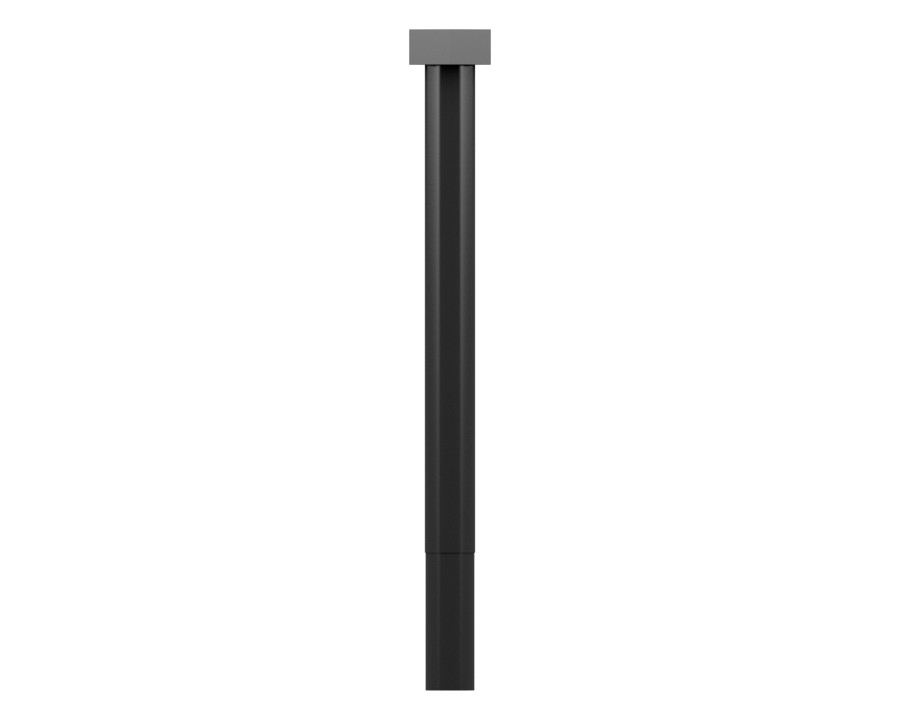

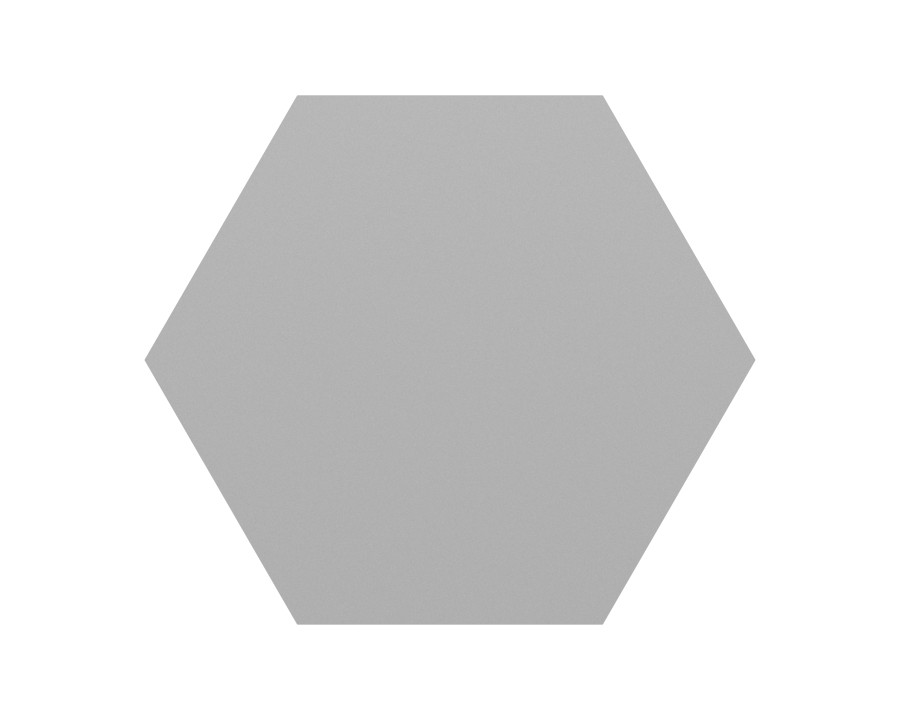

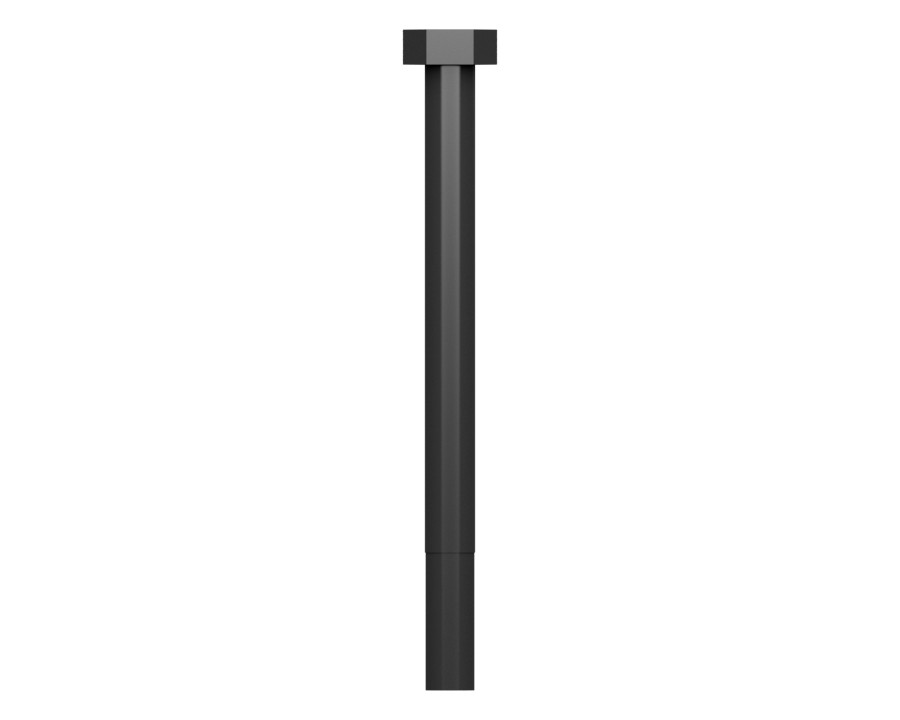

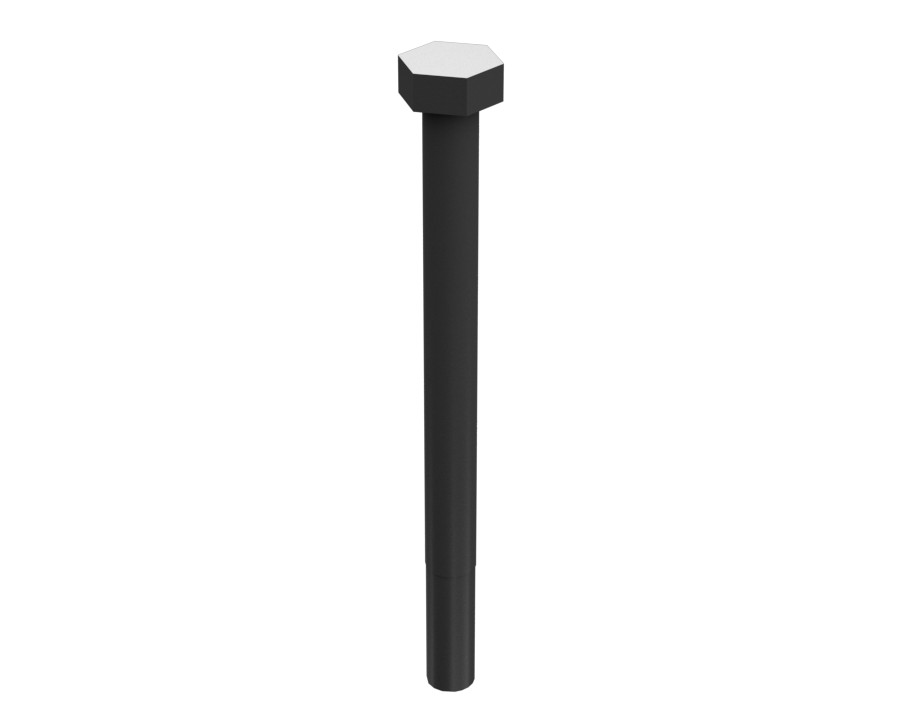

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 78 mm (3.071 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Generator Sets: 3512B, 3516C, C7.1, C4.4
- Track Loaders: 973K, 995, 982, 992, 993, 990K, 816F, 826G, 826K, 826H, 994K, 834H, 824G
- Cold Planers: PL83, PL87, SE50 VT, PL61, PM622, PM620, PL72, TH255C, TH360B, TH417D, SE60 VT XW
- Compactors: CB1.8, CB1.7, CP11 GC, 815, 814, CS7, CP12 GC, CB-64B, CB-534D, CS11, CS12, 816, CB-66B, CB-564D, CS12 GC, CB16, CS56B, C13B, CS78B, CS79B, CW-34, CP56B, CS68B, CS74B, CS54B, CP54B, 824K, CB-44B, CS-56, 834K, 825K, CB10, CB13, CB15, C-9, CS-54B, CS64B
- Engines: C27, C15, C32, C7, C13, C18
- Excavators: 305, 374F, 320D2, 320D, 390F L, 3126, 390D L, 374D L, 308D, 308E, 307E, 374, 349F L, 305 CR, 120 GC, 352, 6015B, 349, 395, 621K, 3516B, 390F, 374F L, 352F, 432, 312C, 6030, 6015, 320D FM, 3508B, 336E L, SE60 V XW, 637K, 314C, 336F L, 6040, 336F, 336E LN, 336F LN, 621H, 325C, 330C, 336E LH, 320D L, 320C, 311D LRR, 336F L XE, 311B, 336E H, 315C, 325B L, 329E L, 320B, 390D, 416E, 349E L, 349E L VG, 428F, 6020B, 416F2, 637E, 345B, 621G, 350 L, 385B, 345C L, 349E, 325B, 301.6, 330C L, 314D LCR, 330 L, 336E, 320D2 GC, 301.8, 325C L, 637G, 657G, 434F2, 313D, 312C L, 313F LGC, 329E, 311C, 312D, 312D L, 336D2 XE, 313D2 GC, 324D L, 330B, 315F LCR, 314D CR
- Asphalt Pavers: AD63, AP300F, AP355F, AP655F, AD45, AP655F L
- Skid Steer Loaders: 3126B, 262D, 246D
- Motor Graders: 140 GC, 14, 16, 18, 120, 14M, 12K, 160K, 140K, 16M3, 16M, 120H, 16H, 12H, 140H
- Wheel Excavators: M320, M315, MD6200, MD6310, IT14G
- Dozers: D11, D11T, D4, D10T2, D6N, D4G, D8N, D5N, D6T LGP, D6T, D8T, D3G, D9T, D5K2 XL, D10, D1, D8R, D9, D7, D6K2, D8, D10R, D11R, D10T, D5G, D5K LGP, D7E, D3K2 LGP, D5K XL, D7R II
- Mini Excavators: 308, 310, 305.5 GC, 307C, 307E2, 301.5, 307B, 308.5, 308E2, 307
- Wheel Loaders: 980, 938K, 966H, 924K, 966K, 950 GC, 926M, 990H, 910, 950H, RM500B, 834, 988K, 836, R1700 XE, R2900 XE, 972H, 928HZ, 966F, 924HZ, 972G, 924GZ, 950G, 928G, 962G, 938M, 906K, R1700K
- Off-Highway Trucks: 793F, 789D, 798 AC, 796 AC, 793D, 785D, 730, 745C, 785, 777, 794 AC, 773, 725C2, 740B, 777E, 725, 793, 789, 740 GC, 797F, 740, 745, 735, 770G, 777D, 773F, 772G, 775G
