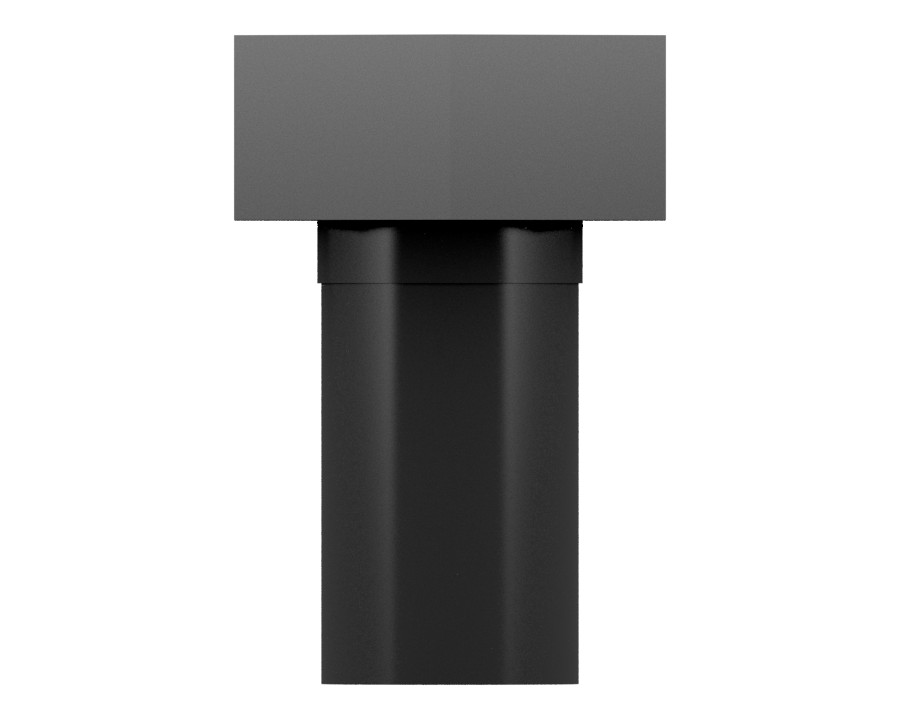

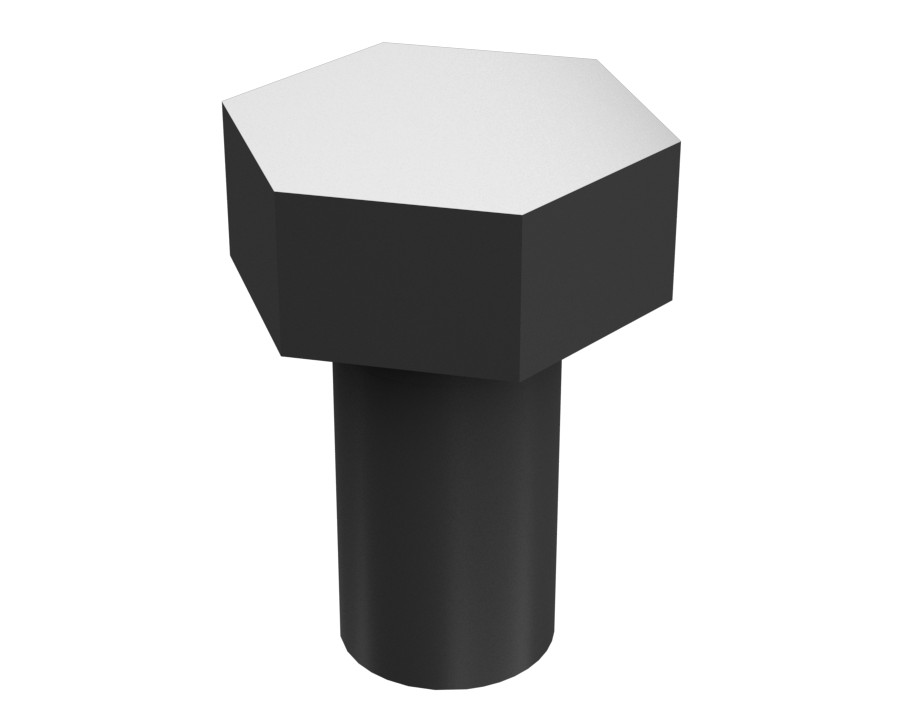

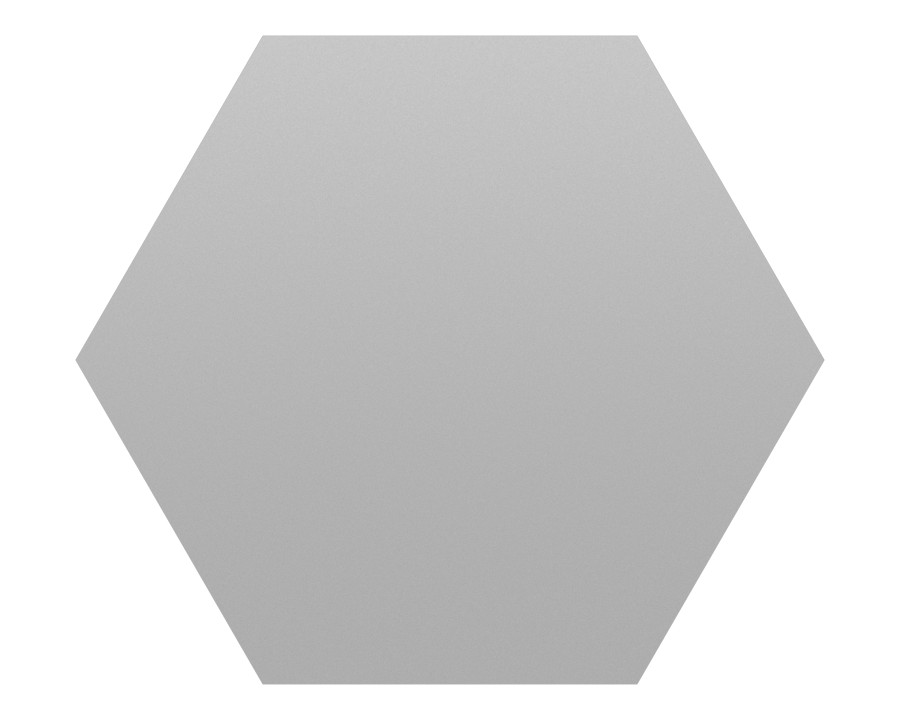

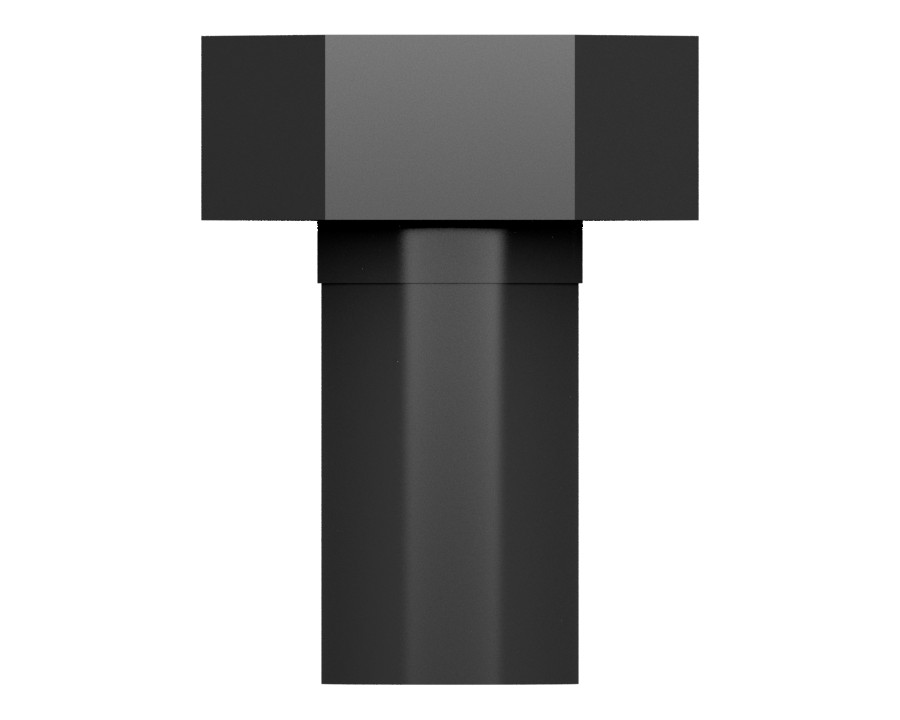

Description
The bolt material hardness and thread design provide high strength and resistance to bolt thread stripping.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Size | M8 mm (0 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M8X1.25 mm |
| Bolt Length | 14 mm (0.551 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 3 mm (0.098 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Track Loaders: 972, 993, 963D, 953D
- Cold Planers: PM622, PM620, TH417D, PL61
- Compactors: CS56B, CS68B, CS12, CB-64B, CB-534D, CB-66B, CS74B, CP54B, CS-56, CB16, CS54B, CB-14B, CB-564D, CS12 GC, CS7, CB2.7 GC, CB2.5 GC, CC2.7 GC, CS11, CB-14, CS-583D, CS78B, CS-563E, CP56B, CW-34, CP12 GC, CP11 GC, CB2.7, CB2.5, CB2.9, CS79B, CS-54, CB-335D, CB10, CB15, CB13, CS64B, CS-54B, CS-533E
- Engines: C13, C7, C32, C27
- Excavators: 336D, 320D2, 326D2 L, 336D2, 329D2 L, 326D2, 3126, 320D, 329D, 307E, 308D, 329D2, 303.5E2 CR, 305C CR, 303C CR, 303, 307.5, 308E, 374D L, 374F, 349D, 390F L, 306E2, 349D2, 349D2 L, 390D L, 305, 330D L, 305E2 CR, 313, 349F L, 330C L, 325C, 315D L, 320, 320C, 320D L, 312D2 GC, 324D L, 336E L, 320B, 312D, 325D L, 320C L, 329D L, 313D2, 320 GC, 336D L, 313D2 GC, 313F L, 336F, 330D2, 320D2 L, 318D L, 320D2 GC, 328D LCR, 311D LRR, 305 CR, 302.7CR, 320D3 GC, 301.8, 323 GX, 349, 320D3, 315C, 318D2, 323D L, 323D2 L, 336D2 L, 312C, 336F L, 330C, 326GC, 329E L, 312D2 L, 326D L, 313D2-GC, 325, 326, 6040, 325D, 320E, 312E L, 314C, 323, 315F LCR, 320D RR, 330D2 L, 312D L, 335F LCR, 336F L XE, 314D CR, 336E LH, 312E, 320 GX, 352, 301.6, 323 GC, 326 GC, 303CR, 303.5CR, 320D FM, 312C L, 312D2, 313D, 318D2 L, 330D, 320D GC, 336F LN, 311C, 324D, 323D, 314D LCR, 311B, 329E, 323D2, 312F, 336E, 336E LN, 323GC, 637K, 657G, 365B L, 637G, 390D, 349D L, 365B, 345C, 385C L, 385B, 385C, 621H, 428F, 349E L, 374F L, 365C, 345C L, 390F, 345D L, 349E, 340D L, 621G, 621K, 352F, 365C L, 345D, 349E L VG, 325C L, 340D2 L, 385C FS, 336D2 GC, 336D2 XE, 333 GC
- Asphalt Pavers: AP-600D, AP355F, AP655F, AP300F, AP655F L
- Skid Steer Loaders: 3126B, 313D2 LGP
- Motor Graders: 160K, 16M, 14, 18, 14M, 120, 16, 316F, 140K, 16M3
- Wheel Excavators: M315, MD6250, M320, MD6310, M315D, M322D, M313D
- Dozers: D3K2 LGP, D5K2 XL, D11, D7R II, D5G, D6K2, D5K LGP, D1, D10, D7E, D3G, D5K XL, D4G, D7R
- Mini Excavators: 306.5, 307B, 303.5C, 301.7CR, 308, 307D, 308E2, 302CR, 301.5, 305.5 GC, 305.5E2, 307E2, 303.5D, 306, 307, 310, 307C, 305.5E, 308.5
- Wheel Loaders: 966, 950H, RM400, 966H, 972H, 962G, 966K, 972G, 990H, 938K, 950G, 980H, 924K, 972L, 966L, R2900 XE
- Off-Highway Trucks: 789D, 793D, 785D, 793, 730, 735, 740, 777, 725, 785, 789
