Description
The bolt material hardness and thread design provide high strength and resistance to bolt thread stripping.
Specifications
| Thread Size | M6 mm (0 in) |
|---|---|
| Thread Direction | RH |
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Bolt Length | 60 mm (2.362 in) |

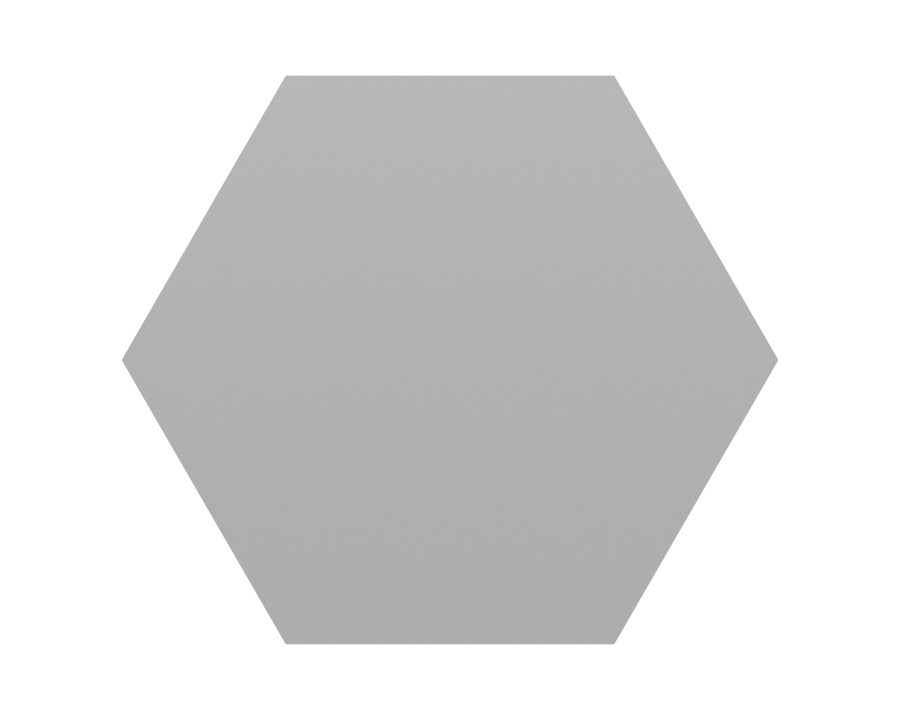

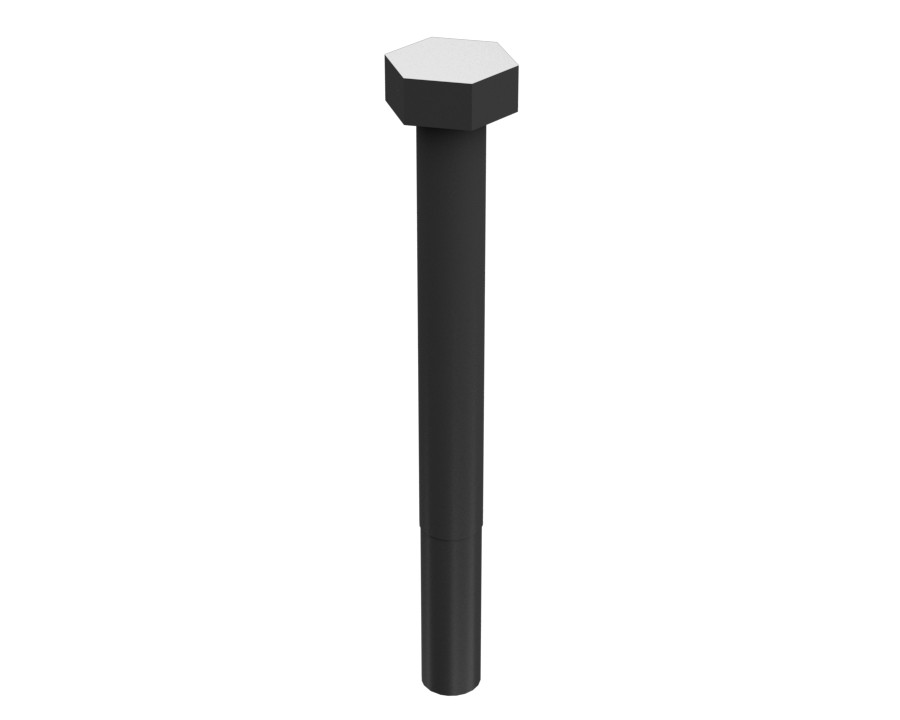

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 3 mm (0.118 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C, 3512B, C4.4, 3512E, C2.2DE18E3, C3.3DE33E0, G3516, C7.1
- Track Loaders: 953, 995, 982, 990K, 826H, 824G, 994K, 834H, 963D, 826G, 963, 993, 992
- Cold Planers: PM620, PM622, SE50 VT, PL83, TH360B
- Compactors: CB1.8, CB1.7, 834K, CS68B, CS12, CB-334D, CS78B, CB-335D, CB-14, CS-56, CS-563E, CB-564D, CB-434D, CB-534D, CB-24B, CS-533C, CW-34, CB-44B, CB-34B, CP56B, CS56B, CS54B, CS-54, CC-34B, CS11, CS-583D, CS79B, CP54B, CB2.9, CB16, CB-36B, CW-16, CB2.7, CB2.5, CS74B, CB-66B, CP11 GC, CP12 GC, CB-64B, CB2.5 GC, CC2.7 GC, CB2.7 GC, CS7, CS12 GC, CB15, CB10, CB13, CS-54B, CS-533E, CS64B
- Engines: C32, C15, C13, C27, C175-16, C18
- Excavators: 320D, 307E, 374F, 390F L, 305, 330, 349F L, 6030, 345 GC, 340, 6015, 6040, 324D L, 330C L, 325B L, 336E L, 323D L, 336F L, 312C, 320D GC, 336F LN, 336F L XE, 320E, 320B, 312C L, 336F, 323D, 320D FM, 329E, 312D L, 330C, 324D, 336E LH, 320D L, 336E, 329E L, 312D, 336E H, 312F, 313F L, 336E LN, 330B, 315D L, 335F LCR, 330 L, 312E L, 315C, 312E, 311B, 374F L, 3516B, 349E L VG, 621K, 349E L, 385B, 6020B, 621H, 6060, 3512C, 345C L, 352F, 390F, 349E, 3516E, 6015B, 432, 345B, 637K, 365B, 345C, 365B L, 3508B, 120 GC, 352, 312 GC, 312 GX, XQP200, M325D L MH
- Asphalt Pavers: AP355F, AP655F, AP-600D, AP300F, AP655F L
- Skid Steer Loaders: 226B, 279C, 262C, 299D3 XE, 226B3, 262D, 236D, 236, 236D3, 246D, 272D3 XE, 242D3, 246C, 216B3, 236B3, 259D3, 262D3, 272D3, 289D3, 246D3
- Motor Graders: 18, 16, 16M, 14M, 16M3, 14, 316F
- Wheel Excavators: M315, MD6200, MD6310, M315D2, M315D, M320, M320D2, M313D, M322D, M317D2, MD6250, M315GC
- Dozers: D11T, D10T2, D10, D3K2 LGP, D4, D9T, D11, D10T, D6R III, D5K2 XL, D6T LGP, D7R II, D5K XL, D6T, D1, D7R, D6R, D8R, D9, D5K LGP, D8T, D6G, D6R XL, D6R LGP, D7E, D6R II
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 308
- Wheel Loaders: R2900 XE, M314, RM400, 910, 924HZ, 980H, 980G, 972G, 928G, 962G, 928HZ, 950G, 924GZ, 988G, 988H, 986H, 980L, 966H, 990H, 836, 988K, 926M, RM500B, 834, 980, R1700K
- Off-Highway Trucks: 777, 793F, 725, 730, 797F, 773, 775G, 793, 796 AC, 798 AC, 789, 794 AC
