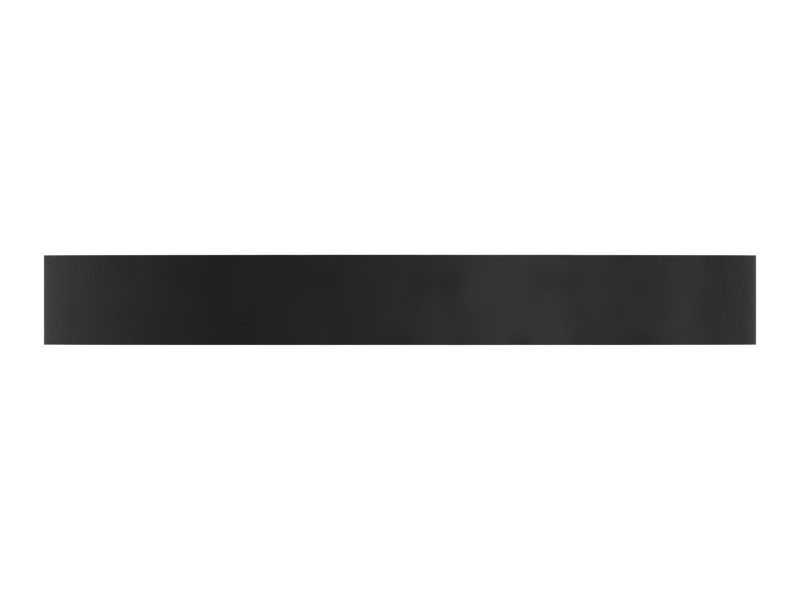

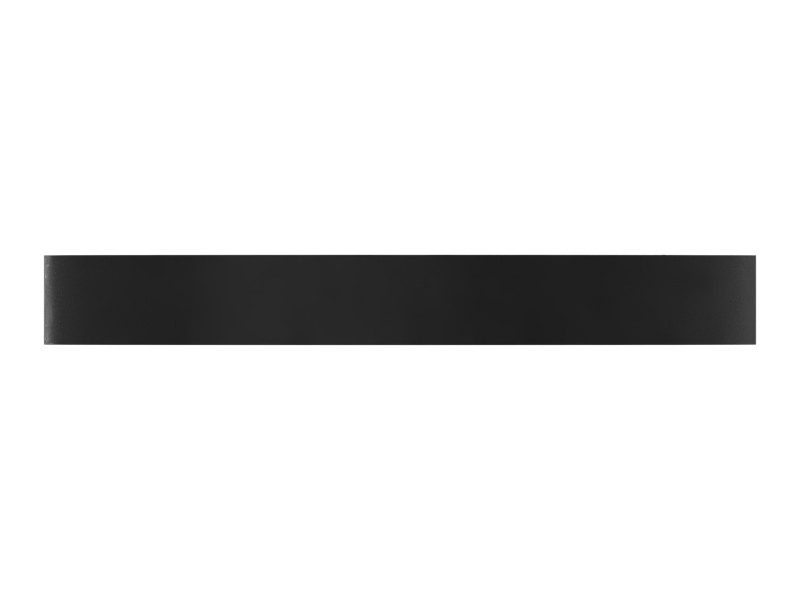

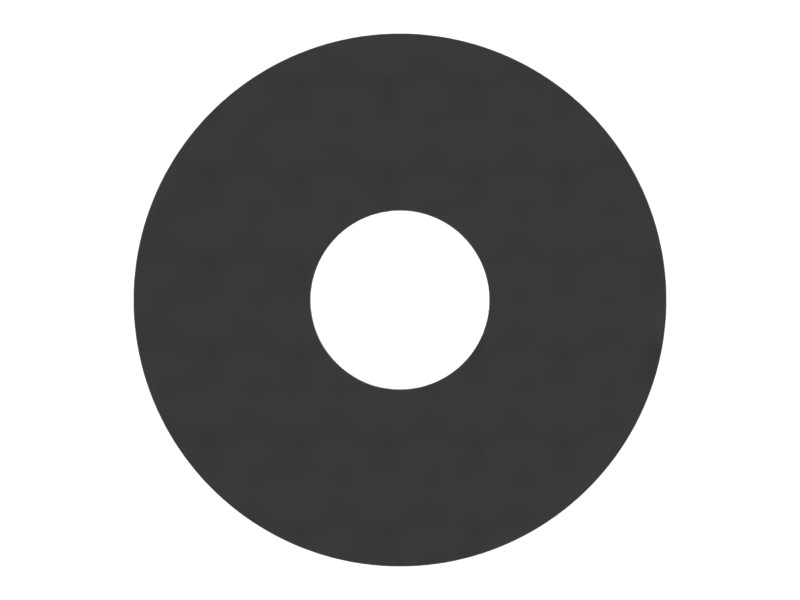

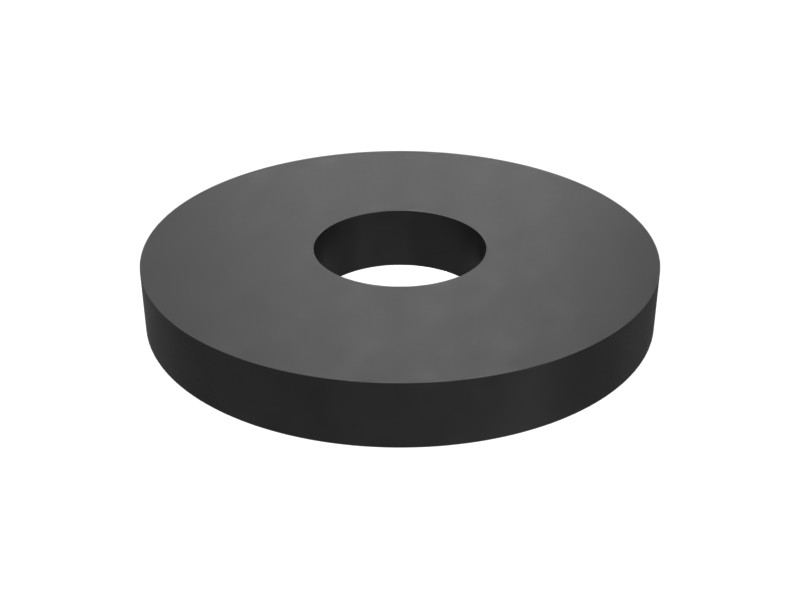

7X-0618 13.5 mm ID Hardened Washer

Cat® hard washers are rigid, flat discs that distribute loads evenly and prevent surface damage during fastening

Quantity

Description

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.

Coating Finish Note	Caterpillar is changing many washers from zinc plating to a zinc flake coated finish. The new coating increases corrosion protection to 720 hours. While existing stock of the current finish is being used up, you may receive washers with either finish during the sell-through period.
Inside Diameter (ID) – 1	13.5 mm
Outside Diameter (OD) – 2	40 mm
Outside Diameter	40 mm (1.575 in)
Inside Diameter	13.5 mm (0.531 in)
Surface Finish	Zinc Flake
Thickness – 3	5 mm
Hardened	Yes
Material	HARDENED STEEL
Gasket Type	Flat Washer
Fits Bolt Size	M12 mm (1/2 in)
Coating	Zinc flake provides moderate to high corrosion protection and repeatable assembly performance through built-in lubrication. Salt spray resistance: 720 hours with no red rust. Coating color – black (M12 and smaller), gray (larger than M12).
Thickness	5 mm (0.197 in)

Generator Sets: C4.4DE88E0, C7.1, C9, C7.1DE200E, C4.4, 3516C
Track Loaders: 994K, 826H, 963, 834H, 826G, 993, 982, 995, 826K, 972, 992, 824C
Cold Planers: PL87, PL61, PM622, PM620
Compactors: C9.3B, C13B, 825K, 824K, C-15, CB10
Engines: C27, C15, C11, C13, C32, C18
Excavators: 336D2, 303, 303.5E2 CR, 305, 336D, 349D2 L, 349D, 305C CR, 349D2, 330D L, 305E2 CR, 3516B, 6060, 320C, 325C, 330C, 336D L, 336D2 XE, 330C L, 315C, 336D2 L, 325B L, 320B, 416E, 345D L, 345C L, 345C, 349D L, 416F2, 428F, 340D2 L, 330D, 325C L, 336D2 GC, 320C L, 312C, 312C L, 330B, 637G, 637E, 120 GC, 345B, 325B, 345D, 340D L, 340
Asphalt Pavers: AP655F, AP-600D, AP655F L, AD63
Skid Steer Loaders: 232D, 24
Motor Graders: 120H, 160K, 16M3, 12H, 14M, 12K, 140H, 140K, 14, 140 GC, 16M, 18, 16
Wheel Excavators: MD6250, MD6200, M313D, IT14G, MD6310
Dozers: D10T2, D11N, D11T, D10T, D11R, D10N, D3K2 LGP, D11, D10R, D7R II, D5H, D7E, D9R, D5G, D9T, D6N, D3G, D6M, D8T, D6K2, D6R II, D6R, D7R, D6T, D5K2 XL, D8R, D4G, D9N, D1, D4, D10, D9, D8, D6R XL
Mini Excavators: 307B, 303.5, 306, 305.5, 303.5E, 303.5D, 305.5E, 303.5C
Wheel Loaders: 950, 938K, 924K, 950H, 992C, 988H, 988G, 992D, 962G, 928G, 926M, 980H, 966H, 950G, 966L, 990H, 980L, 938M, 962L, 966, 910, 972L, 950 GC, 980, 924GZ, 972H, 966K, 928HZ, 924HZ, 972G, 950L, 836, 980G
Off-Highway Trucks: 773E, 797F, 735, 793F, 745, 773F, 770G, 772G, 740, 785D, 773, 777, 785, 777E, 745C, 740B, 777D, 775G, 740 GC

Machine Model	120 GC, 120H, 12H, 12K, 14, 140 GC, 140H, 140K, 14M, 16, 160K, 16M, 16M3, 18, 232D, 24, 303, 303.5, 303.5C, 303.5D, 303.5E, 303.5E2 CR, 305, 305.5, 305.5E, 305C CR, 305E2 CR, 306, 307B, 312C, 312C L, 315C, 320B, 320C, 320C L, 325B, 325B L, 325C, 325C L, 330B, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340, 340D L, 340D2 L, 345B, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 3516B, 3516C, 416E, 416F2, 428F, 6060, 637E, 637G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 773, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 793F, 797F, 824C, 824K, 825K, 826G, 826H, 826K, 834H, 836, 910, 924GZ, 924HZ, 924K, 926M, 928G, 928HZ, 938K, 938M, 950, 950 GC, 950G, 950H, 950L, 962G, 962L, 963, 966, 966H, 966K, 966L, 972, 972G, 972H, 972L, 980, 980G, 980H, 980L, 982, 988G, 988H, 990H, 992, 992C, 992D, 993, 994K, 995, AD63, AP-600D, AP655F, AP655F L, C-15, C11, C13, C13B, C15, C18, C27, C32, C4.4, C4.4DE88E0, C7.1, C7.1DE200E, C9, C9.3B, CB10, D1, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D3G, D3K2 LGP, D4, D4G, D5G, D5H, D5K2 XL, D6K2, D6M, D6N, D6R, D6R II, D6R XL, D6T, D7E, D7R, D7R II, D8, D8R, D8T, D9, D9N, D9R, D9T, IT14G, M313D, MD6200, MD6250, MD6310, PL61, PL87, PM620, PM622
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM
