Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Inside Diameter | 7.2 mm (0.283 in) |
|---|---|
| Outside Diameter | 32 mm (1.26 in) |
| Material | Alloy Zinc |

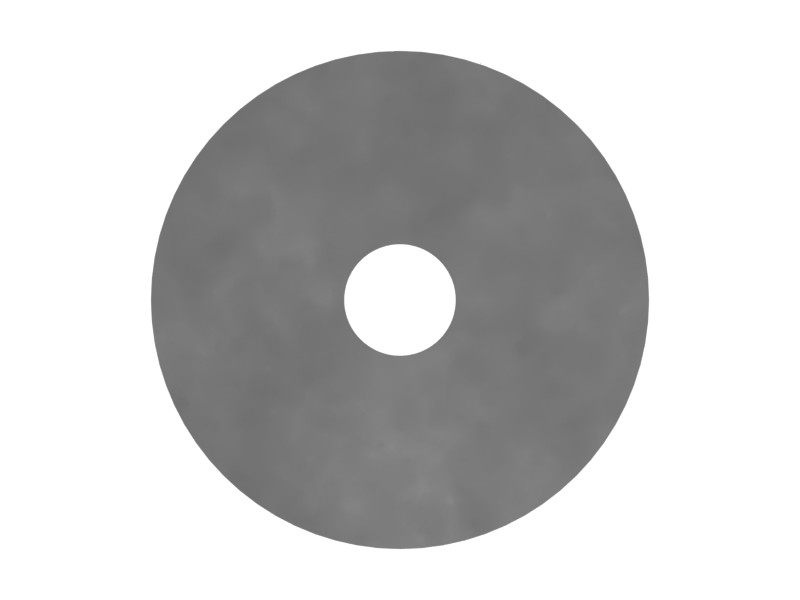

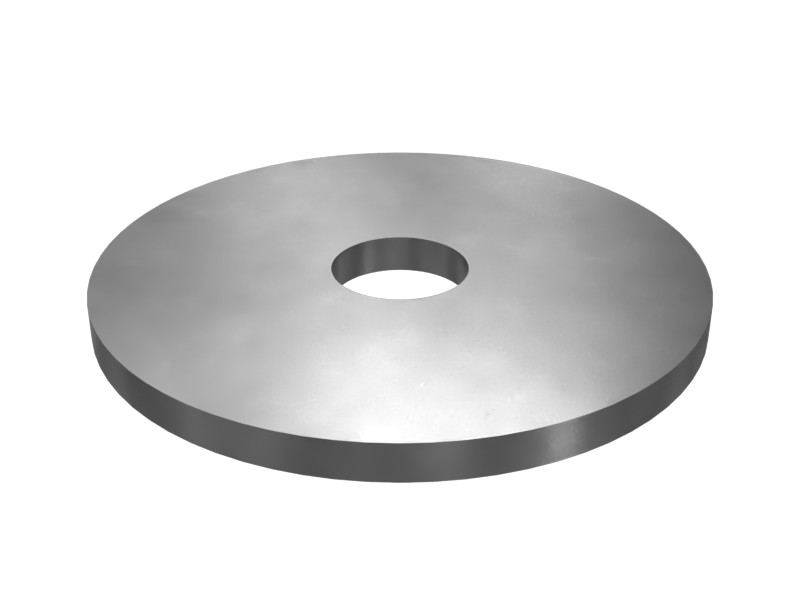

| Gasket Type | Flat Washer |
| Fits Bolt Size | 1/4 in |
| Coating | Zinc plating provides low to moderate corrosion protection and electrical conductivity. Salt spray resistance: 96 hours with no white rust. Coating color – silver. |

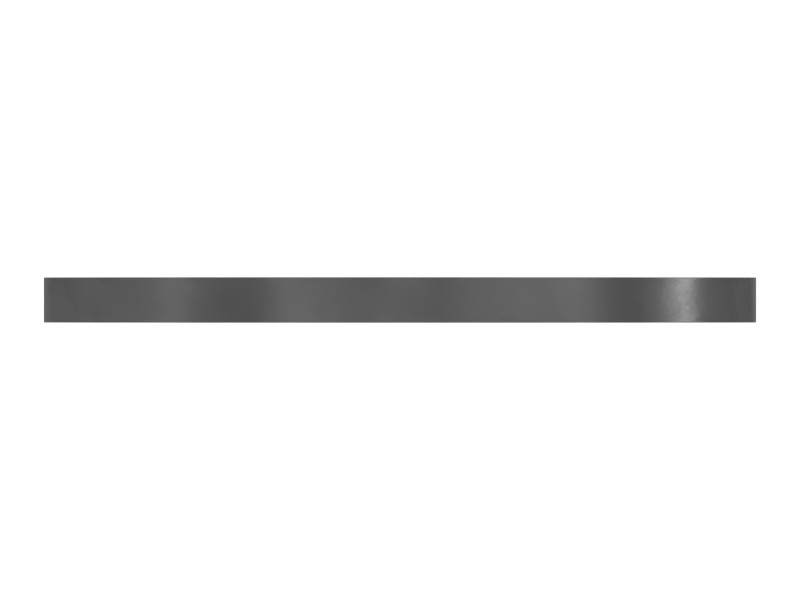

| Thickness | 2 mm (0.079 in) |
Compatible Equipment
- Generator Sets: 3406C, 3512B, G3516, 3406B
- Track Loaders: 824C, 826H
- Cold Planers: TH360B, PL72
- Wheel Excavators: IT14G
- Dozers: D8T, D9, D11T, D6T, D10T, D10T2, D11, D8, D7, D8R, D6T LGP, D9T, D10
- Excavators: 434F2, 3516B, 416F2, 432, 416E, 3512C, 3508B
- Wheel Loaders: 972G, 962G, 966F, 950G, 980G, 910
- Off-Highway Trucks: 777, 797F, 770G, 772G, 740B, 789D
Additional information
| Machine Model | 3406B, 3406C, 3508B, 3512B, 3512C, 3516B, 416E, 416F2, 432, 434F2, 740B, 770G, 772G, 777, 789D, 797F, 824C, 826H, 910, 950G, 962G, 966F, 972G, 980G, D10, D10T, D10T2, D11, D11T, D6T, D6T LGP, D7, D8, D8R, D8T, D9, D9T, G3516, IT14G, PL72, TH360B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
