Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.

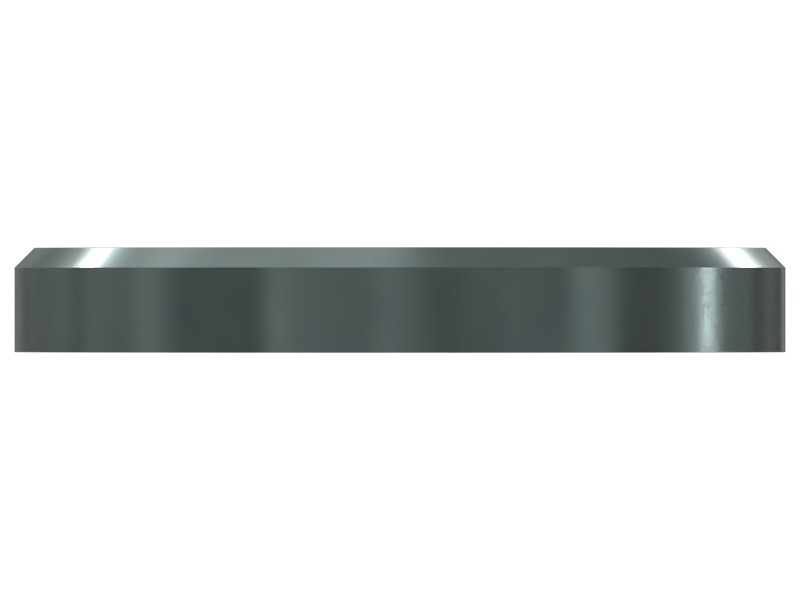

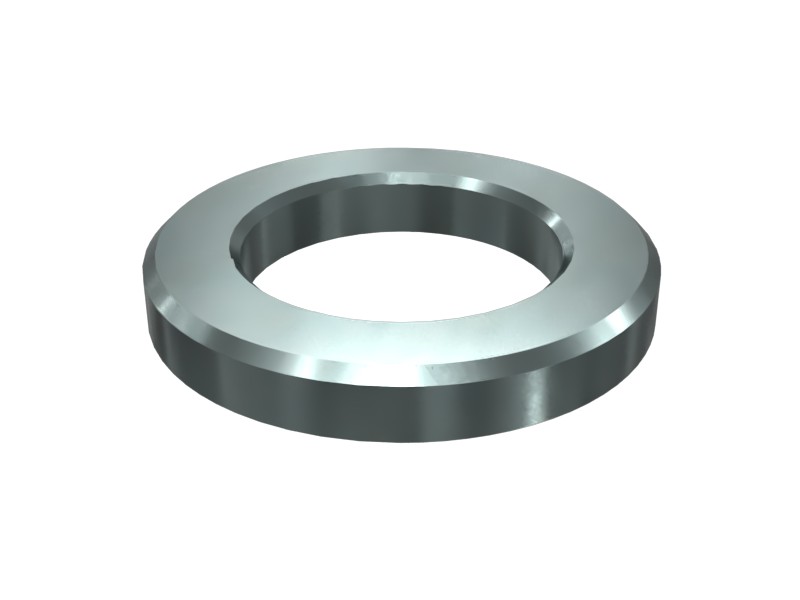

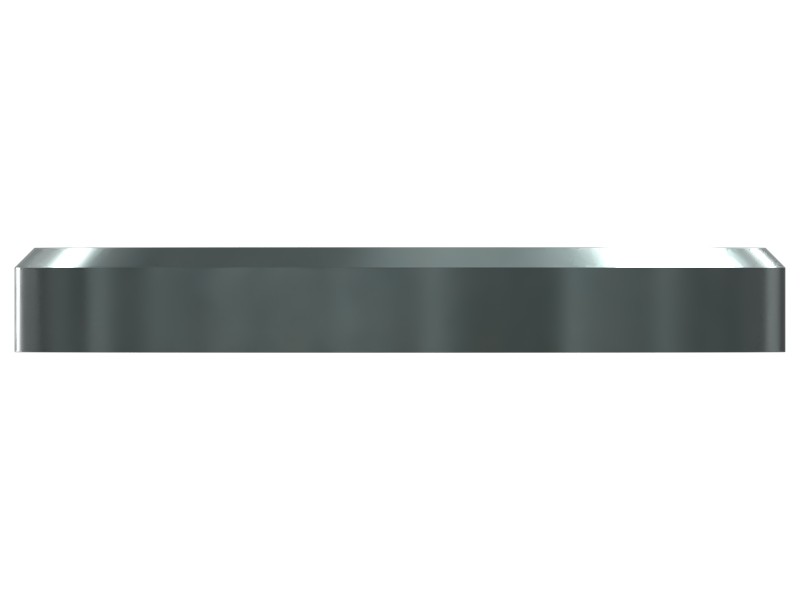

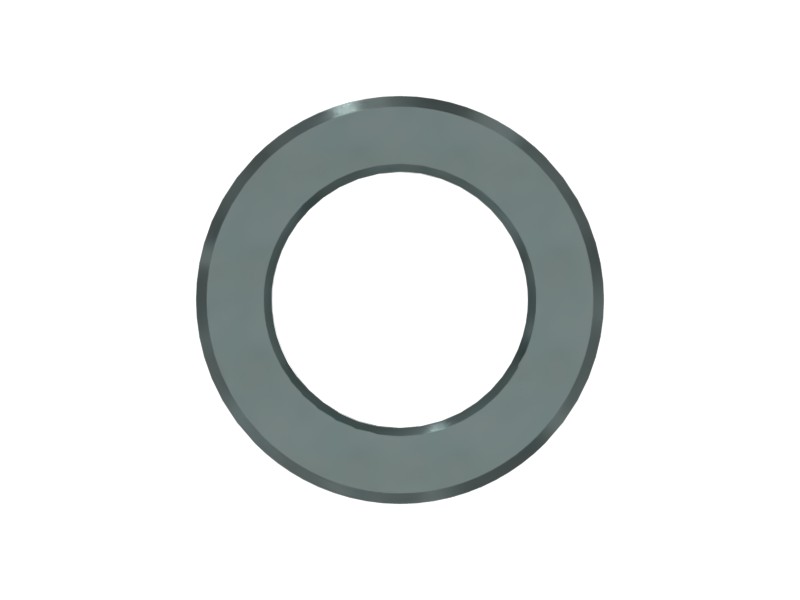

Specifications
| Inside Diameter | 10.2 mm (0.402 in) |
|---|---|
| Outside Diameter | 32 mm (1.26 in) |
| Material | Low Alloy Steel |
| Gasket Type | Flat Washer |
| Fits Bolt Size | M10 mm (3/8 in) |
| Coating | Zinc plating provides low to moderate corrosion protection and electrical conductivity. Salt spray resistance: 96 hours with no white rust. Coating color – silver. |
| Thickness | 2.5 mm (0.098 in) |
Compatible Equipment
- Generator Sets: 3512B, G3516C, G3516, C7.1
- Track Loaders: 953, 826K, 963K, 953D, 973K, 990K, 834H, 826G, 963D, 816F, 994K, 982, 963, 993, 972, 953K, 824C, 995, 824G, 826H, 992
- Cold Planers: PL83, PL61, TH360B
- Compactors: CS12, 825K, 834K, C13B, CS-583D, CS-563E, 824K, CS74B, CS-56, CS54B, CS-54, CP54B, CS68B, CB2.7 GC, CB2.5 GC, CP12 GC, CS11, 815, CP11 GC, CB16, CS12 GC, CP56B, CS78B, CS79B, CS56B, CB-66B, CB-64B, 816, 814, CB2.5, CB2.7, CB2.9, CC2.7 GC, CB13, CB15, CS-533E, CS-54B, CS64B
- Engines: C15, C13, C32, C18
- Excavators: 390F L, 390D L, 374F, 349D2 L, 320D, 330, 320D2, 336D2, 326D2 L, 326D2, 349D2, 306E2, 349D, 329D2 L, 336D, 329D, 329D2, 303.5E2 CR, 305, 349F L, 313 GC, 313, 316 GC, 330D L, 305E2 CR, 374, 352, 315 GC, 305 CR, 350, 326, 3508B, 345D L, 374F L, 345C, 428F, 349E L, 340D L, 385C, 349E, 352F, 385B, 637G, 621G, 345B, 637E, 355, 340, 336, 365C, 333, 313D2, 312 GC, 320 GC, 320 GX, 320, 323 GX, 320D3, 336 GC, 345 GC, 325C, 395, 330 GC, 320D3 GC, 3516E, 320C, 312 GX, 316 GX, 315, 330D2 L, 313D2 GC, 336D2 L, 336D L, 336E L, 330 L, 311D LRR, 325B L, 318D2 L, 336E, 330D, 323D L, 315C, 336F, 329D L, 325D, 313F LGC, 320E, 330D2, 323D2 L, 329E, 324D L, 323, 325D L, 349E L VG, 349, 385C L, 349D L, 390F, 330C L, 312D2 L, 320D FM, 320B, 311B, 320D2 L, 312F, 320D GC, 313D2-GC, 312D, 313D, 330GC, 3516B, 340D2 L, 365B, 345C L, 345D, 365B L, 320D2 GC, 336E LH, 312E L, 329E L, 385C FS, 390D, 434F2, 416F2, 313 GX, 336F LN, 320C L, 312D2, 330B, 312D2 GC, 325, 312C L, 318D L, 336F L, 312D L, 330C, 320D L, 637K, 326 GC, 323 GC, 335F LCR, 320D RR, 315D L, 313F L, 336E H, 312C, 350MHPU, 336D2 GC, 324D, 336F L XE, 336D2 XE, 312E, 326D L, 336E LN, 325C L, 323GC, 326GC, 325B, 311C, 335, 318D2, 3101, 333 GC
- Asphalt Pavers: AD63
- Skid Steer Loaders: 313D2 LGP, 24
- Motor Graders: 140 GC, 18, 16, 120, 14, 120H, 140H, 140K, 12K, 12H, 140G, 16M3, 14M, 160K, 16M, 349 GC, 316F
- Wheel Excavators: MD6200, M315D2, MD6310, M315GC, M315, MD6250, M320, M317D2, M320D2
- Dozers: D11T, D6T, D7R II, D6R, D8T, D9R, D7H, D6M, D5M, D5H, D6R II, D7R, D9T, D9N, D11R, D10T, D10R, D8R, D8N, D7E, D6R III, D10N, D10T2, D11, D6N, D5K LGP, D6R XL, D8, D7, D6T LGP, D9, D5K XL, D10
- Mini Excavators: 303.5, 308, 307B, 305.5E2, 307C, 306.5, 306, 305.5E, 305.5 GC, 305E2, 307D
- Wheel Loaders: 950, RM500B, 836, 950H, 924K, 966H, 966K, 938M, 924HZ, 988K, 972H, 928G, 986H, 992C, M314, 938K, 924GZ, 928HZ, 988G, 988F, 966, 950 GC, 980G, 966F, 980H, 980, 926M, 992D, 988H, 834
- Off-Highway Trucks: 740B, 740, 773E, 730, 725C2, 735, 793D, 772G, 725, 770G, 771D, 745C, 777D, 745, 789, 773, 798 AC, 785D, 794 AC, 789D, 785, 775G, 796 AC, 773D, 740 GC, 777, 793
