Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Thread Size | 1.000 mm (0.039 in) |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 1.000×8 mm |
| Bolt Length | 76.2 mm (3 in) |

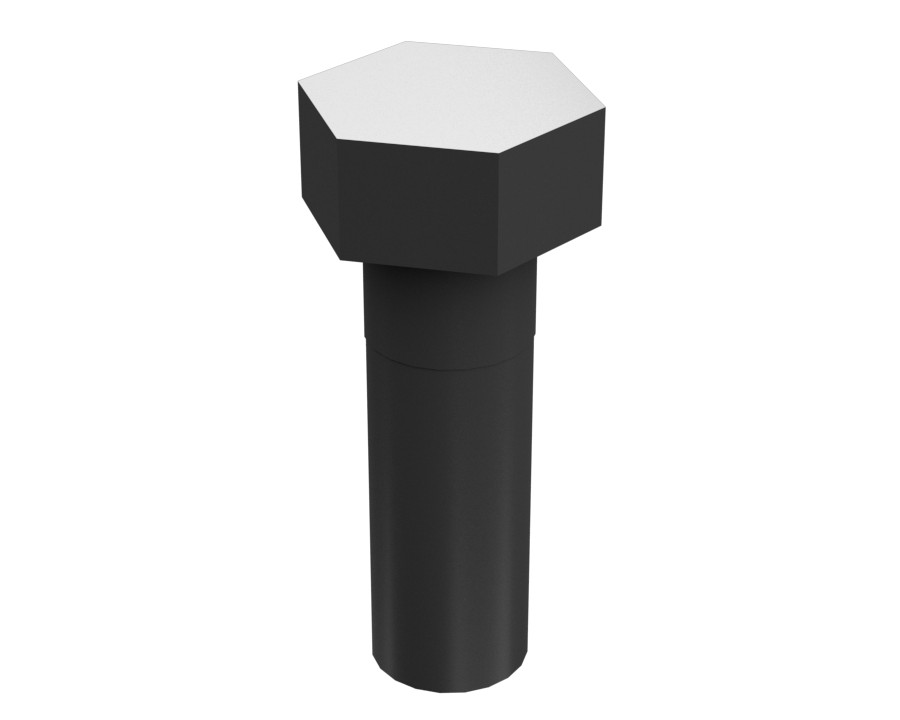

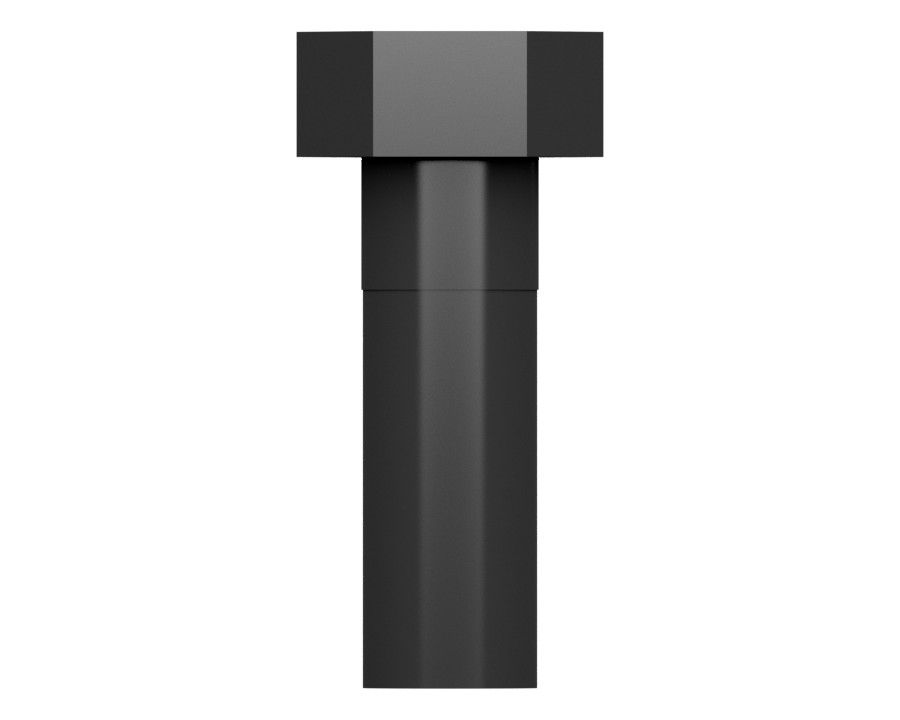

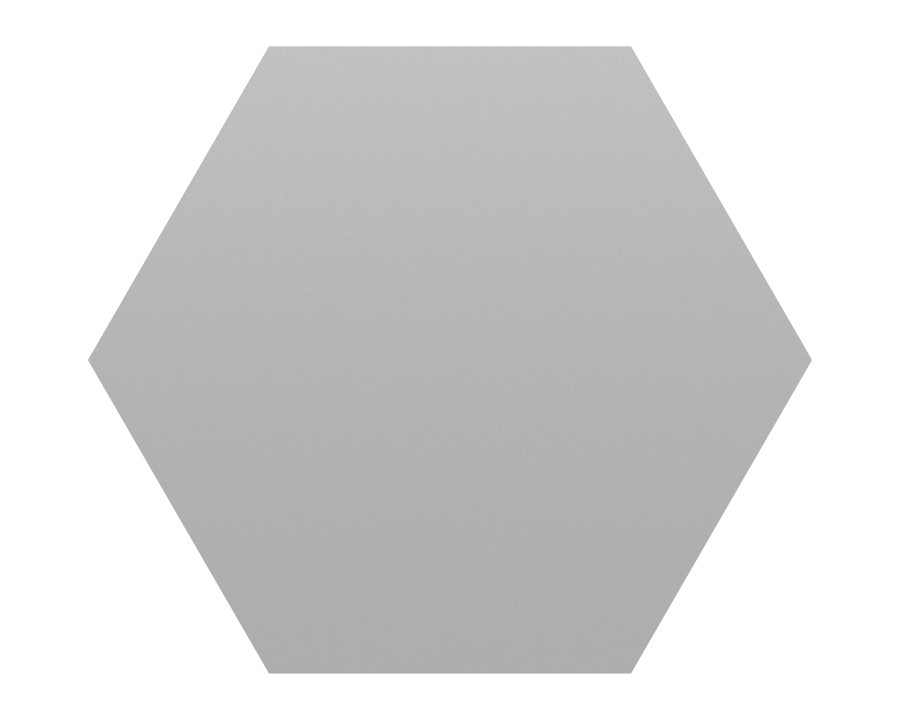

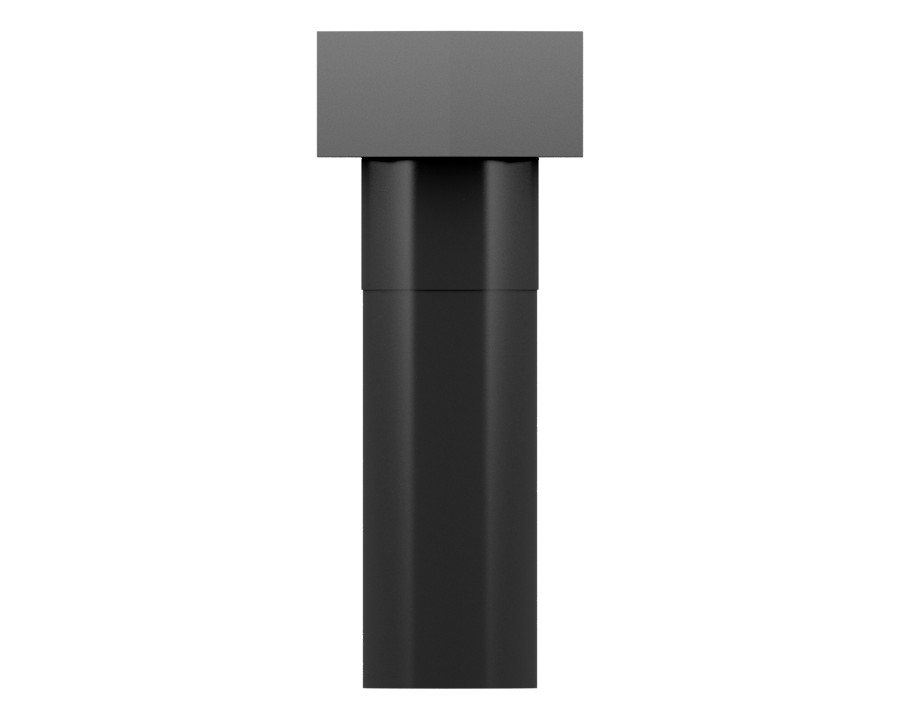

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 19.05 mm (0.75 in) |
Compatible Equipment
- Generator Sets: G3516, 3512E, 3516C, 3512B
- Engines: C175-16
- Dozers: D8, D6T, D6R II, D9R, D7R, D6R III, D6R, D3G, D6K2, D6T LGP, D3K2 LGP, D8R, D7R II, D5G, D6G2 LGP, D4G, D8T, D7H, D6G2 XL, D6G, D5K2 XL, D1, D4, D6R XL, D11T, D11R, D11N, D11, D6R LGP
- Excavators: 3508B, 3512C, 3516B
- Wheel Loaders: R1700 II, R1300G, 836, 992D, 992C
- Off-Highway Trucks: 7495
- Asphalt Pavers: AD45
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 7495, 836, 992C, 992D, AD45, C175-16, D1, D11, D11N, D11R, D11T, D3G, D3K2 LGP, D4, D4G, D5G, D5K2 XL, D6G, D6G2 LGP, D6G2 XL, D6K2, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7H, D7R, D7R II, D8, D8R, D8T, D9R, G3516, R1300G, R1700 II |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
