Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | 0.625 mm (0.025 in) |
|---|---|
| Thread Size (Diameter × Pitch) | 5/8×11 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Direction | RH |
| Locking Feature | None |
| Bolt Size | 5/8 in |
| Bolt Length | 50.8 mm (2 in) |

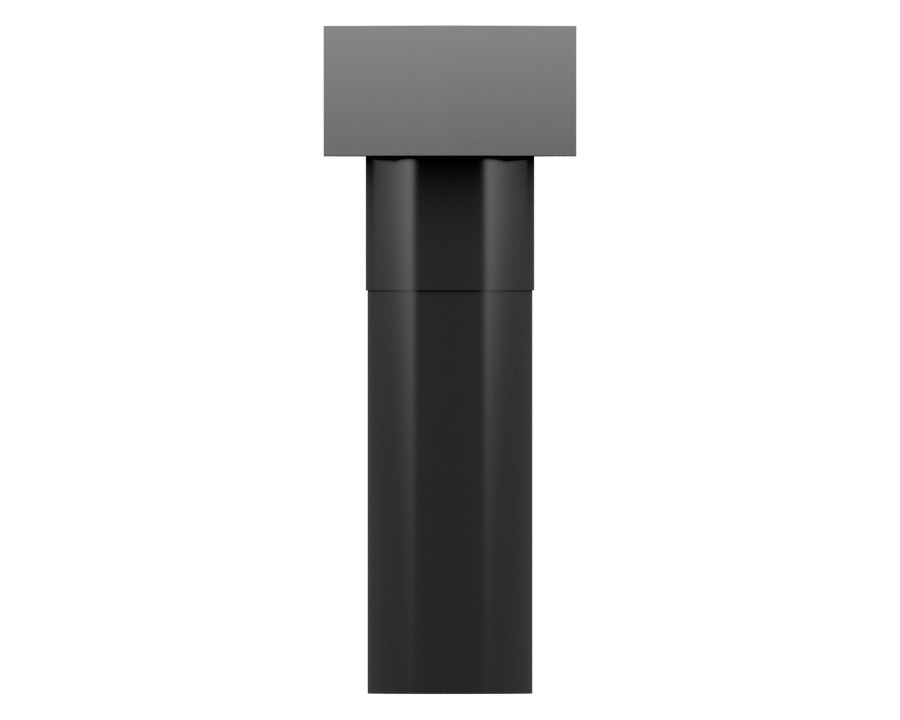

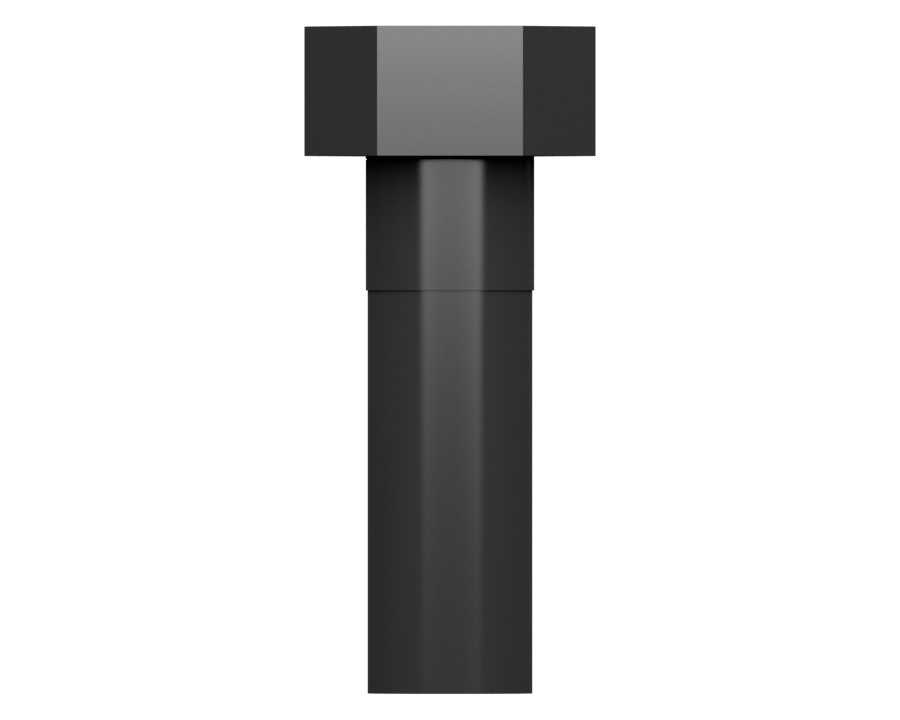

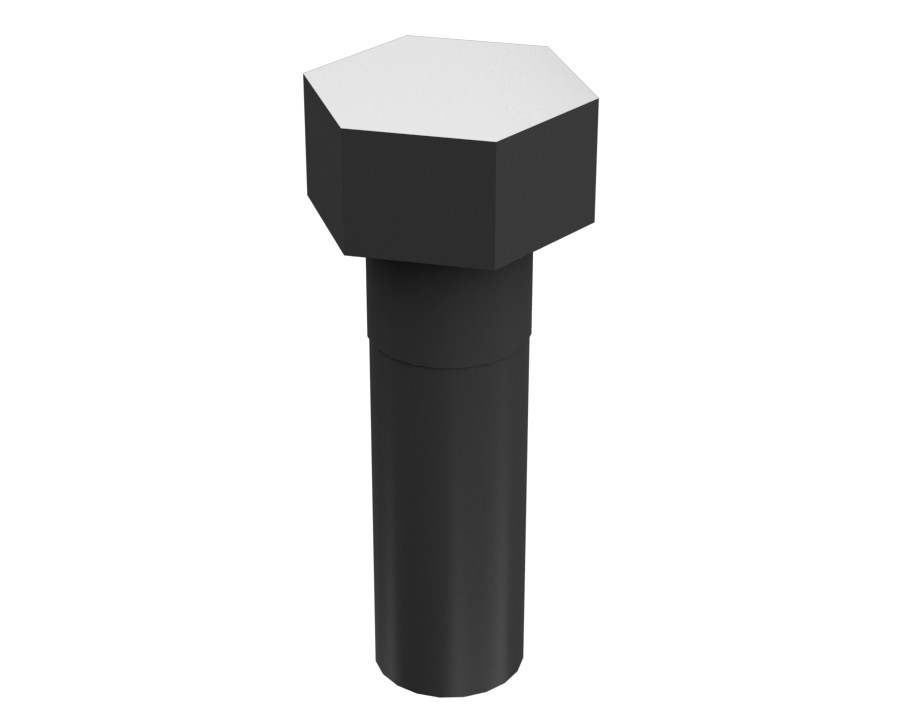

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 12.7 mm (0.5 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C, 3406C, 3512B, 3512E, 3406B, C9, G3516, C4.4
- Track Loaders: 963, 816F, 953, 824C, 992, 993
- Cold Planers: PM620, PL83, PL87, PM622, PL72, PL61
- Compactors: C9.3B, C-15
- Engines: C15, C32, C27, C18
- Excavators: 3456, 3516B, 120 GC, 3516E, 365B, 637E, 350 L, 3508B, 621G, 3512C, 345C, 330 L, 330B, 330C L, 637G, 657G, 345B, 325C, 325B L, 325C L, M325D L MH, 365B L
- Asphalt Pavers: AD30, AP-600D, AP655F, AD45
- Skid Steer Loaders: 236D, 232D, 246D, 262D, 226B3, 232D3, 226D3, 239D3, 272D3 XE, 299D3 XE, 272D3, 249D3, 236D3, 242D3
- Motor Graders: 16M, 14, 140 GC, 140H, 18, 140K, 120H, 140G, 12K, 14M, 12H, 16H, 120, 160K, 16M3, 16
- Wheel Excavators: MD6250, MD6310, IT14G, MD6200
- Dozers: D11T, D11R, D10R, D6R, D6R II, D7R II, D7R, D5H, D7H, D6T, D6T LGP, D8R, D9N, D6R III, D9R, D8N, D7G, D10N, D10T, D6R LGP, D7G2, D11N, D6R XL, D8L, D10, D10T2, D11
- Compact Track Loaders: 299D3
- Wheel Loaders: 924K, 906K, 938K, 836, 926M, 938M, 966F, 992C, R3000H, R1700G, RM400, RM500B, R1600H, R2900G, 988F, 992D, R1300G, R1700 II
- Off-Highway Trucks: 785D, 773E, 773F, 777D, 794 AC, 796 AC, 773D, 771D, 772G, 777E, 789D, 740B, 770G, 793F, 798 AC, 7495, 777, 773, 785, 789
