Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | 0.500 mm (0.02 in) |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Thread Direction | RH |
| Bolt Length | 165.1 mm (6 1/2 in) |

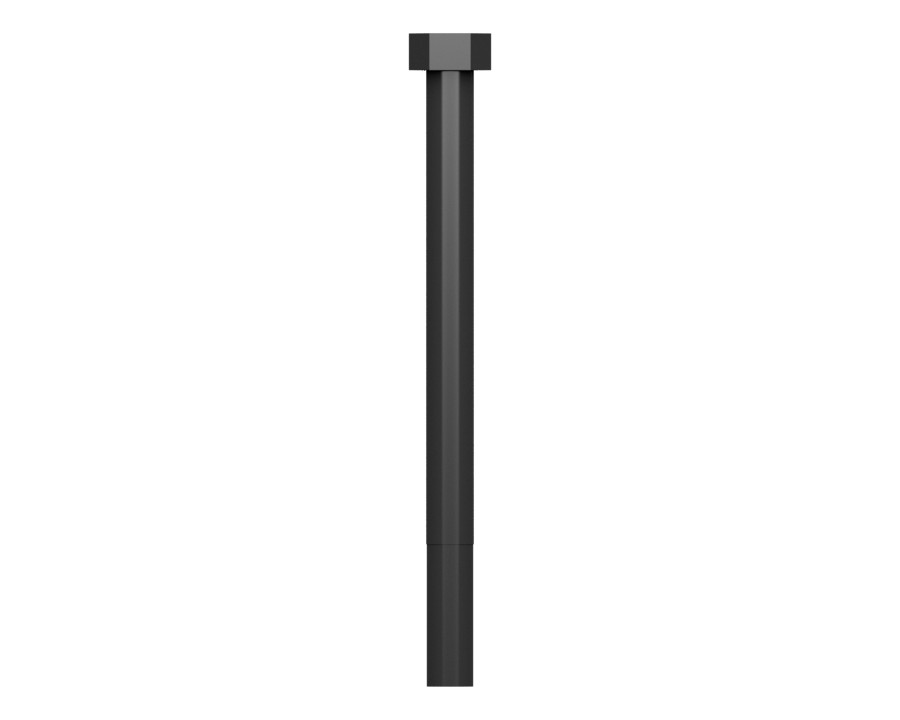

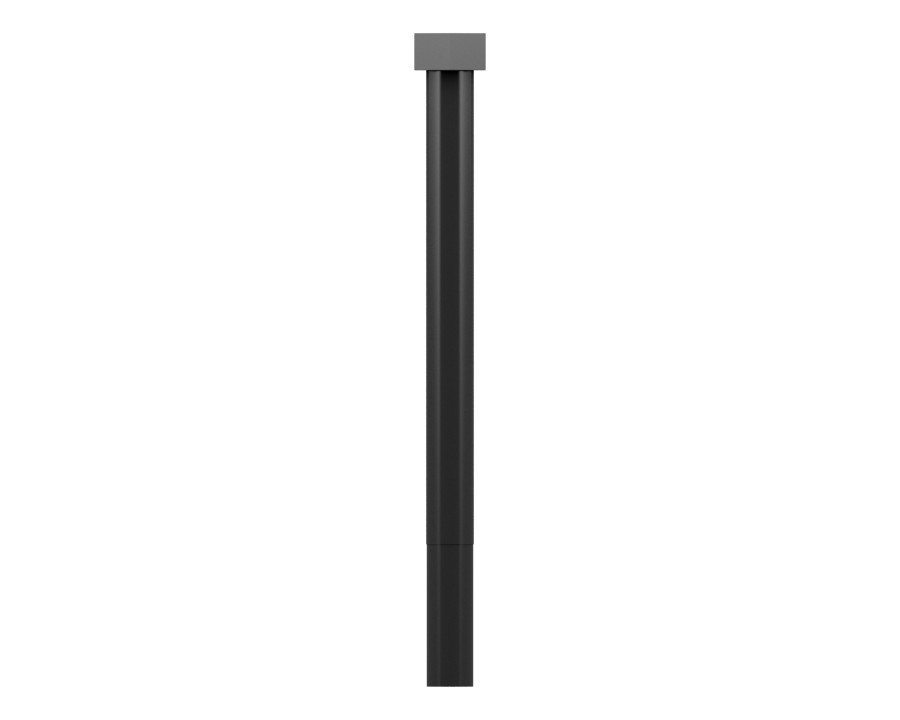

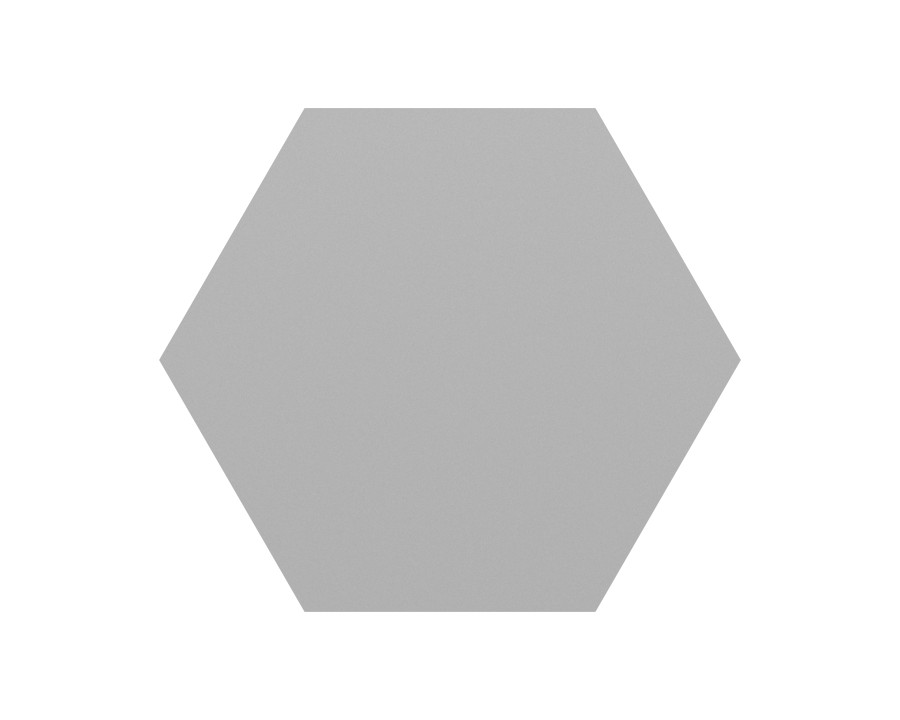

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 127 mm (5 in) |
Compatible Equipment
- Generator Sets: 3516C, C9, G3516, 3512E, 3512B
- Track Loaders: 963, 953
- Cold Planers: TH255C
- Compactors: CW-16, C-9
- Engines: C32, C7, C15, C18, C12, C175-16
- Excavators: 330, 329D, 336D, 330D L, 3512C, 333, 326, 3516B, 330 GC, 3516E, M325D L MH, 324D L, 336D L, 330C L, 324D, 328D LCR, 329D L, 325D L, 325C, 330C, 330GC, 325D, 637G, 637E, 3508B, 340D2 L, 340D L, 325C L, 326GC, 330D, 326D L, 326 GC, 333 GC
- Skid Steer Loaders: 3126B
- Motor Graders: 140K, 12K, 160K
- Wheel Excavators: MD6310, M320
- Dozers: D6R, D6R II, D9R, D7H, D8R, D11R, D11T, D11N, D10T, D10R, D10N, D7R, D6G2 LGP, D8N, D9T, D6G2 XL, D6R XL
- Wheel Loaders: 988F, 992D, 992C, R1700G, R1700 II, R1600H, 966F, 836, 950G, 924GZ, 928G
- Off-Highway Trucks: 794 AC
Additional information
| Machine Model | 12K, 140K, 160K, 3126B, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326GC, 328D LCR, 329D, 329D L, 330, 330 GC, 330C, 330C L, 330D, 330D L, 330GC, 333, 333 GC, 336D, 336D L, 340D L, 340D2 L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 637E, 637G, 794 AC, 836, 924GZ, 928G, 950G, 953, 963, 966F, 988F, 992C, 992D, C-9, C12, C15, C175-16, C18, C32, C7, C9, CW-16, D10N, D10R, D10T, D11N, D11R, D11T, D6G2 LGP, D6G2 XL, D6R, D6R II, D6R XL, D7H, D7R, D8N, D8R, D9R, D9T, G3516, M320, M325D L MH, MD6310, R1600H, R1700 II, R1700G, TH255C |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
