Description

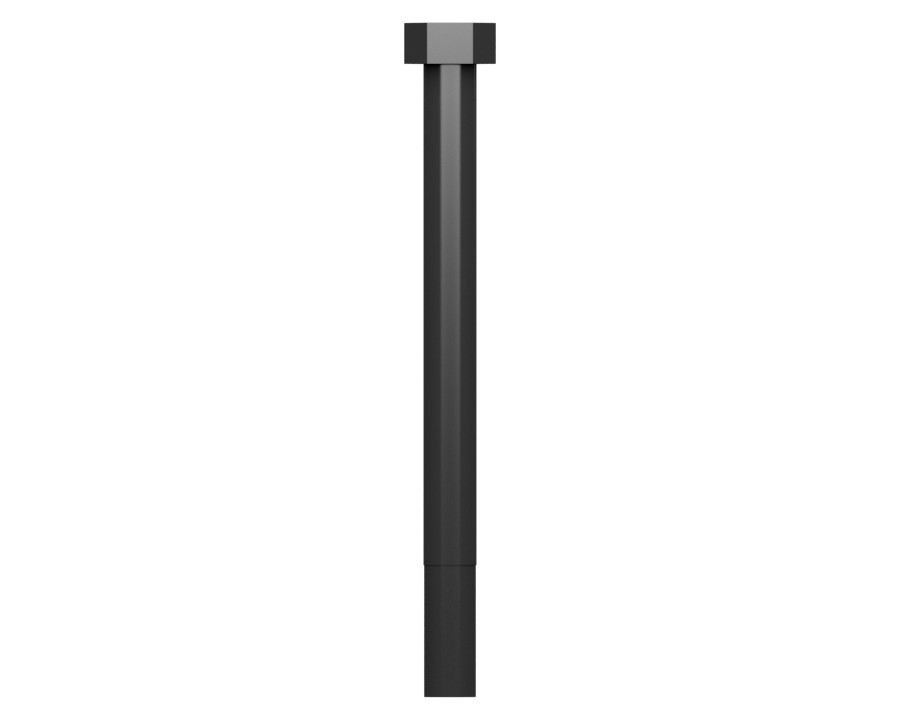

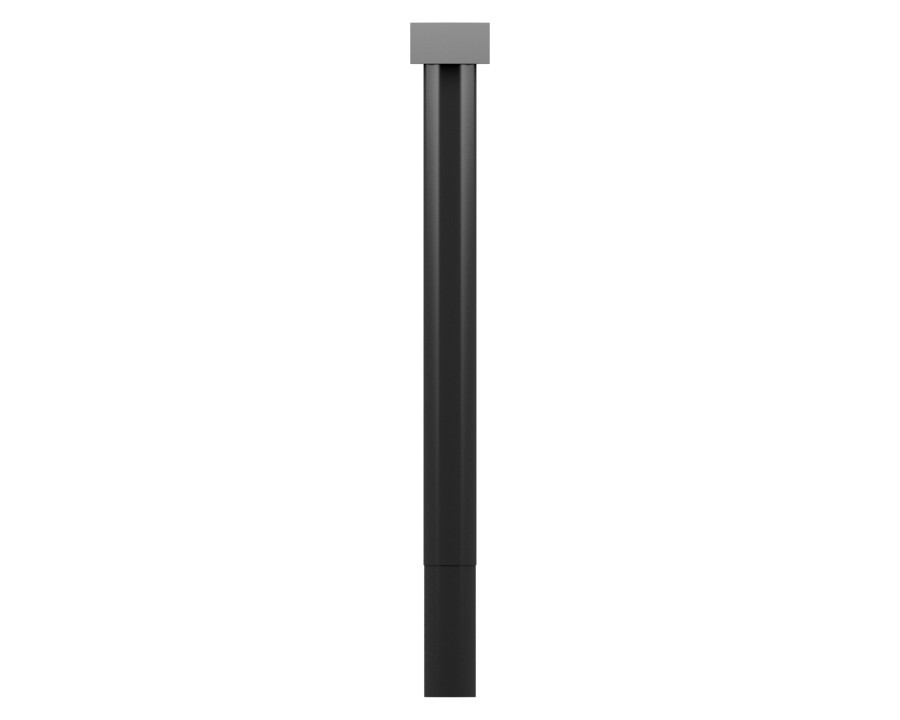

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size | 0.500 mm (0.02 in) |
|---|---|
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Direction | RH |
| Bolt Length | 152.4 mm (6 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 120.65 mm (4.75 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: C7.1, C9
- Track Loaders: 995, 994K, 824C, 963, 816F
- Cold Planers: PL61
- Engines: C15, C7, C27, C13, C32, C18
- Excavators: 3126, 330 L, 657G, 320B, 330B
- Asphalt Pavers: AD30, AD45
- Skid Steer Loaders: 3126B
- Motor Graders: 14M, 16H
- Wheel Excavators: MD6310
- Compactors: C-9
- Dozers: D11R, D11N, D10N, D11T, D6N, D5M, D9N, D7H, D4E, D6G2 XL, D6G, D6M, D5N, D6G2 LGP, D9L, D8N
- Wheel Loaders: 966F, 972G, 962G, 950H, 950G, 980H, 924GZ, 928G, 992D, 992C, R1700G, R1300G, R2900G, R1700 II, R3000H
- Off-Highway Trucks: 777, 773, 773D, 777D, 777E, 773E, 775G
Additional information
| Machine Model | 14M, 16H, 3126, 3126B, 320B, 330 L, 330B, 657G, 773, 773D, 773E, 775G, 777, 777D, 777E, 816F, 824C, 924GZ, 928G, 950G, 950H, 962G, 963, 966F, 972G, 980H, 992C, 992D, 994K, 995, AD30, AD45, C-9, C13, C15, C18, C27, C32, C7, C7.1, C9, D10N, D11N, D11R, D11T, D4E, D5M, D5N, D6G, D6G2 LGP, D6G2 XL, D6M, D6N, D7H, D8N, D9L, D9N, MD6310, PL61, R1300G, R1700 II, R1700G, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
