Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Bolt Overall Length – 3 | 5 in |
|---|---|
| Thread Direction | RH |

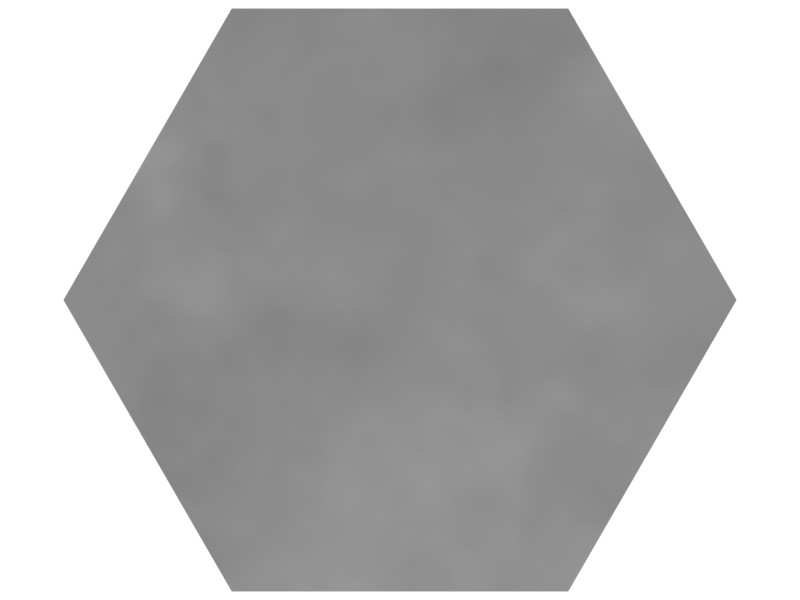

| Head Width – 5 | 0.56 in |
| Head Height – 4 | 0.29 in |
| Head Height | 7.14375 mm (0.29 in) |
| Overall Length | 127 mm |
| Thread Size | 0.375 mm (0.015 in) |
| Grade | 8 |
| Drive Chain | 14.2875 mm (9/16 in) |
| Hole Thread Pitch | 16 |
| Handle Length – 2 | 4.00 in |
| Surface Finish | Zinc Plated |
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Bolt Length | 127 mm (5 in) |

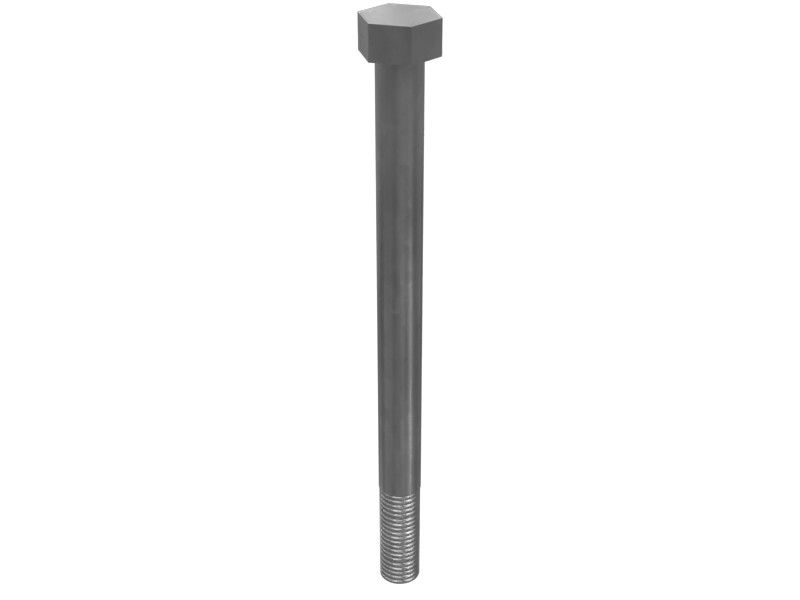

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 101.6 mm (4 in) |
| Material | Carbon Steel |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | 3/8 in |
| Material Description | SAE J429 Grade 8. Head Marking – 6 Radial Lines (150 ksi Ultimate Tensile Strength) |
Compatible Equipment
- Generator Sets: 3516C, 3406C, 3512B, 3512E
- Wheel Excavators: MD6310, MD6250
- Compactors: CS-533C
- Engines: C32, C27, C18
- Dozers: D8R, D6M, D9R, D10T, D11T, D10R, D8N, D8L, D10N
- Excavators: 3516B, 3512C, 3516E, 637G, 657G, 3508B, 637E, 621G
- Wheel Loaders: R1600H, R1300G, 836, 992C, 988F, 992D
- Off-Highway Trucks: 794 AC, 773E, 777E, 771D, 773D, 773, 777D
- Asphalt Pavers: AD45
Additional information
| Machine Model | 3406C, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 621G, 637E, 637G, 657G, 771D, 773, 773D, 773E, 777D, 777E, 794 AC, 836, 988F, 992C, 992D, AD45, C18, C27, C32, CS-533C, D10N, D10R, D10T, D11T, D6M, D8L, D8N, D8R, D9R, MD6250, MD6310, R1300G, R1600H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
