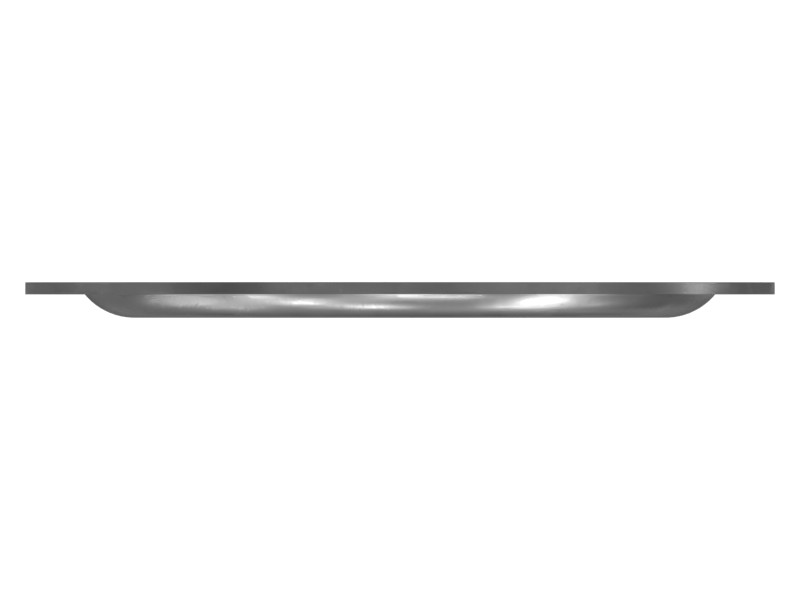

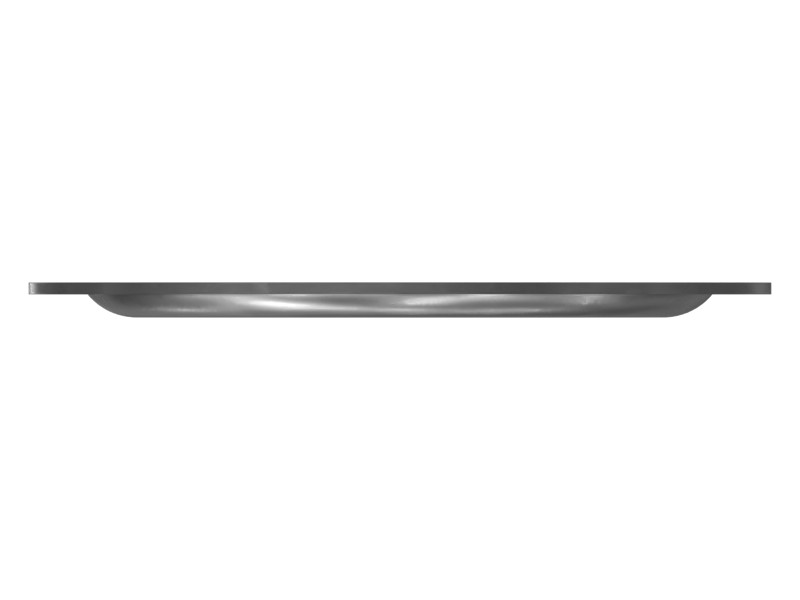

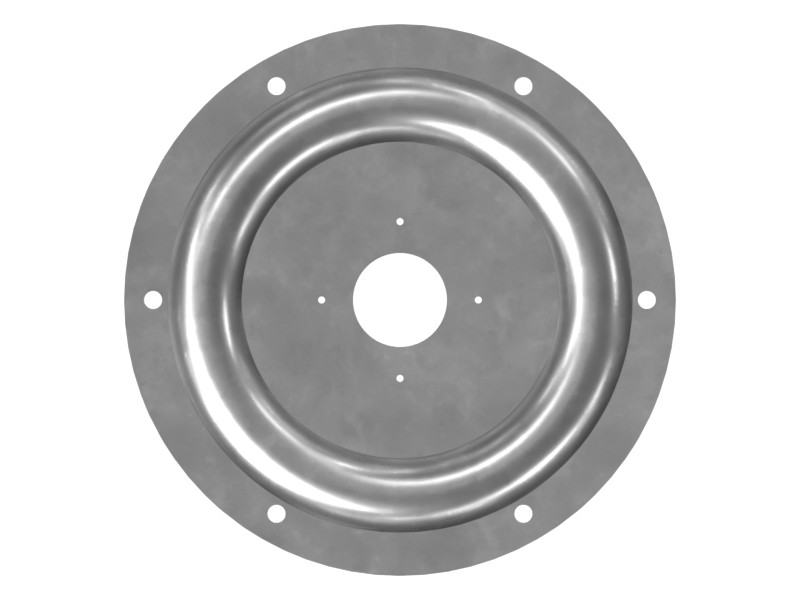

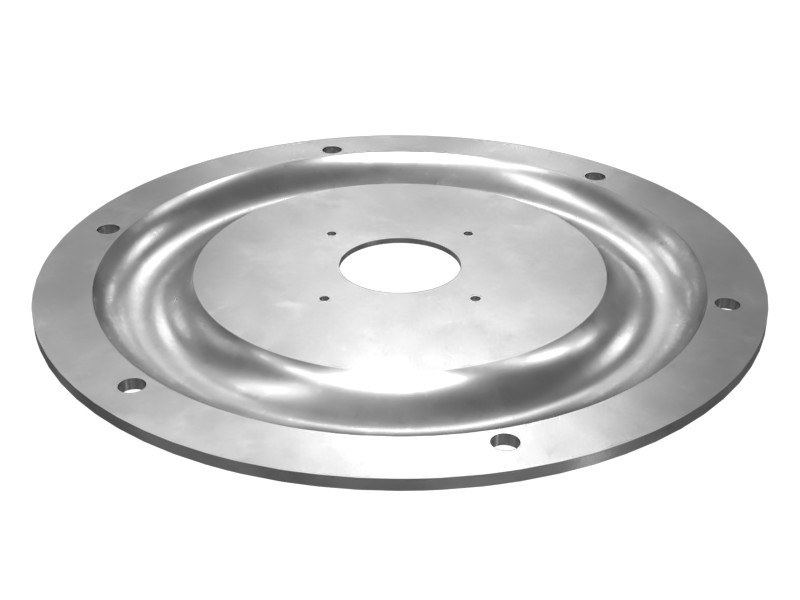

7W-4286 22 mm ID Gas Control Valve Diaphragm
Cat® 22 mm ID Gas Control Valve Diaphragm for Carburetors
Description
The gas control valve diaphragm converts the force applied by the control mechanism into mechanical motion and plays a key role in regulating gas flow. This diaphragm is usually made of flexible, durable material and is designed to be gas-tight and able to withstand the pressure of the gas being controlled. The diaphragm is installed inside the valve body and separates the gas flow path from the control mechanism.
Features
- Achieves low pressure drop, ensuring efficient gas flow and minimal energy loss.
- Wear resistant, able to withstand exposure to harsh environments.
- Manufactured to exact specifications, built for rugged durability and reliable performance.
Applications
The gas control valve diaphragm used in the carburetor is responsible for regulating fuel flow, maintaining proper air/fuel mixture in the internal combustion engine, and ensuring the integrity of the fuel supply system.
Specifications
| Inside Diameter | 22 mm (0.87 in) |
|---|---|
| Material Description | Silicone Resin |
| Outside Diameter | 130.2 mm (5.13 in) |
Compatible Equipment
- Generator Sets: G3516
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
