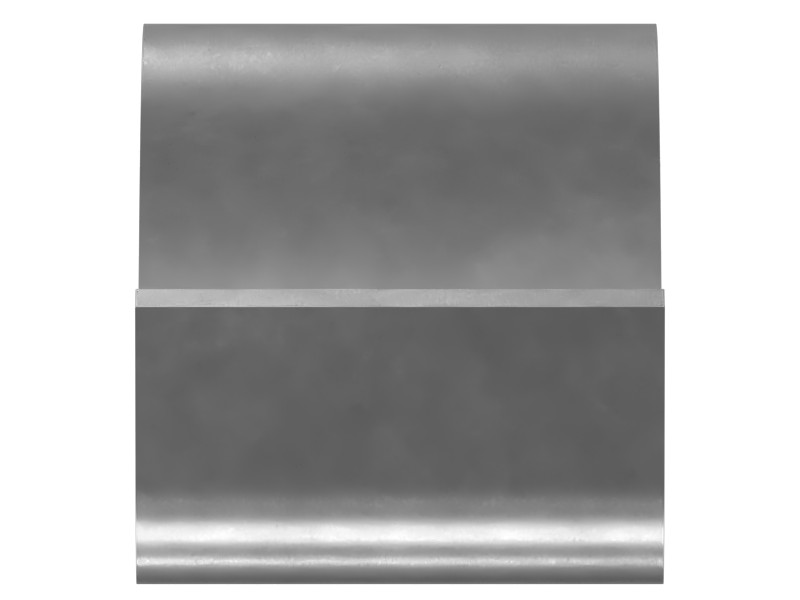

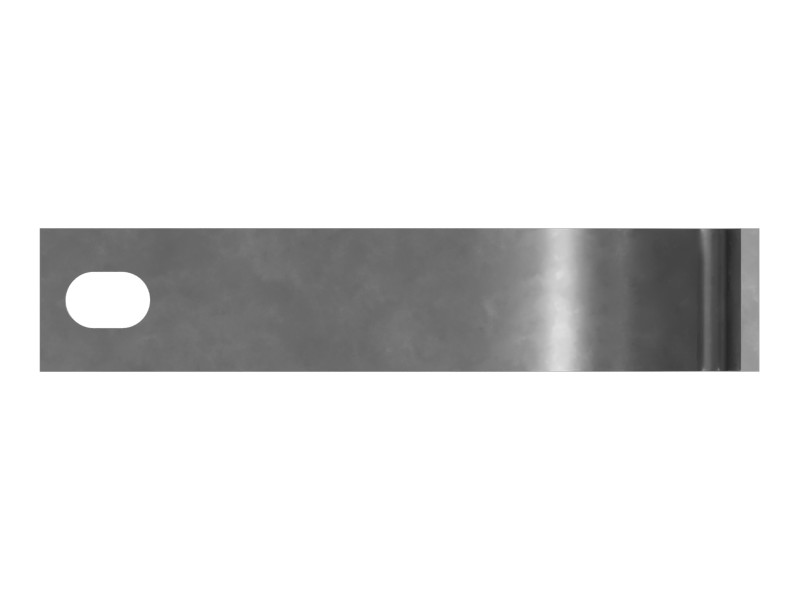

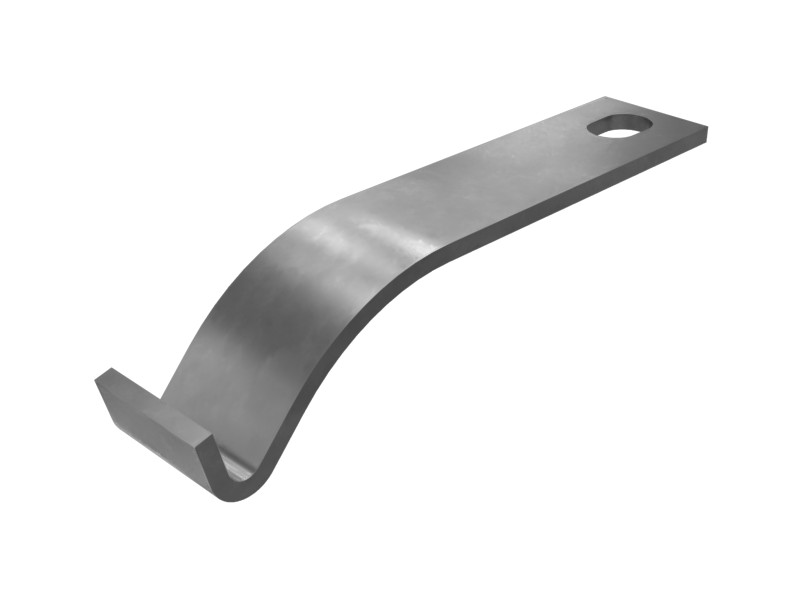

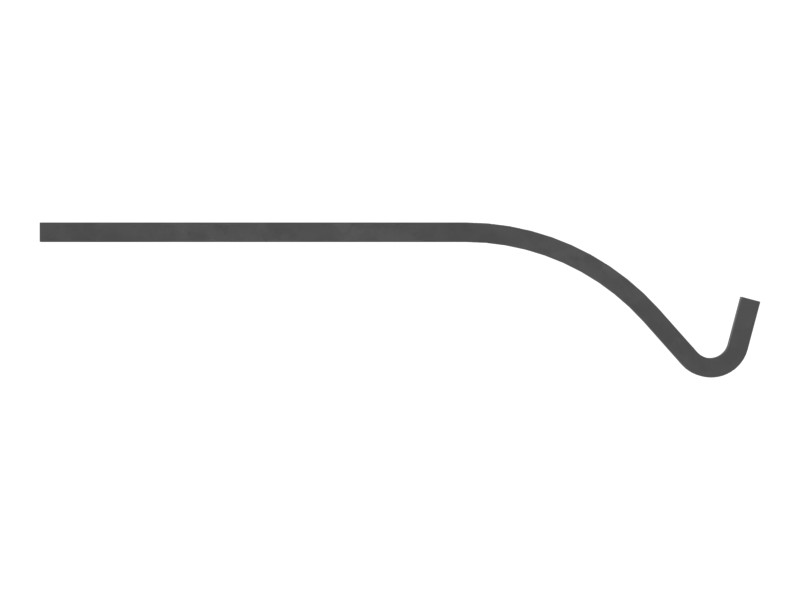

7W-2033 127.00 mm ID Two-Piece Snap Clip
Cat® Steel Two-Piece Clip with Fastener Hole Sized for M14, for 127.00 mm OD Tube
Description
Cat® clips and clamps are not ordinary off-the-shelf clips and clamps, but another excellent Cat "Built For It" product.
Features
- Clip Type: Buckle Clip
- Single-tube clamp
- Material: Steel
- For use with tubes with an outside diameter of 127 mm (5 in)
- For use with M14 or 1/2 in fasteners
- Bolt to Rigid Tube Centerline: 95 mm (3.74 in)
- Cat clips and clamps are built to exact specifications and are durable, reliable and efficient
- Strength and quality – clips and clamps meet or exceed ANSI, ASTM, and DIN requirements
- Cat clips, clamps and fasteners work together as a system to provide outstanding reliability and safety for our customers.
- This part is ideal for stocking in small service shops and/or on field service vehicles.
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Width | 38 mm (1.5 in) |
| Length | 191 mm (7.52 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C, G3516C, 3512B
- Motor Graders: 3606
- Track Loaders: 995, 992, 990K, 994K
- Cold Planers: PL87, PL83, PL72
- Wheel Excavators: MD6310, MD6250, MD6200
- Engines: C32, C27
- Dozers: D11, D7E, D10, D10R, D11T, D10T, D10N, D10T2
- Excavators: 6060, 3508B, 637K, 3516B, 6020B, 3516E, 6040
- Wheel Loaders: R1700K, RM500B, 980H, 986H, R2900 XE
- Off-Highway Trucks: 794 AC, 797F, 798 AC, 796 AC, 793D, 777, 793F, 777E, 789D, 793, 773, 725, 730, 735, 789, 770G, 725C2, 775G, 740, 773F, 777D, 740 GC, 745C, 772G, 745
Additional information
| Machine Model | 3508B, 3512B, 3516B, 3516C, 3516E, 3606, 6020B, 6040, 6060, 637K, 725, 725C2, 730, 735, 740, 740 GC, 745, 745C, 770G, 772G, 773, 773F, 775G, 777, 777D, 777E, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 980H, 986H, 990K, 992, 994K, 995, C27, C32, D10, D10N, D10R, D10T, D10T2, D11, D11T, D7E, G3516C, MD6200, MD6250, MD6310, PL72, PL83, PL87, R1700K, R2900 XE, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
