Description

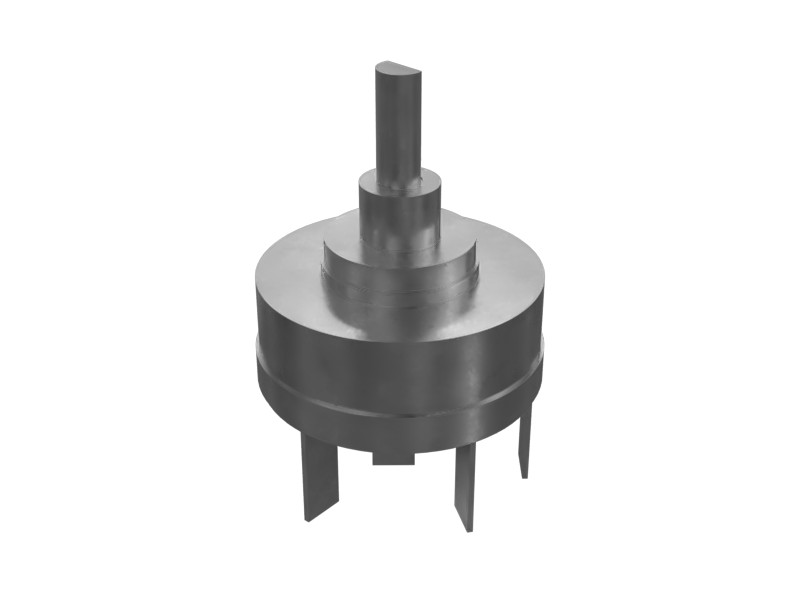

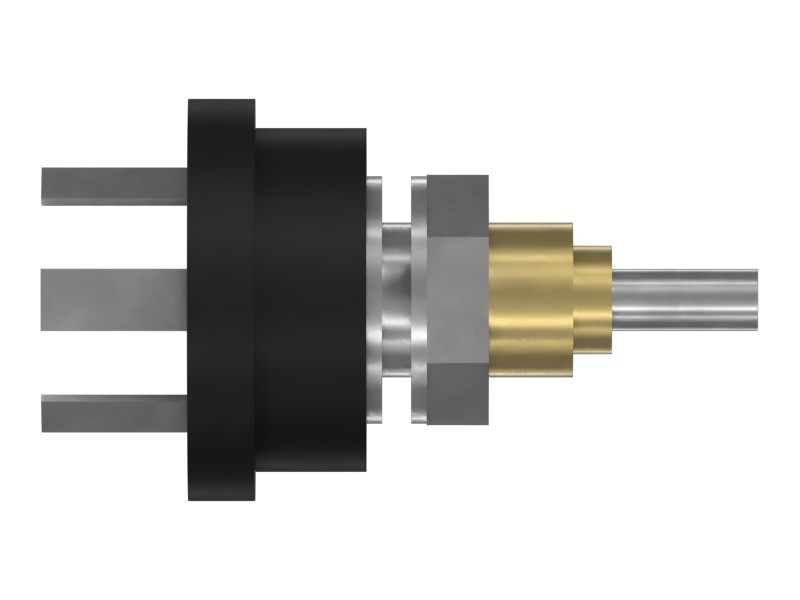

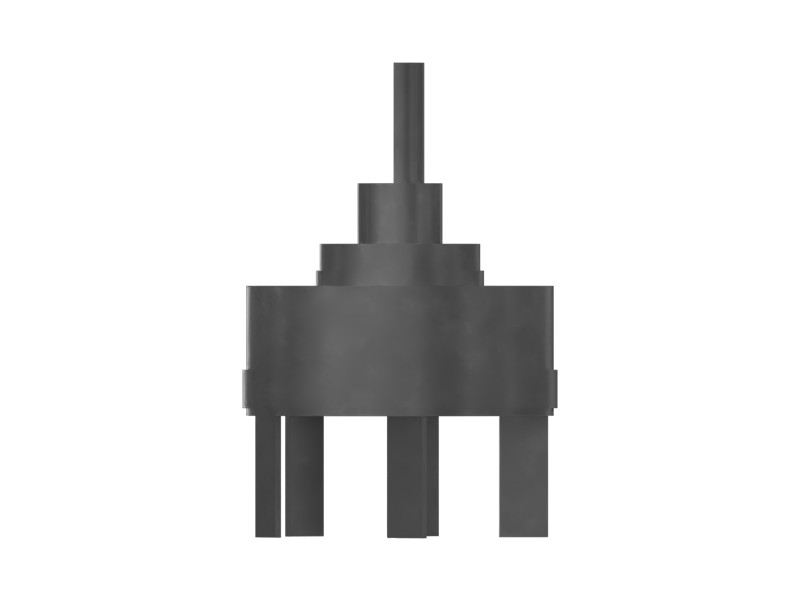

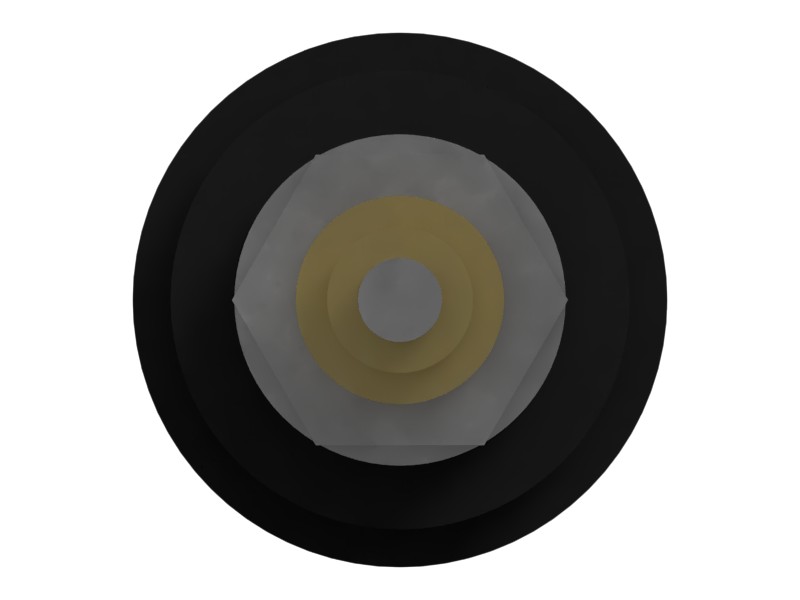

Cat parts help keep your equipment running at its best. Cat Rotary Switches include a spindle that provides various indexing angles and is rotated manually to reach different positions for all-wheel drive/variable position control.
Features
- 3-Position Rotary Switch
- Connector Type: 6 blade terminals
- Thread Size: 7/16-28
- Voltage: 12-24 VDC
- Material: Zinc
- Heavy-Duty Construction
- High precision ensures stable performance
- Rugged, durable design with long service life
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Operator console for Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts operate in heavy-duty applications with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion, and dust.
Specifications
| Diameter | 41.27 mm (1.62 in) |
|---|---|
| Material | Alloy Zinc |
| Material Description | Zinc |
| Connector Type | 6 Blade Terminals |
| Spindle Diameter | 0.25 in |
| Thread Size | 7/16-28 in |
Compatible Equipment
- Motor Graders: 140H, 120H, 12H
- Track Loaders: 826G
- Dozers: D6T LGP, D7R II, D11R, D10N, D11N, D10R, D6R II, D6R, D6T, D6R III, D9R, D7R, D8R, D8N, D6R XL
- Excavators: 330D L, 325D, 323D L, 325D L, 324D L, 336D L, 330D, 637E, 345C L, 365C, 385C L, 345C, 365C L, 330C L, 330C, 320C, 325C, 336D
- Wheel Loaders: 836, R1700G, R1700 II
- Asphalt Pavers: AD45
Additional information
| Machine Model | 120H, 12H, 140H, 320C, 323D L, 324D L, 325C, 325D, 325D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 345C, 345C L, 365C, 365C L, 385C L, 637E, 826G, 836, AD45, D10N, D10R, D11N, D11R, D6R, D6R II, D6R III, D6R XL, D6T, D6T LGP, D7R, D7R II, D8N, D8R, D9R, R1700 II, R1700G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Asphalt Pavers |
| Part Source | Genuine OEM |
