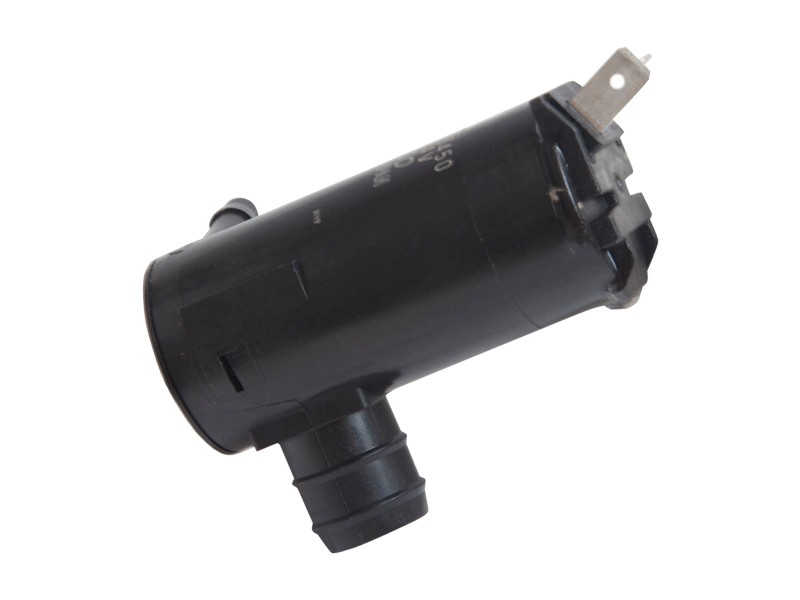

Description
Cat windshield wipers clear rain and debris so the operator can see the surroundings clearly in extreme conditions. Because the wiper is a safety device, it should be inspected regularly and replaced as needed so the equipment performs as intended.
Features
- Washer fluid pump
- Requires a primed centrifugal pump
- Male blade terminal
- 0.64 L/min minimum flow rate
Applications
Cat pumps pressurize wiper fluid and deliver it from the reservoir to the window, enhancing cleaning capability. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Height | 67.3 mm (2.6 in) |
|---|---|
| Overall Length | 48.8 mm (1.9 in) |
| Outside Diameter | 31.6 mm (1.2 in) |
| Temperature | -25 to 80 (Range) °C (-13 to 176 (Range) °F) |
| Connector Type | Blade Terminal |
| Operating Pressure | 167 (Min) kPa (24.2 (Min) psi) |
| Material | Polyamide Plastic |
Compatible Equipment
- Generator Sets: 3512B, C7.1
- Track Loaders: 816F, 824G, 826G, 963D, 824C, 826H, 953D, 990K, 994K
- Cold Planers: PL61
- Compactors: CS-54, CS-563E, CS-583D, CS-56, CS-533E
- Excavators: 336D2, 320D, 320D2, 336D, 329D, 326D2, 326D2 L, 329D2, 390F L, 349D, 329D2 L, 374F, 390D L, 349D2 L, 349D2, 374D L, 330D L, 349F L, 345D L, 336D2 L, 320C, 312F, 324D L, 330D2, 320D2 L, 320D FM, 325D, 330C, 312D, 325C, 323D L, 336E LN, 325D L, 330D, 329D L, 320D L, 314D LCR, 318D2 L, 336D L, 314D CR, 325C L, 312D2, 336E LH, 330D2 L, M325D L MH, 336F L XE, 336E L, 323D2 L, 312D2 L, 325B L, 320B, 326D L, 336F, 313D, 315D L, 323D, 336D2 GC, 313D2, 320E, 336E, 329E, 311D LRR, 315C, 318D2, 330B, 313D2-GC, 311B, 330 L, 320D GC, 320D RR, 320D2 GC, 336F L, 349E L, 340D L, 345C, 6015B, 345C L, 385C L, 385C, 374F L, 349E, 365B L, 312D L, 329E L, 325B, 312E, 320D3, 312C L, 336D2 XE, 330C L, 390F, 365B, 349D L, 621G, 365C, 340D2 L, 390D, 345B, 352F, 313F L, 336E H, 324D, 336F LN, 328D LCR, 350 L, 385B, 345D, 349E L VG, 313D2 GC, 312C, 312E L, 312D2 GC, 323D2, 320C L, 318D L, 637G, 365C L, 320D3 GC, 6015
- Asphalt Pavers: AD30, AD45
- Skid Steer Loaders: 313D2 LGP
- Motor Graders: 16M, 14M
- Wheel Excavators: IT14G, M320, M315
- Dozers: D5M, D5H, D6G2 XL, D6G2 LGP, D6K2, D5N, D6N, D6M, D10R, D4
- Wheel Loaders: 950G, 962G, 924HZ, 972G, 928G, R2900G, R1700G, 924GZ, 928HZ, 966F, 980H, R3000H, R1300G, 980G, 990H, R1600H, R2900 XE, 986H, 988G, 988H
- Off-Highway Trucks: 797F, 794 AC, 793F, 773F, 796 AC, 798 AC
