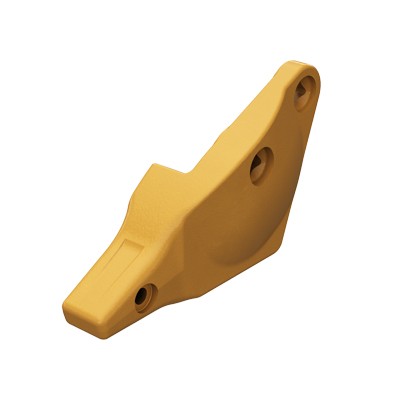

7T-8456 J Series (Side Pin) Adapter
J460 Flush Mount Left Side Pin Adapter
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Description: J460 Flush Mount Left Hand Adapter for 50 mm cutting edge with 22.5-degree bevel angle Features: Larger adapter and optional cover provide greater durability and more wear protection than traditional two-strap systems Recommended applications: Wheel loader buckets. The Cat flush mount adapter system is suited for high-impact, high-wear applications
Specifications
| Wear Material | Standard Optional |
|---|---|
| Attachments | Weld-On |
| Machine Model | Loader |
| Adapter Size | J450 |
| Series | J Series |
| Type | Flushmount |
| Size | J450 |
| Wear or Durability | Standard |
| Attachment Method | Weld-On |
| Bevel Angle | 22.5 |
| Number of Holes | 0 |
| Width | 100 mm (3.937 in) |
| Hole Spacing | 0 mm |
| Corner Stop Angle | 0 |
| Overall Length | 481 mm (18.937 in) |
| Bottom Bar Length | 0 mm (0 in) |
Additional information
| Part Source | Genuine OEM |
|---|
