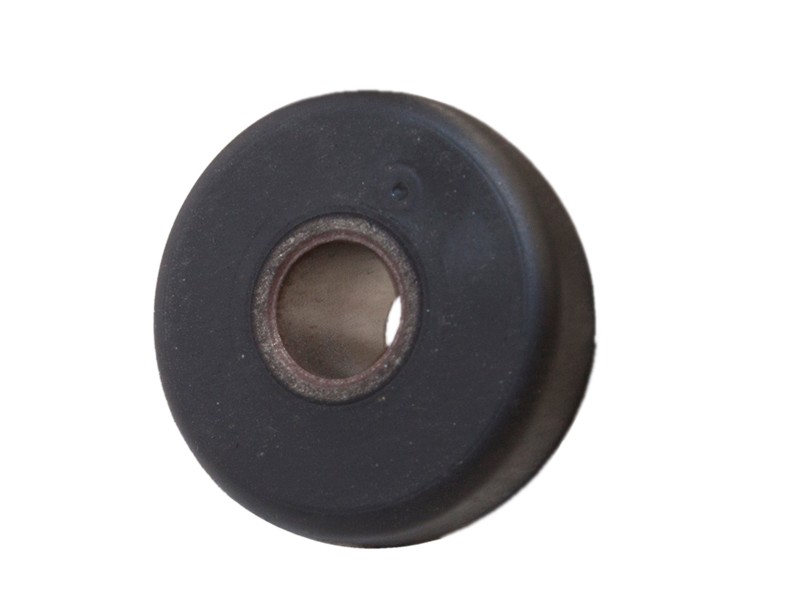

7T-8332 44.5 mm OD Radiator Mushroom Isolation Mount Base
Cat® radiator isolation mount base minimizes vibration and isolates the radiator from the chassis, ensuring efficient cooling and reducing wear
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
The mushroom mount uses a rubber plate that, once installed in the support plate, flares out or spreads like a "mushroom" to form its own rebound pad.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
The mushroom mount has a simple one-piece design. Follow the correct procedure during installation to ensure the mount is fully seated and the mushroom end spreads out correctly.
Applications
Mushroom mounts are used in a variety of Cat system installations, especially light- to medium-load applications such as hydraulic lines, fuel tanks, fans, and cooler assemblies.
Specifications
| Material | Sealants / Adhesives Adhesive |
|---|---|
| Mounting Type | Mushroom Mount |
| Pilot OD | 31.5 mm (1.24 in) |
| Standard Bolt Size | M12 mm |
| Overall Length | 31.8 mm |
| Bolt Type | M12 |
| Head Outside Diameter | 44.4 mm (0.069 in) |
| Sleeve Length | 25.4 mm (1 in) |
| Material Description | Rubber |
| Inside Diameter | 13.1 mm (0.51 in) |
Compatible Equipment
- Generator Sets: 3406B, 3516C
- Compactors: C9.3B, C13B, C-15, C-9
- Engines: C13, C11, C15, C27, C32, C18
- Dozers: D7H, D6R, D7R, D8R, D6R II, D9R, D8T, D7R II, D8N, D11R, D11N, D8, D10T, D10R
- Wheel Loaders: 928HZ, 938M, 924K, 924GZ, 938K, 928G, 926M, 924HZ, 910
- Off-Highway Trucks: 773F, 775G, 773, 777
- Excavators: 3456
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 3126B, 3406B, 3456, 3516C, 773, 773F, 775G, 777, 910, 924GZ, 924HZ, 924K, 926M, 928G, 928HZ, 938K, 938M, C-15, C-9, C11, C13, C13B, C15, C18, C27, C32, C9.3B, D10R, D10T, D11N, D11R, D6R, D6R II, D7H, D7R, D7R II, D8, D8N, D8R, D8T, D9R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
