Description

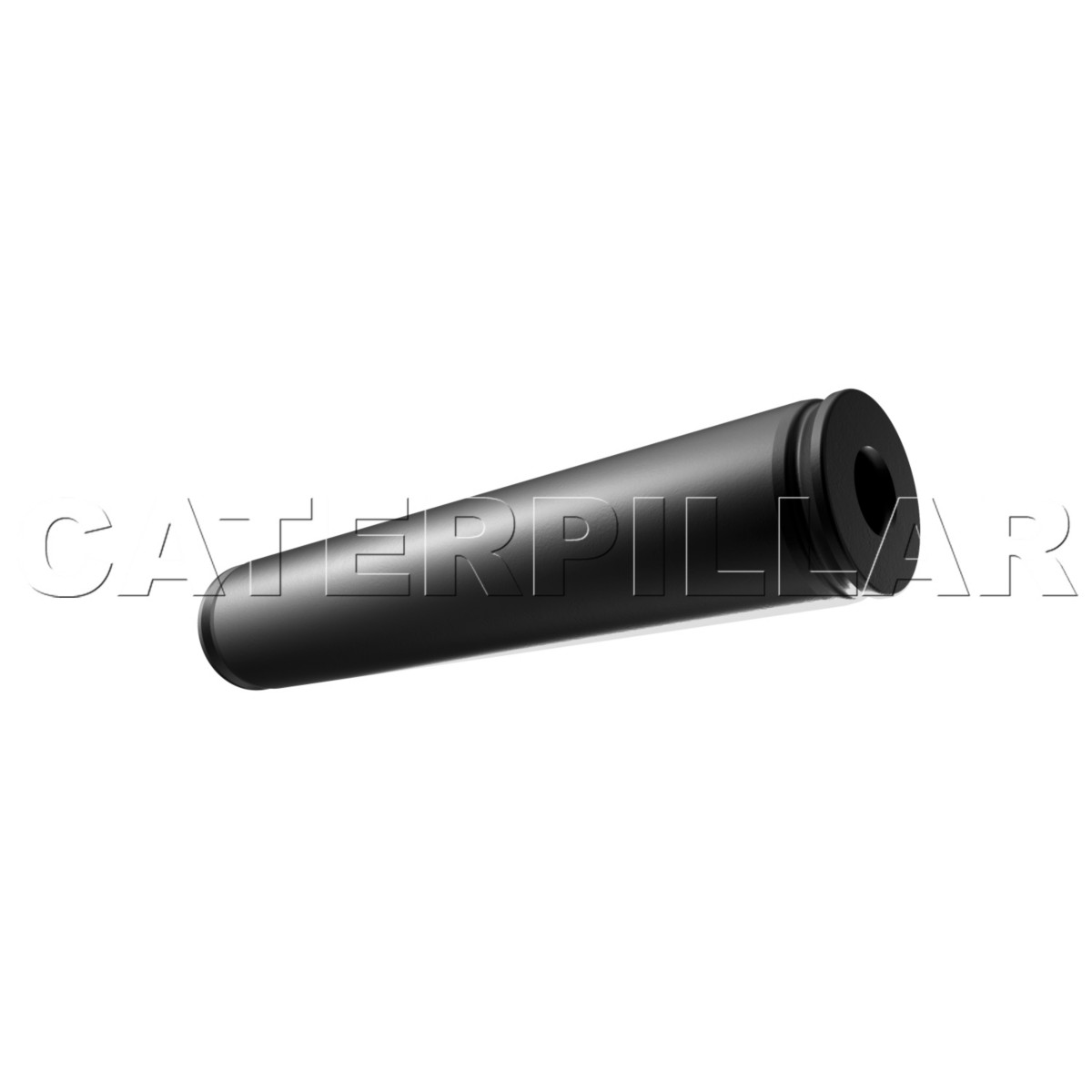

Track pins work together with bushings to hold the individual track links together. The track pin acts as a hinge between adjacent bushings.
Features
Cat® Sealed and Lubricated Track (SALT) seals lubricant inside the undercarriage system and keeps abrasives out. It eliminates internal pin and bushing wear, reducing maintenance costs and downtime while increasing service life and serviceability. Combined with a track design matched to your machine and work environment, SALT provides a versatile undercarriage configuration for a wide range of ground conditions.
Specifications
| Overall Length | 245.18 mm (9.653 in) |
|---|---|
| Hole Depth | 217 mm (8.543 in) |
| Pin Outside Diameter | 47.73 mm (1.879 in) |
| Pin Inside Diameter | 17.7 mm (0.697 in) |
| Retention Option | Press Fit |
| Head Option | No |
| Core Pin Hole Option | Blind |
| Main Option | No |
Compatible Equipment
- Dozers: D8T, D8R
