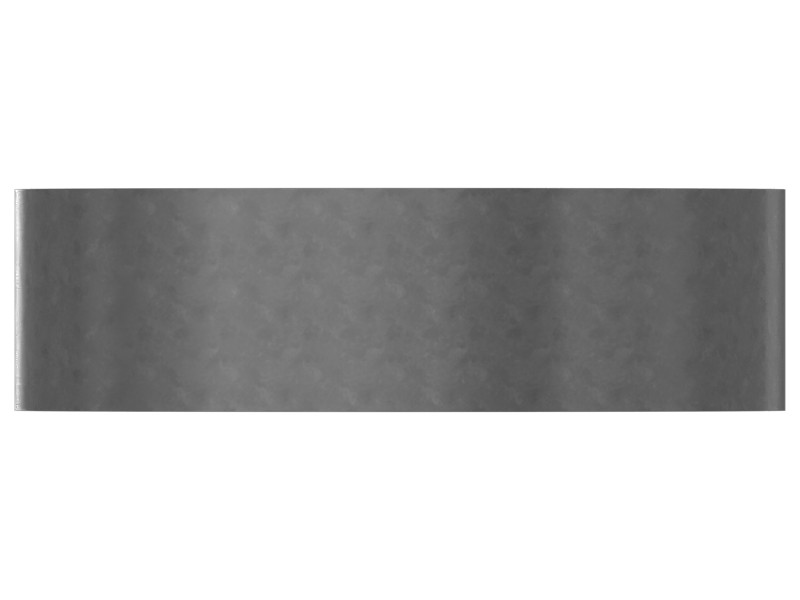

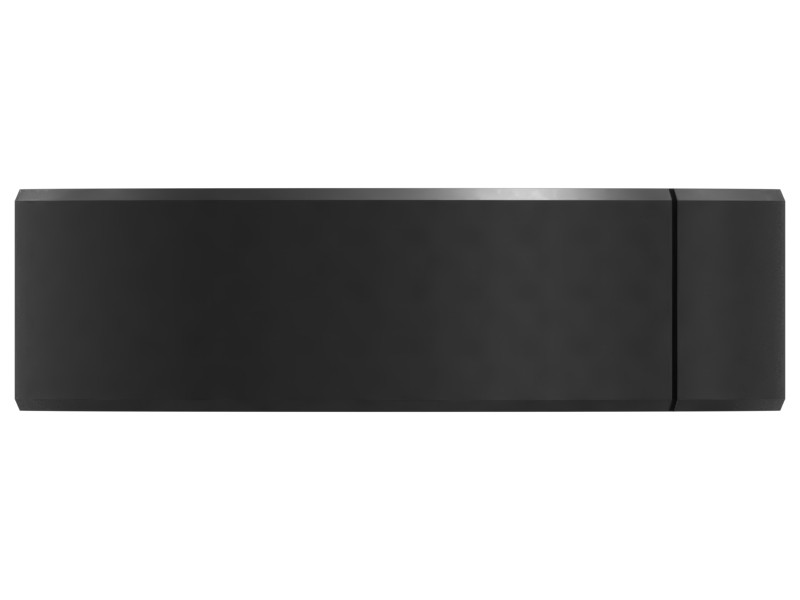

7T-4155 93.79 mm OD Sleeve Bearing
Cat® 93.79 mm OD 26.92 mm long sleeve bearing, for planetary transmissions.
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Unique Features | No |
|---|---|
| Ferrule Inside Diameter | 89.152 mm (3.51 in) |
| Ferrule Outside Diameter | 93.79 mm (3.693 in) |
| Type | Straight Sleeve |
| Material | Steel-backed Bronze |
| Inside Diameter | 89 mm (3.51 in) |
| Outside Diameter | 94 mm (3.69 in) |
| Overall Length | 27 mm (1.06 in) |
| Internal Groove | Yes |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Dozers: D10N, D9R, D8L, D9T, D9N, D9L, D9
