Description

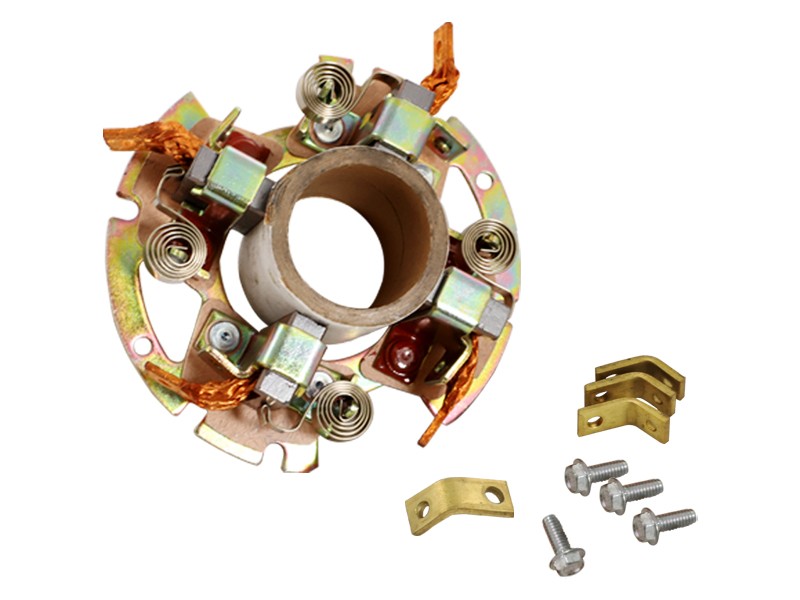

The 24 volt brush holder is used in electric starting motors to hold the carbon brushes that contact the commutator. The commutator is the rotating part of the motor. It is designed for use with motors that run on a 24 volt DC power supply. The brush holder is usually mounted on the motor housing and connected to the power supply by a set of wires.
Features
- Ensures proper contact between the brushes and the commutator, thereby improving motor performance
- Excellent corrosion resistance
Applications
The 24 volt brush holder is an important component that holds the carbon brushes in place and allows them to maintain stable contact with the commutator.
Specifications
| Overall Height | 48.3 mm (1.9 in) |
|---|---|
| Overall Width | 129.5 mm (5.1 in) |
| Overall Length | 129.5 mm (5.1 in) |
| Voltage | 24 Volts |
| Weight | 0.54 kg (1.19 lb) |
Compatible Equipment
- Generator Sets: 3516C, 3406B, 3406C, C9, G3516, 3512B, C7.1
- Track Loaders: 953, 963, 816F, 826G, 824G, 824C
- Compactors: C13B, C-9, C-15
- Engines: C15, C13, C11, C7, C32, C27, C12, C18
- Excavators: 329D, 3456, 3126, 336D, 330D L, 324D L, 324D, 325D, 336D L, 325D L, 330C L, 330C, 325C, 329D L, 328D LCR, 325C L, 330 L, 325B L, 320B, 330D, 3512C, 657G, 637E, M325D L MH, 637G, 3516B, 3508B, 621G, 345B, 350 L, 6040, 325B, 330B, 326D L
- Asphalt Pavers: AD30
- Skid Steer Loaders: 3126B
- Motor Graders: 16M, 12H, 14M, 140G, 140H, 16H
- Dozers: D6T, D6R II, D6R III, D6R, D5H, D7H, D4E, D6G, D6R XL, D7G2, D7R, D6G2 XL, D8N, D7E, D7G, D6G2 LGP
- Wheel Loaders: R1700G, R1300G, 980G, 966H, 950H, 972G, 972H, 966F, R1700 II, R2900G
- Off-Highway Trucks: 740, 730, 735, 725
Additional information
| Machine Model | 12H, 140G, 140H, 14M, 16H, 16M, 3126, 3126B, 320B, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 330 L, 330B, 330C, 330C L, 330D, 330D L, 336D, 336D L, 3406B, 3406C, 3456, 345B, 350 L, 3508B, 3512B, 3512C, 3516B, 3516C, 6040, 621G, 637E, 637G, 657G, 725, 730, 735, 740, 816F, 824C, 824G, 826G, 950H, 953, 963, 966F, 966H, 972G, 972H, 980G, AD30, C-15, C-9, C11, C12, C13, C13B, C15, C18, C27, C32, C7, C7.1, C9, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D6R II, D6R III, D6R XL, D6T, D7E, D7G, D7G2, D7H, D7R, D8N, G3516, M325D L MH, R1300G, R1700 II, R1700G, R2900G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
