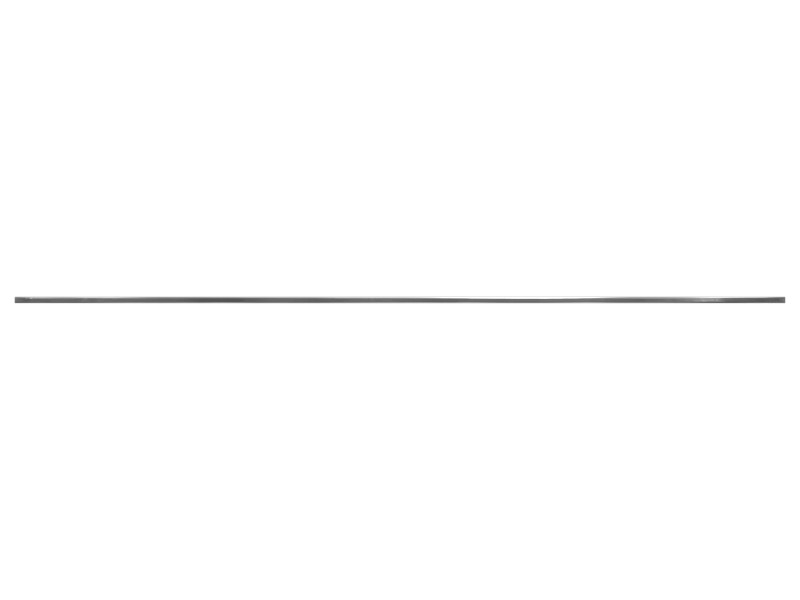

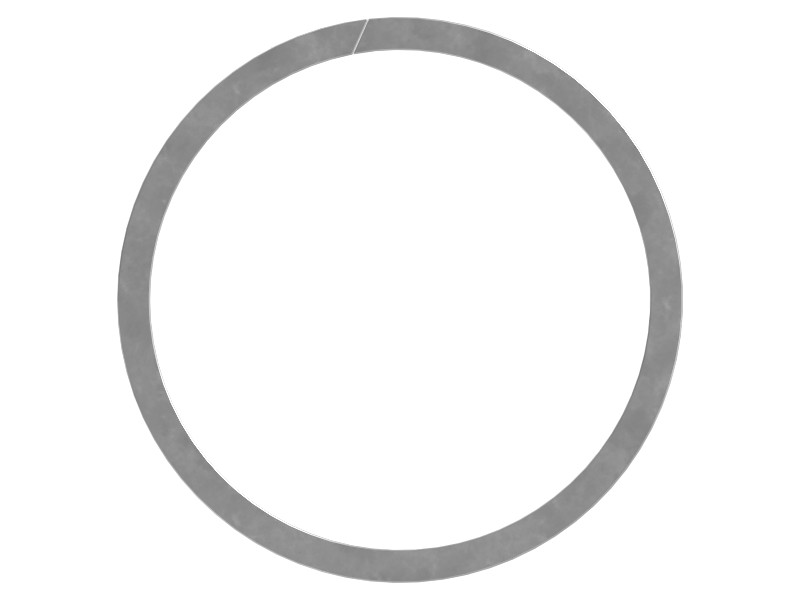

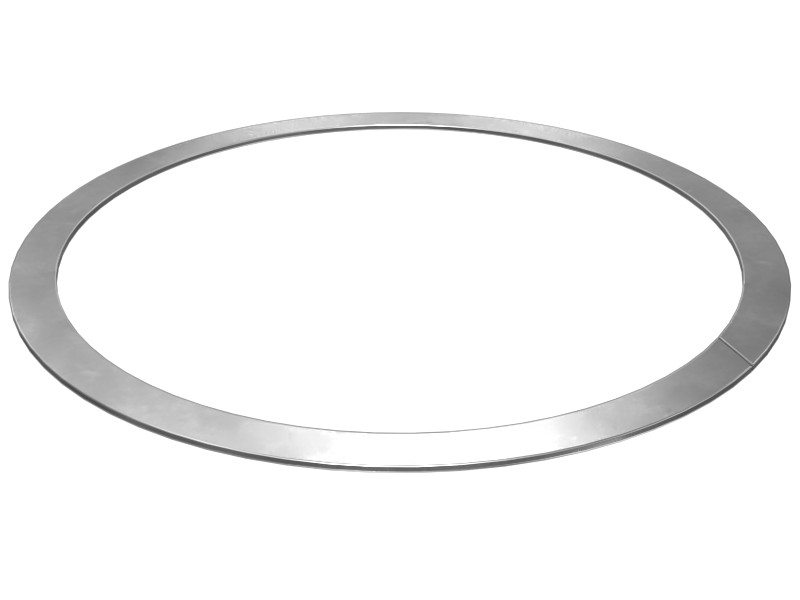

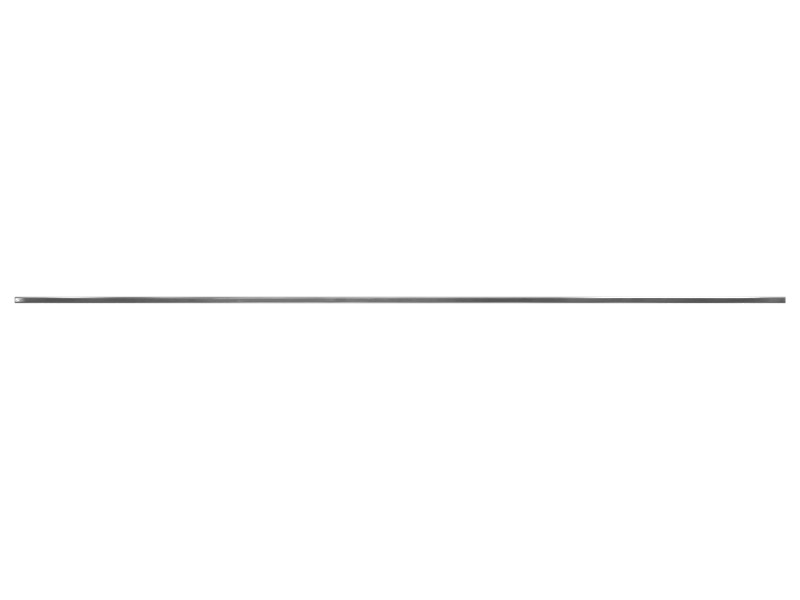

7T-1885 262.50 mm Free Diameter Steel Ring
Cat® 262.50 mm ID Steel Ring for Steering and Powertrain Systems
Description
Service part for brake assemblies.
Features
- Material: Steel
- Free Diameter: 262.5 mm (10.33 in)
- Inside Diameter: 232.5 mm (9.15 in)
- Thickness: 2.03 mm (0.08 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Type | Shaft |
| Material Description | Steel |
| Outside Diameter | 262.5 (Usable) mm (10.33 (Usable) in) |
| Thickness | 2.032 mm (0.08 in) |
| Cross-Section Width | 15 mm (0.59 in) |
Compatible Equipment
- Cold Planers: PL83, PL87, PL72
- Dozers: D10R, D10T2, D10N, D8R, D7R, D7H, D9T, D6R III, D8N, D6R II, D6R LGP, D8T, D9R, D6N, D6T, D7R II, D9N, D6R XL, D6R, D8, D8L, D6T LGP, D9L, D10T, D7, D9, D10
- Excavators: 3508B
