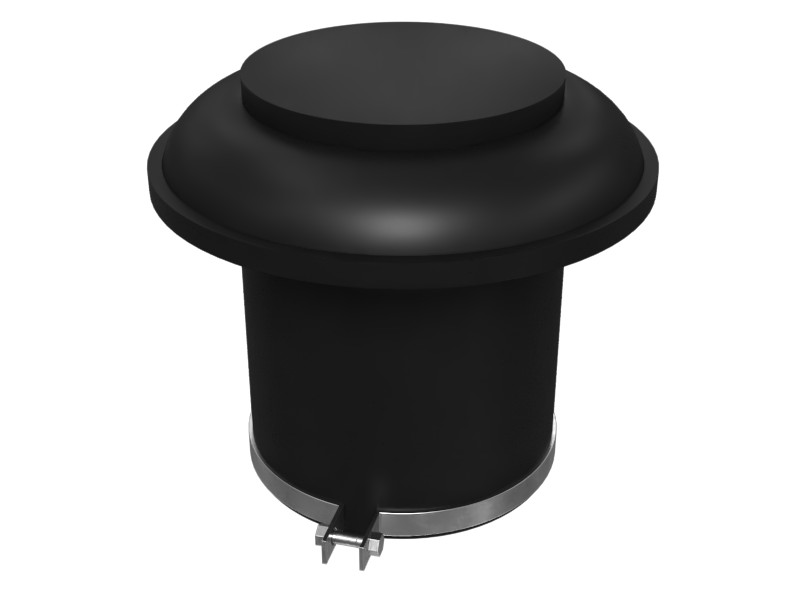

Description
Choosing Genuine Cat filters, cleaners and precleaners to protect your revenue-generating equipment is always worth it.
Contamination is the number one enemy of engines, so it is critical to protect Cat equipment with Genuine Cat filter elements. Cat Precleaner Groups are ideal for normal-duty applications, providing better engine protection and helping avoid equipment downtime.
Cat air filters offer long service life, superior filtration performance, and are environmentally friendly and cost-effective. Genuine Cat filters are designed entirely to Cat equipment specifications and are a key factor in how efficiently your machine uses air. A clean filter element protects internal mechanisms from dust damage.
Sticking with Cat air filters ensures long life and optimal performance for your Cat machines.
Features
- Air filter includes primary and secondary elements
- Connecting clamp
- Quick service
- Mounting diameter: 230 mm (9.10 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Scavenge Required | No |
|---|---|
| Outlet Size | 230.1 mm (9.059 in) |
| Overall Diameter | 356 mm (14.02 in) |
| Length | 355.6 mm (14 in) |
| Height | 320.5 mm (12.618 in) |
| Width | 355.6 mm (14 in) |
| Overall Width | 355.6 mm (14 in) |
| Overall Height | 320.5 mm (12.618 in) |
| Overall Length | 21 mm (12.64 in) |
Compatible Equipment
- Motor Graders: 140H, 12H, 140G, 120H, 16H
- Track Loaders: 824C
- Dozers: D7R II, D8N, D7H, D7R, D6T, D6R XL, D6R, D6R III, D6R II, D7G
