Description

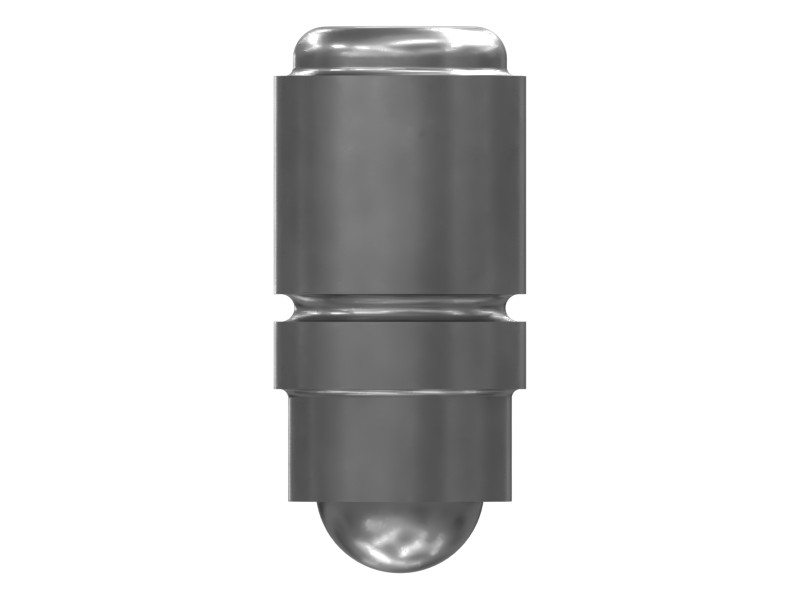

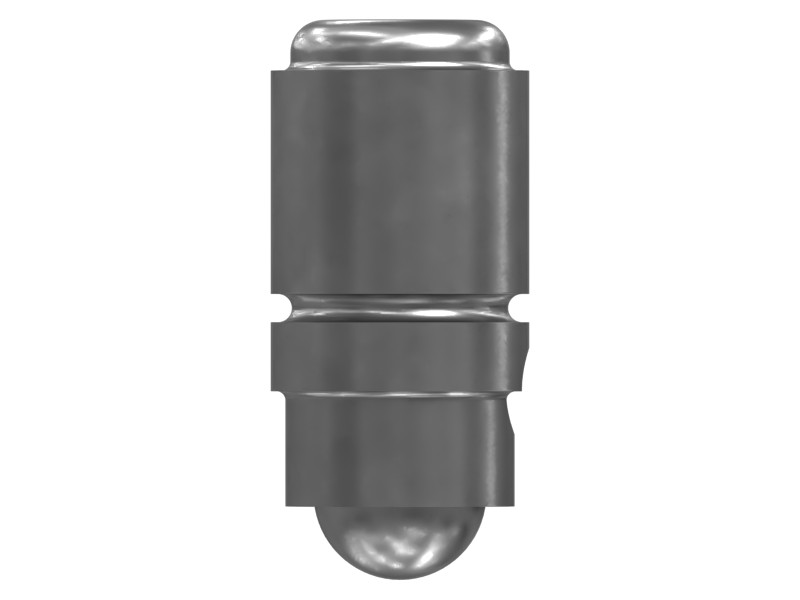

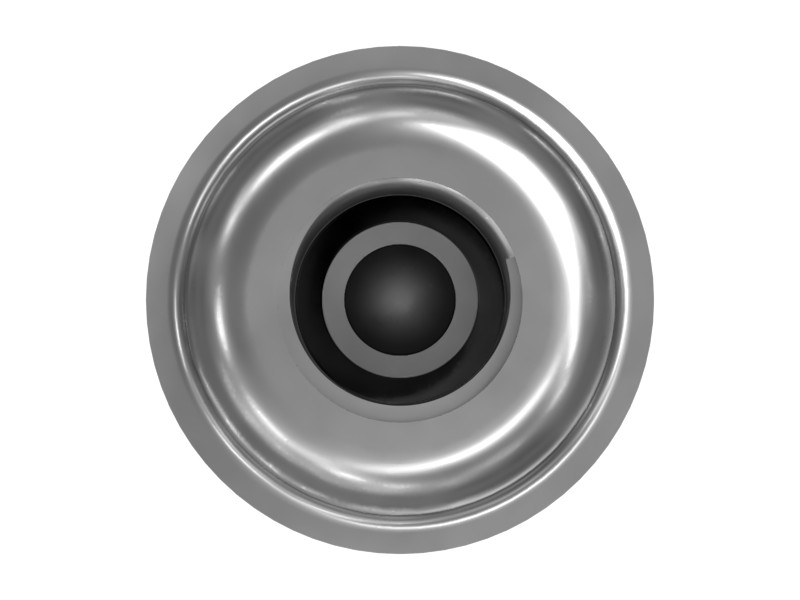

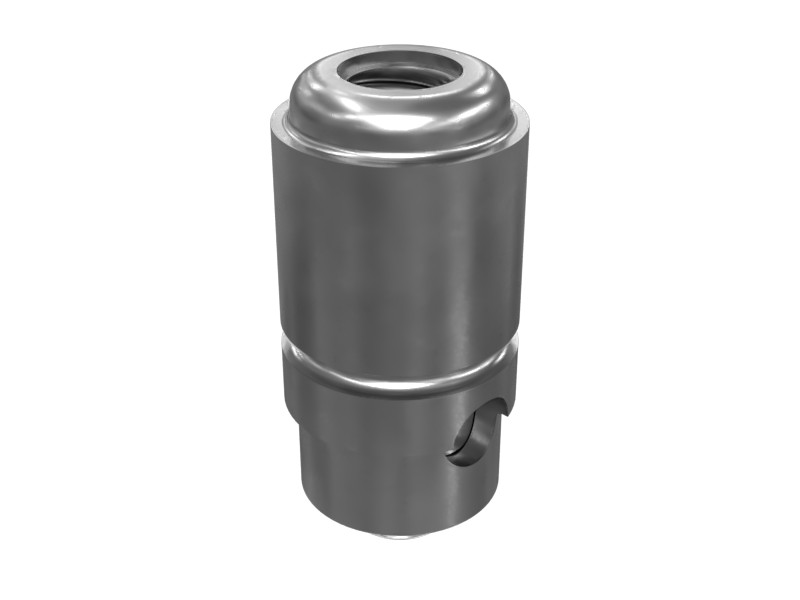

The detent mechanism is a set of parts, including a housing, spring, roller, and follower, assembled to move back and forth into and out of the housing. The spring rate of the spring is precisely controlled during production to achieve the desired detent holding force. The roller (a ball in this case) typically has a very low coefficient of friction and very high mechanical hardness, allowing smooth operation while ensuring a long service life.
Features
- Designed for specific applications
- High mechanical hardness and low surface friction coefficient
- Manufactured to very tight tolerances
Applications
This detent mechanism is used in various systems on the machine, including hydraulic systems, implements, operator station, power train systems, and work tools.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 26.797 mm (1.055 in) |
| Outside Diameter | 14.244 mm (0.5608 in) |
| Overall Diameter | 14.22 mm (0.56 in) |
| Overall Length | 30.86 mm (1.22 in) |
Compatible Equipment
- Motor Graders: 16H, 140G, 16
- Track Loaders: 824C
- Dozers: D10, D11N, D10N, D8N, D8L, D4E, D7H, D6M, D5H, D9N, D5M, D9R, D9L
- Wheel Loaders: 910, 992C, R1700 II, 836, 966F
