Description
Cat spring parts come in a variety of strengths and sizes to suit specific applications. Our springs are specifically designed to deliver outstanding performance across many applications, achieving excellent spring rates and assembled loads. Cat springs are internally tested under specific application conditions and have a documented performance history, ensuring consistent assembled loads and excellent machine reliability and proper operation for your peace of mind. Cat springs are manufactured to precise specifications for durability, reliability and high productivity over the life of the machine. You can trust Cat springs to help you build, maintain or rebuild. No one knows your equipment like we do; Cat is worth your trust.
Features

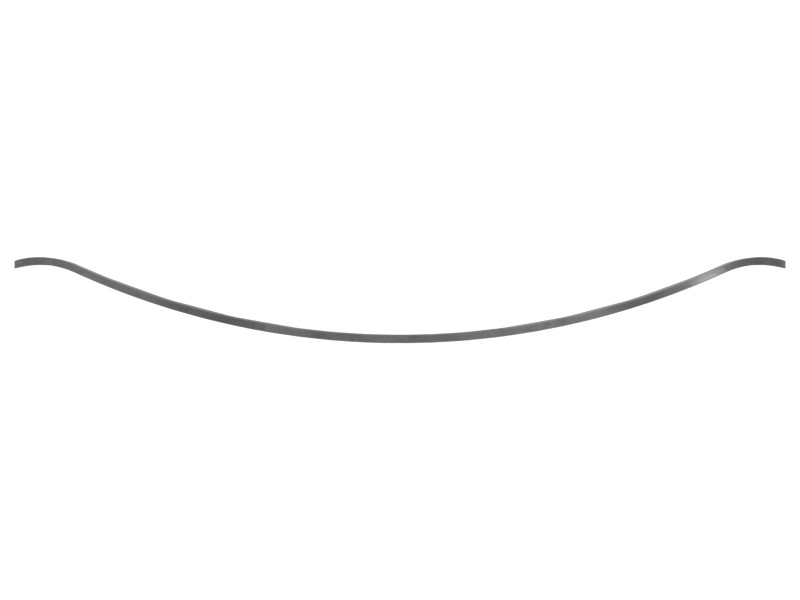

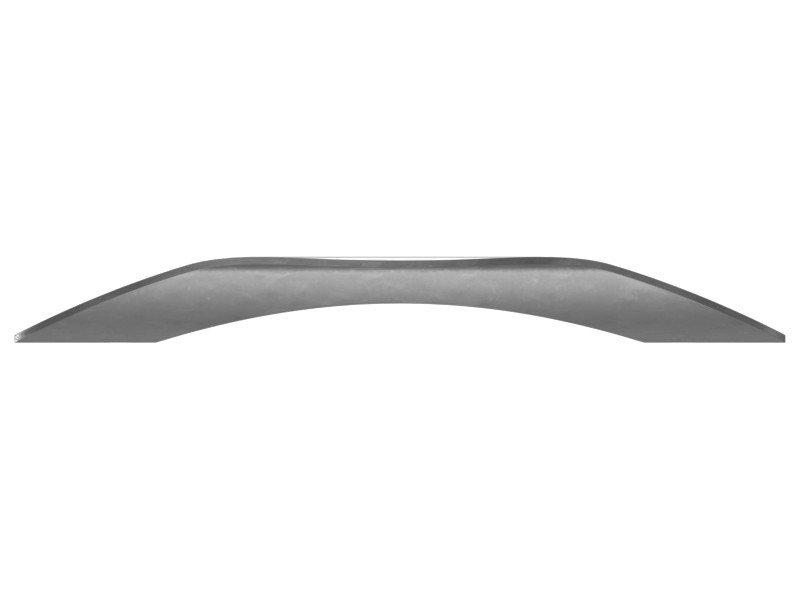

- Spring washer
- Material: Steel
- Free Width: 9.1 mm (0.34 in)
- Free Length: 71 mm (2.8 in)
- Outside Diameter: 82.5 mm (3.25 in)
- Inside Diameter: 52.3 mm (2.06 in)
- Thickness: 0.76 mm (0.03 in)
- Springs meet or exceed current standards and material grades
Applications
Transmission magnetic suction filter plate and cover group. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Gasket Type | Spring-Conical |
| Inside Diameter | 52.3 mm (2.059 in) |
| Thickness | 0.76 mm (0.03 in) |
| Outside Diameter | 82.5 mm (3.248 in) |
Compatible Equipment
- Motor Graders: 16H
- Generator Sets: C7.1
- Track Loaders: 993, 816F, 995, 982, 972, 992, 994K, 990K, 826H, 826K, 824C, 834H, 824G, 826G
- Compactors: 825K, 824K, 816, 815, 814, C9.3B, 834K
- Dozers: D10R, D4E
- Excavators: 637E, 621H, 621G, 621K, 637K, 3508B, 3516B, 3516E, 657G, 637G
- Wheel Loaders: 966 GC, 992K, 972M, 980M, 966M, 986K, 982M
- Off-Highway Trucks: 771D, 773D, 740B, 740, 772G, 773E, 773F, 773, 770G, 775G, 793, 735, 793F
- Asphalt Pavers: AD63, AD30, AD45
- Skid Steer Loaders: 24
Additional information
| Machine Model | 16H, 24, 3508B, 3516B, 3516E, 621G, 621H, 621K, 637E, 637G, 637K, 657G, 735, 740, 740B, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 793, 793F, 814, 815, 816, 816F, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 834K, 966 GC, 966M, 972, 972M, 980M, 982, 982M, 986K, 990K, 992, 992K, 993, 994K, 995, AD30, AD45, AD63, C7.1, C9.3B, D10R, D4E |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Generator Sets |
| Part Source | Genuine OEM |
