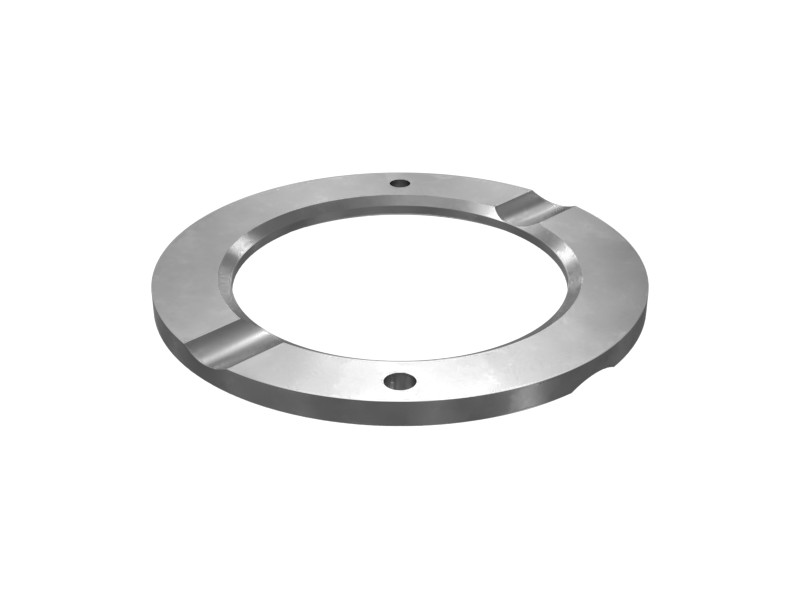

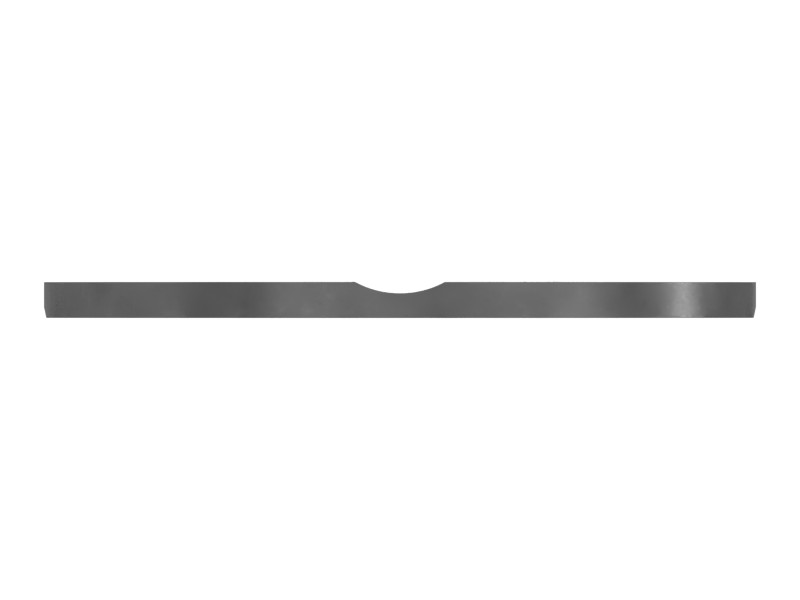

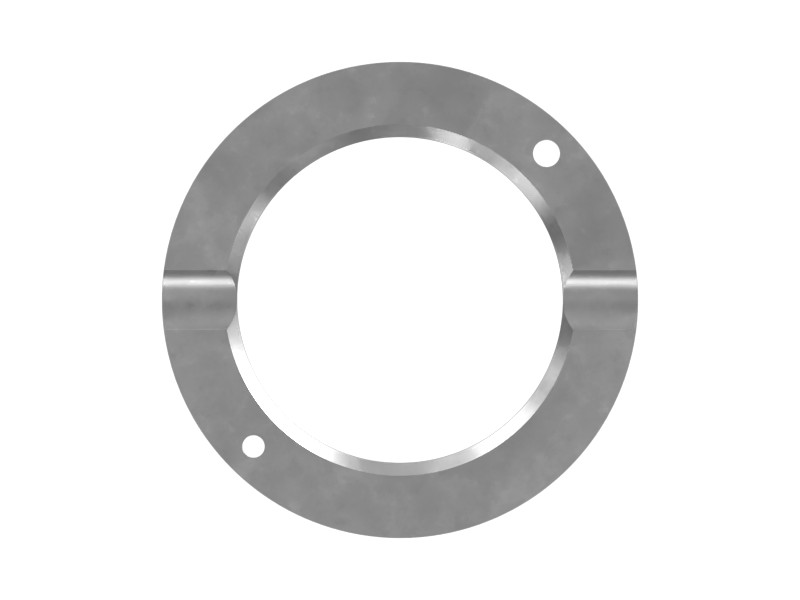

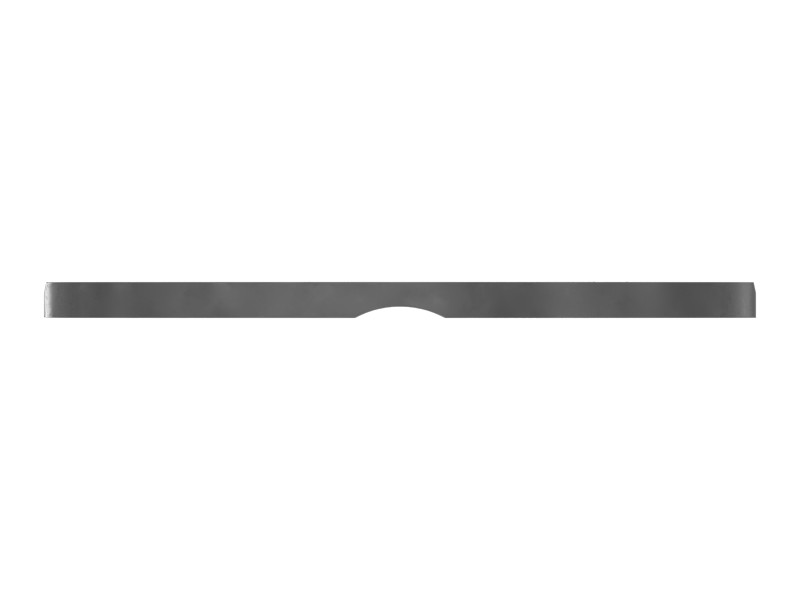

7N-8525 65 mm ID Thrust Washer
Cat® 94.75 mm OD bronze thrust washer for high axial loads and high speeds
Description
Thrust washers are designed to provide axial positioning for gears, bearings, and other components that rotate around a shaft. These components may have features that facilitate lubrication and cooling to support substantial axial loads and high rotational speeds.
Specifications
| Gasket Type | Thrust |
|---|---|
| Inside Diameter | 65 mm (2.56 in) |
| Outside Diameter | 95 mm (3.73 in) |
| Thickness | 5 mm (0.19 in) |
Compatible Equipment
- Dozers: D11R, D11T, D11N
- Excavators: 374F L, 385C, 385C L, 390F, 3516B, 390D, 385C FS, 3516E, 390F L, 390D L, 374F
- Off-Highway Trucks: 777E, 785, 777D, 785D, 789, 793F, 777, 793D, 793, 789D
