Description

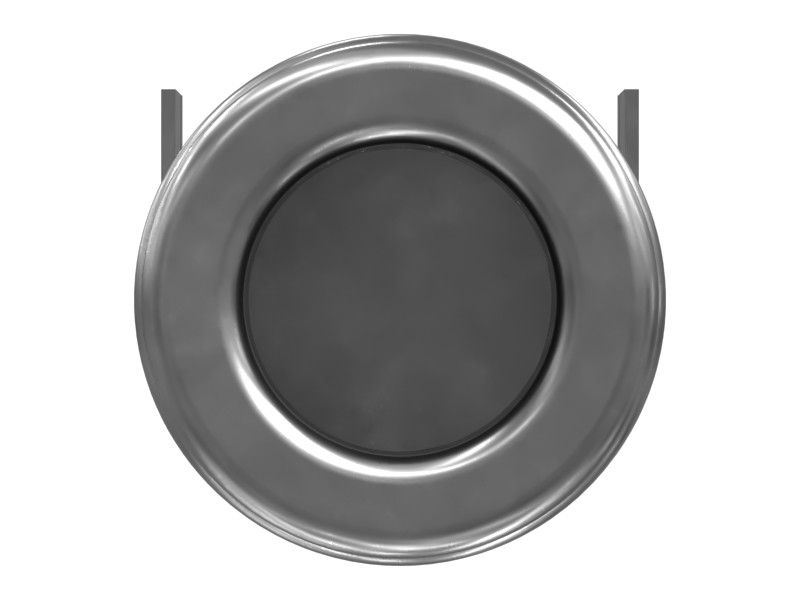

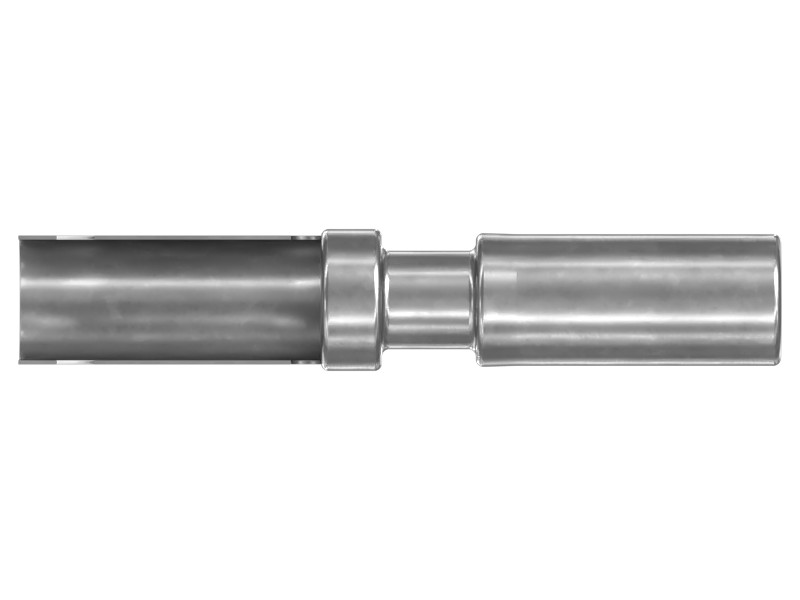

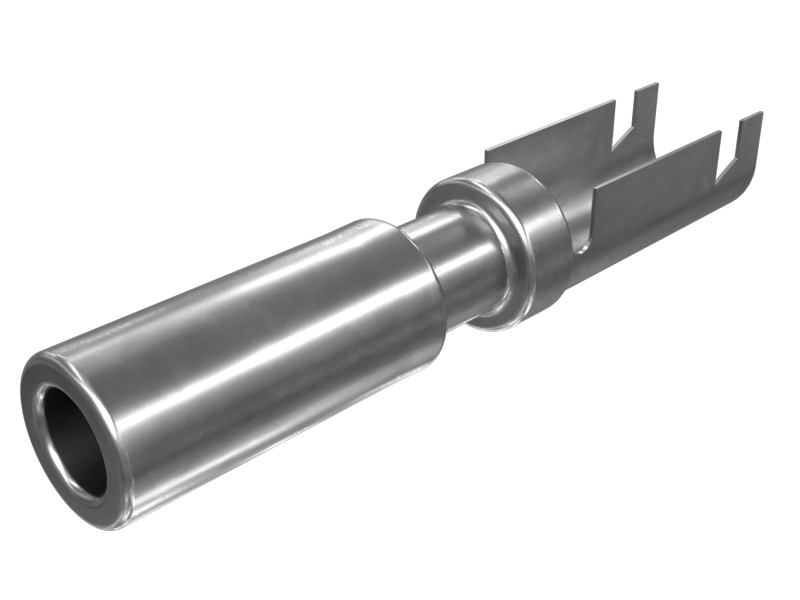

The Cat connector socket is for electrical connectors. Insert the Cat terminal pin into the Cat terminal socket on the mating connector to make an electrical connection.
Features
- 16-18 AWG
- Crimp-type connector socket
- Supports up to 15 amps of current
- Easy to connect and disconnect
Applications
Cat socket connectors provide reliable wire-to-wire or wire-to-device mating.
Specifications
| Diameter | 3.5 mm (0.14 in) |
|---|---|
| Length | 20 mm (0.8 in) |
| Gauge | 14-18 AWG |
| Size | 14 -18 AWG |
Compatible Equipment
- Generator Sets: 3516C, 3406B, 3406C, 3512B, G3516, 3512E, C9
- Track Loaders: 963, 824C, 953, 816F, 824G, 826G
- Compactors: CS-533C, C-15
- Engines: C32, C7, C27, C11, C15, C13, C18, C12
- Excavators: 3126, 3456, 330D L, 320C, 330 L, 637E, 657G, 3516B, 621G, 3512C, 345C, 3508B, 324D L, 325D L, 385C L, 350 L, 365C, 330C L, 637G, 416E, 637K, 365B, 325B L, 323D L, 345C L, 385B, 330C, 365C L, 325D, 320B, 325C, 330D, 3516E, 432, 345B
- Asphalt Pavers: AD45
- Skid Steer Loaders: 3126B
- Motor Graders: 120H, 12H, 140G, 3606, 140H, 140 GC
- Wheel Excavators: IT14G, M315, M320
- Dozers: D9L, D7H, D7R, D5H, D8N, D6R, D8L, D8R, D9N, D5M, D9R, D4E, D6R II, D8T, D7G, D6M, D11N, D10N, D10, D10R, D11R, D7R II, D8, D6G
- Mini Excavators: 307
- Wheel Loaders: 980G, 950G, 966F, 910, 962G, 836, R1700G, R1700 II, 972G, 928G, 980H, 950, 924GZ, RM500B, 992D, 992C, 988G, 988F, 988H
- Off-Highway Trucks: 793D, 785, 773E, 777D, 771D, 740, 777E, 773D, 789, 789D, 725, 785D, 735, 777, 730, 798 AC, 773, 793
