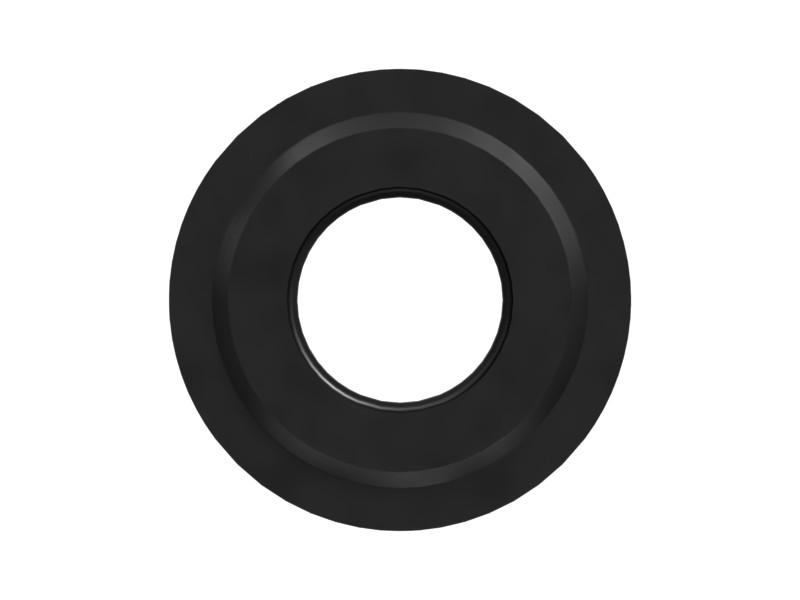

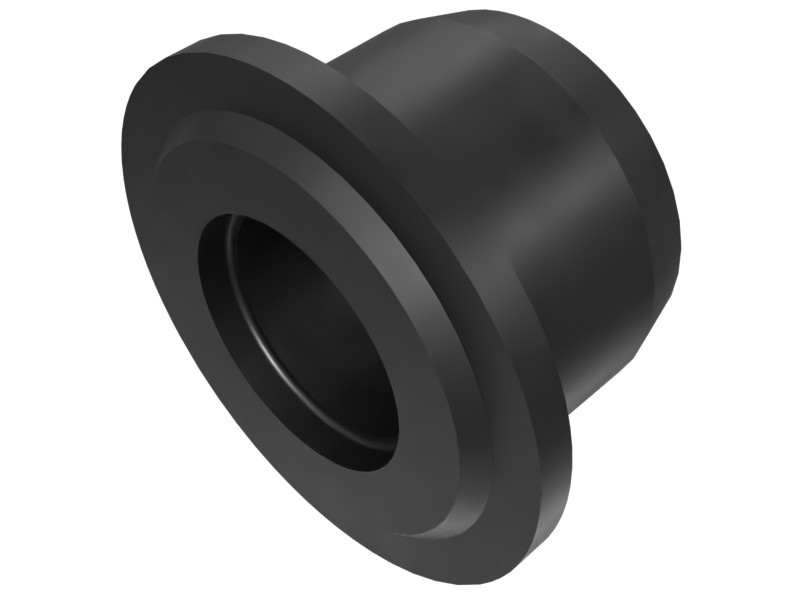

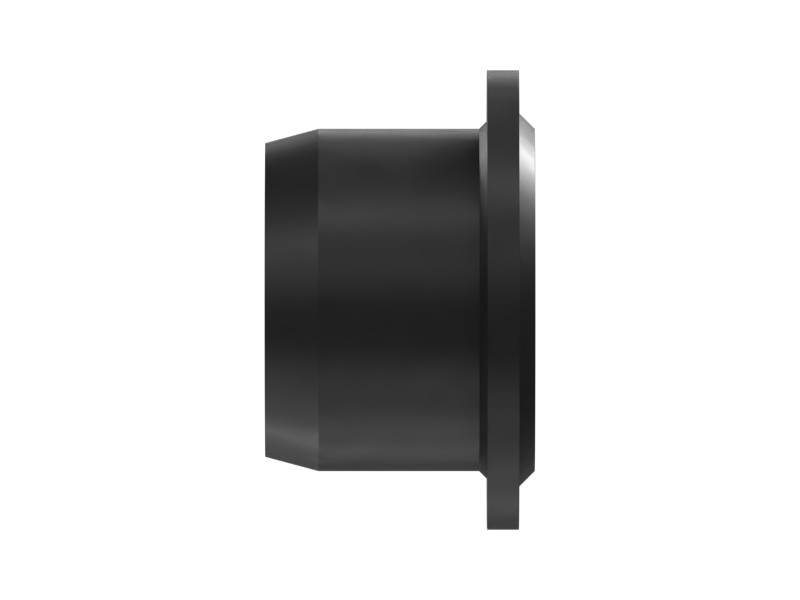

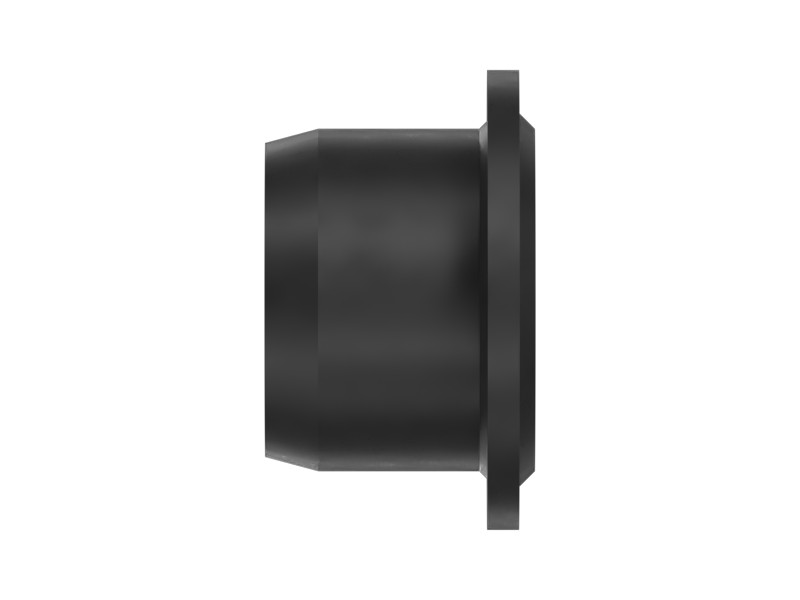

7N-7270 10.8 mm OD Spring Sleeve
Cat® 10.8 mm OD, 8.5 mm Long Spring Sleeve for Housing Governor
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Ferrule Inside Diameter | 6.5 mm (0.256 in) |
|---|---|
| Unique Features | No |
| Ferrule Outside Diameter | 10.8 mm (0.425 in) |
| Flange Thickness | 1 mm (0.04 in) |
| Type | Flanged Sleeve |
| Material | — |
| Inside Diameter | 7 mm (0.26 in) |
| Outside Diameter | 11 mm (0.43 in) |
| Overall Length | 9 mm (0.33 in) |
| Flange Diameter | 15 mm (0.57 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Generator Sets: 3406B, 3406C, C7.1
- Motor Graders: 140G, 12H, 140H
- Track Loaders: 953, 963, 824C, 826G, 824G, 816F
- Dozers: D7G, D8N, D6R, D5H, D7H, D4E, D6G, D7R, D8R, D6G2 LGP, D6G2 XL, D7G2
- Excavators: 350 L, 637E, 637G, 330 L, 330B
- Wheel Loaders: 972G, 966F, 980G, 910, R1300G
Additional information
| Machine Model | 12H, 140G, 140H, 330 L, 330B, 3406B, 3406C, 350 L, 637E, 637G, 816F, 824C, 824G, 826G, 910, 953, 963, 966F, 972G, 980G, C7.1, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D7G, D7G2, D7H, D7R, D8N, D8R, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
