Description

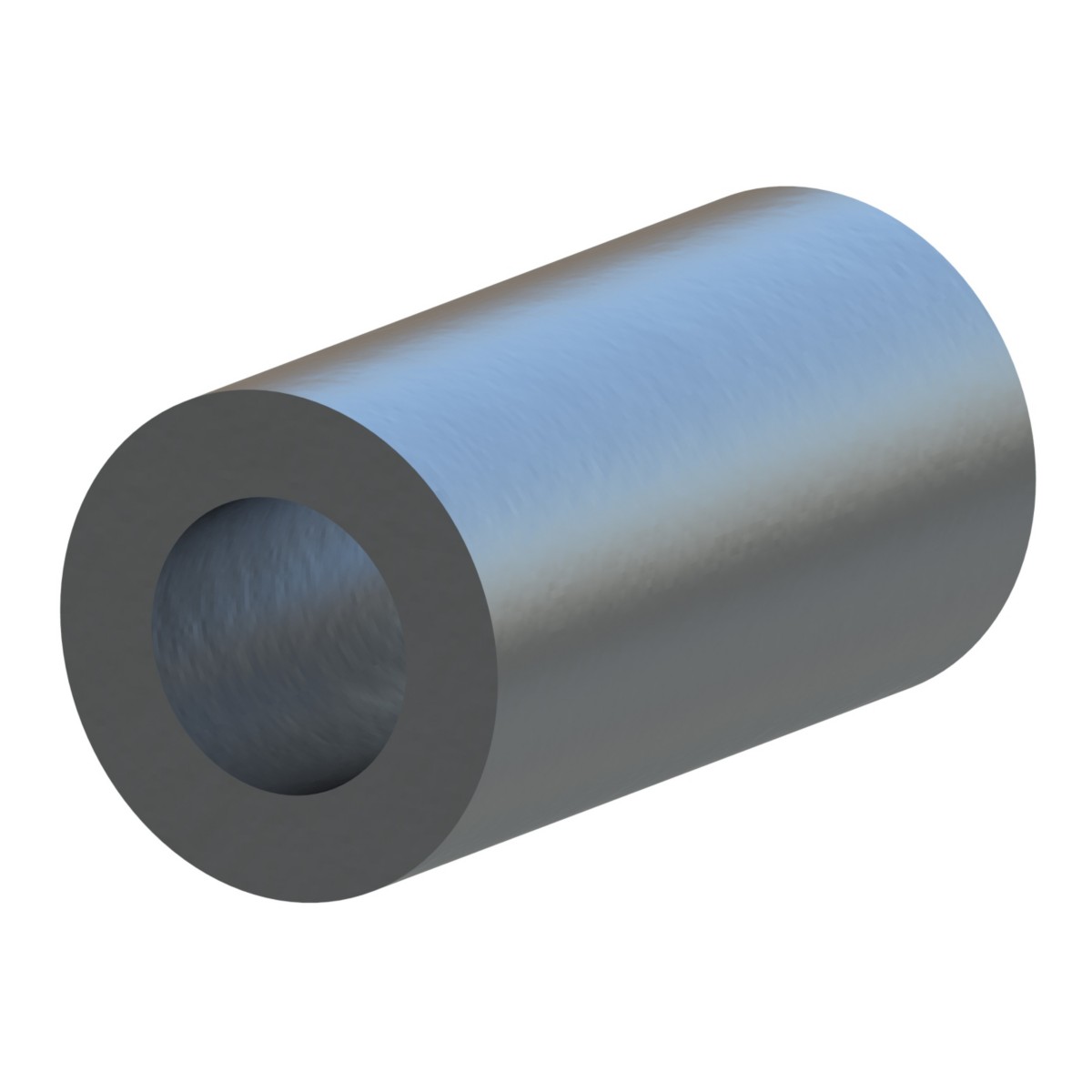

The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Some mounting groups use a separately supplied loose inner sleeve. These sleeves usually wrap around the central bolt joint.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Applications
The sleeve is one of the components of many types of isolation mounts.
Specifications
| Material | — |
|---|---|
| Ferrule Outside Diameter | 46.02 mm (1.812 in) |
| Ferrule Inside Diameter | 27 mm (1.063 in) |
| Cross Hole | No |
| Unique Features | No |
| Overall Length | 61 mm (2.402 in) |
| Thickness | 61 mm (2.402 in) |
| Outside Diameter | 46 mm (1.81 in) |
| Gasket Type | Flat Chamfered |
| Mounting Type | Sleeve |
| Sleeve Length | 61 mm (2.40 in) |
| Inside Diameter | 27.0 mm (1.06 in) |
Compatible Equipment
- Generator Sets: 3512E
- Track Loaders: 963, 953, 816F
- Dozers: D6R, D7H, D4E, D7R
- Excavators: 3512C
- Wheel Loaders: 966F, 972G
- Off-Highway Trucks: 785, 793, 798 AC, 793D, 789, 797F, 789D, 793F, 785D
