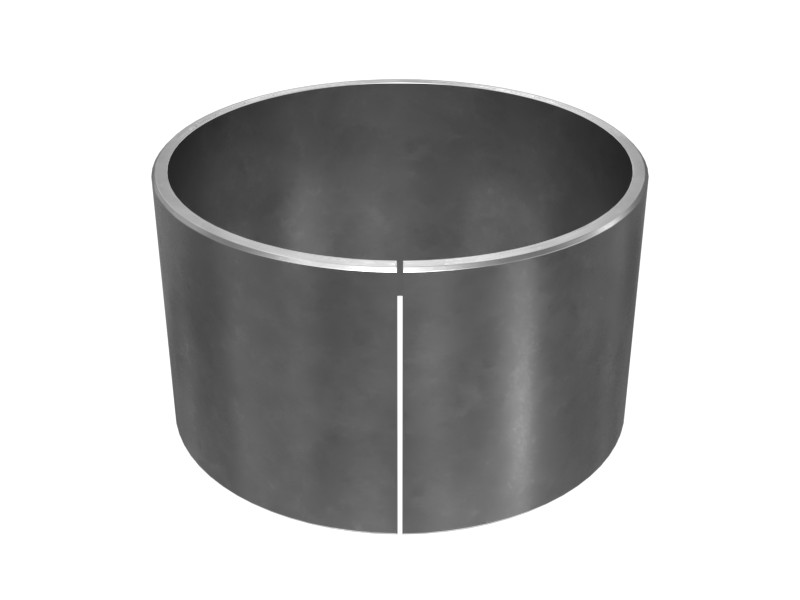

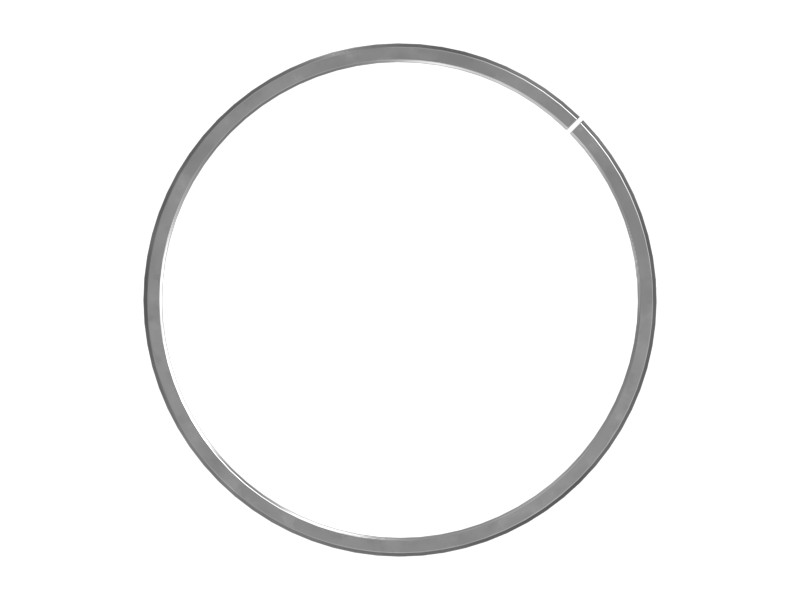

7N-5243 96.08 mm OD Sleeve Bearing
Cat® 96.08 mm OD, 55 mm Long Sleeve Bearing for Idler in Auxiliary Drive
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Ferrule Outside Diameter | 96.08 mm (3.783 in) |
|---|---|
| Unique Features | No |
| Ferrule Inside Diameter | 90.08 mm (3.546 in) |
| Material | — |
| Inside Diameter | 90 mm (3.55 in) |
| Outside Diameter | 96 mm (3.78 in) |
| Overall Length | 55 mm (2.17 in) |
| Internal Groove | Yes |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Generator Sets: 3512B, G3516
- Dozers: D11N, D11R
- Excavators: 3508B, 3516B
- Off-Highway Trucks: 785, 777D, 777, 789, 793
