Description

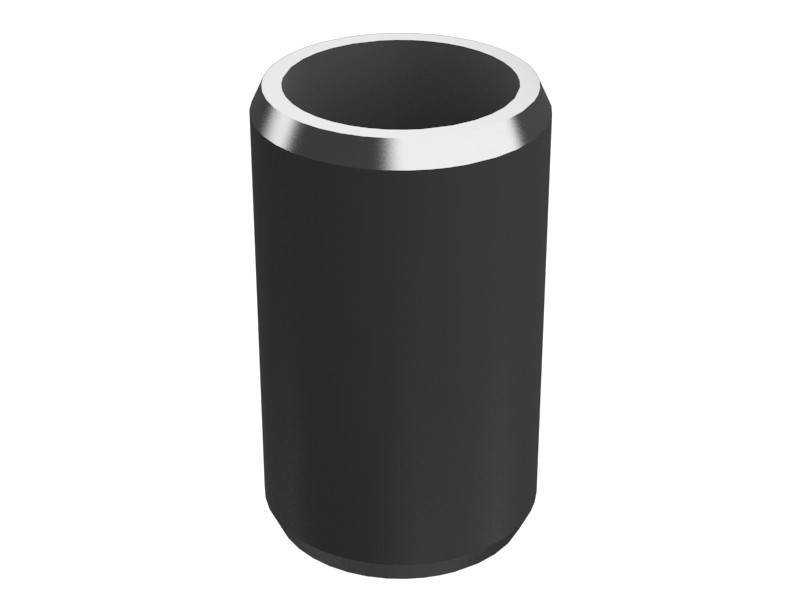

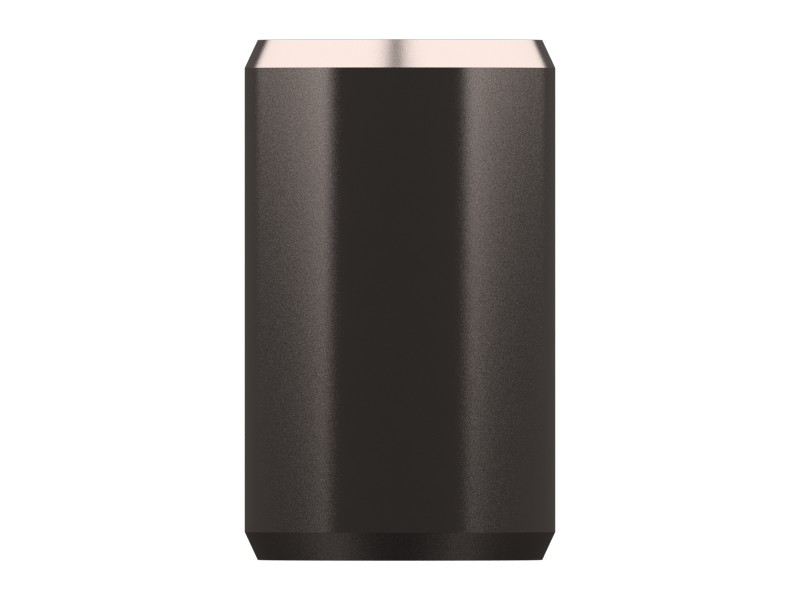

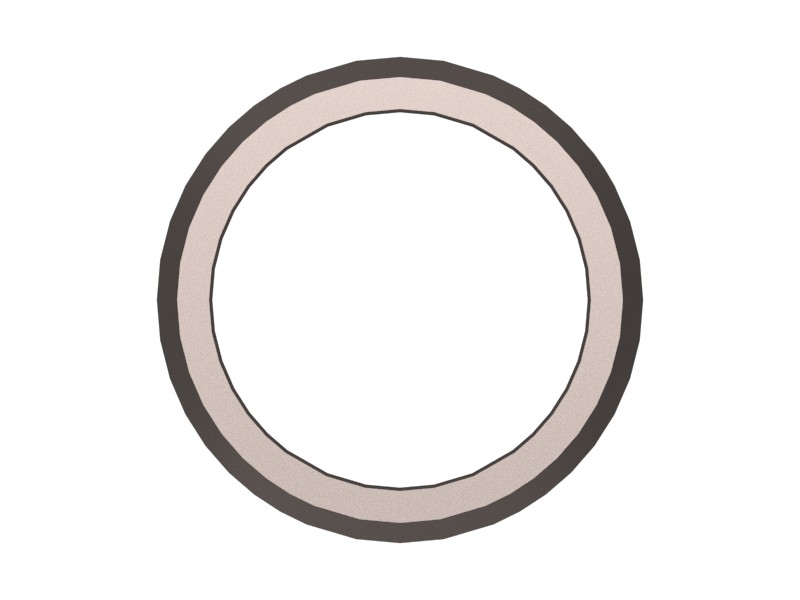

A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Inside Diameter | 7.5 mm (0.295 in) |
|---|---|
| Pin Length | 16 mm (0.63 in) |
| Pin Outside Diameter | 9.55 mm (0.376 in) |
| Pin Type | Solid |
| Pin Diameter | 10 mm (0.38 in) |
| Overall Length | 16 mm (0.63 in) |
| Material | — |
| Remarks | End Type: Lead Chamfer, Lead Chamfer |
Compatible Equipment
- Generator Sets: 3512B, 3516C, G3516C, 3512E, G3516, C4.4
- Track Loaders: 994K, 995
- Engines: C175-16
- Dozers: D11R, D11N
- Excavators: 3508B, 3512C, 3516B, 3516E, 6060
- Off-Highway Trucks: 789D, 785D, 796 AC, 785, 793F, 797F, 794 AC, 777D, 777, 789, 793, 793D, 798 AC
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6060, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 994K, 995, C175-16, C4.4, D11N, D11R, G3516, G3516C |
|---|---|
| Equipment Type | Excavators, Track Loaders, Dozers, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
