Description

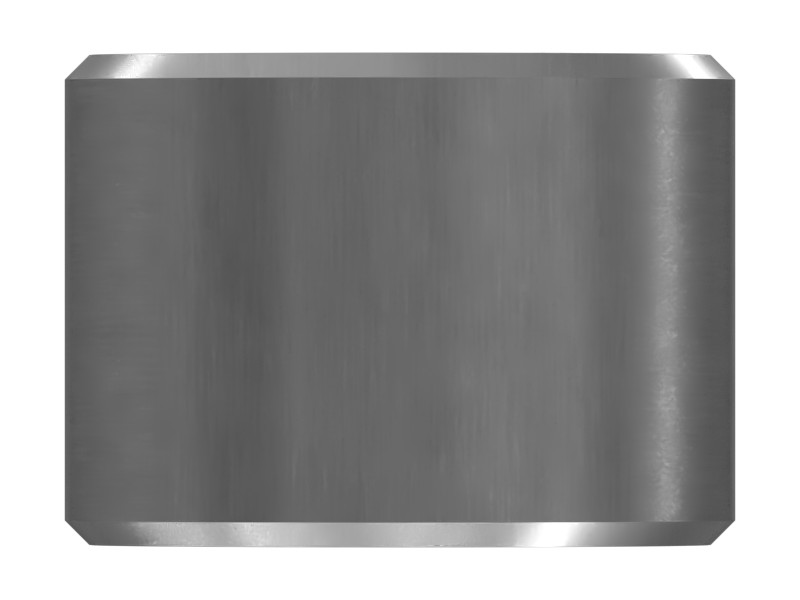

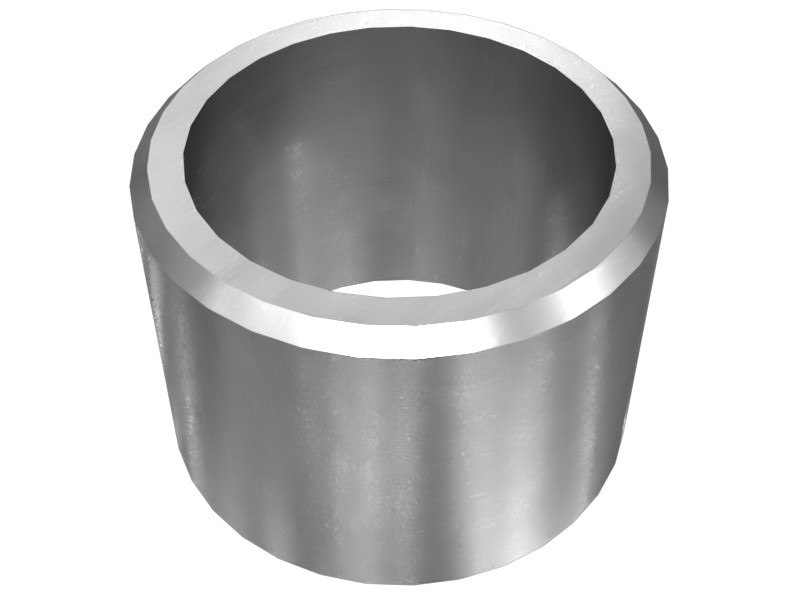

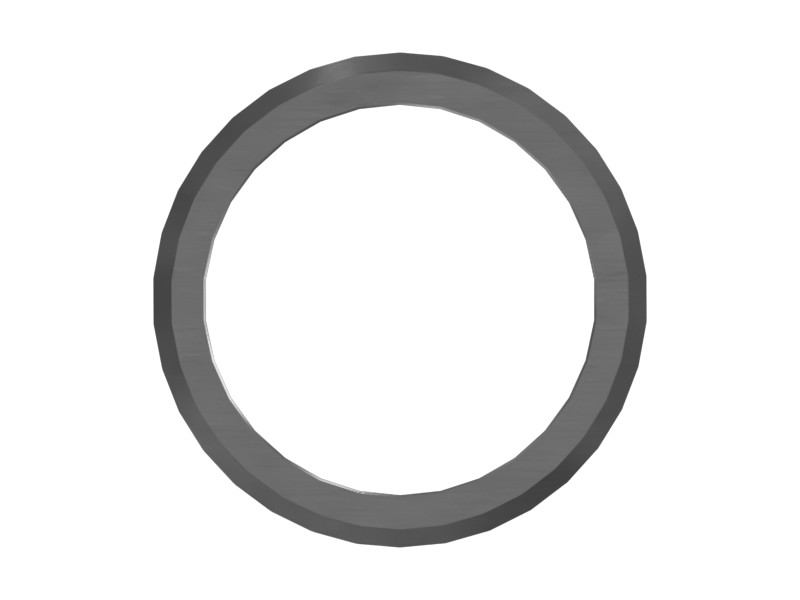

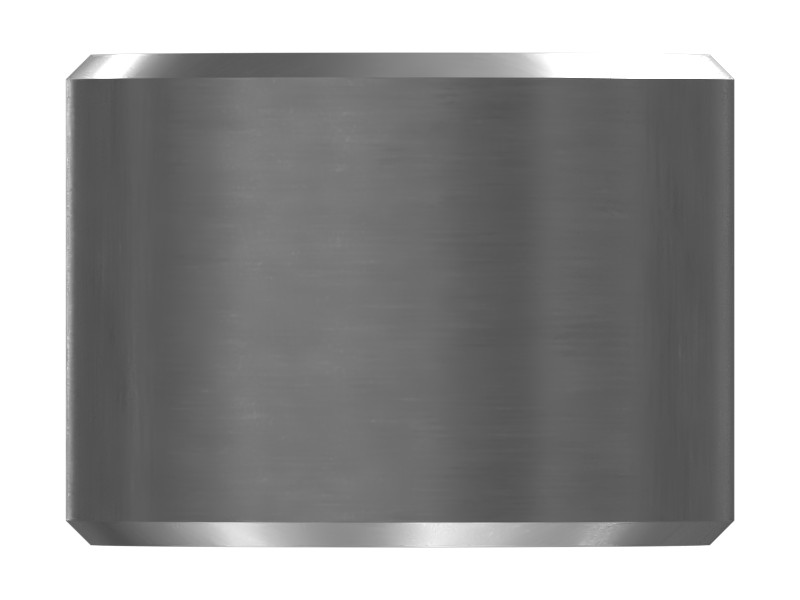

The hollow dowel pin is a rugged headless hollow straight pin with a tightly controlled diameter that is installed by pressing into one or two parts to transmit loads or fix the position of adjacent components.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Parts meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Remarks | Overall Length: 16, Pin Diameter: 21.9, Pin ID: 17.48, End Type 1: Chamfer, End Type 2: Chamfer |
|---|---|
| Material | Carbon Steel |
| Pin Type | Dowel Bushing |
| Pin Length | 16 mm (0.63 in) |
| Pin Inside Diameter | 17.48 mm (0.688 in) |
| Pin Outside Diameter | 21.9 mm (0.862 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B, G3516, G3516C, C4.4
- Track Loaders: 994K, 995
- Dozers: D11R, D11N
- Excavators: 3512C, 3516B, 3516E, 3508B, 6060
- Off-Highway Trucks: 777D, 793, 785, 793D, 789, 785D, 789D, 777
